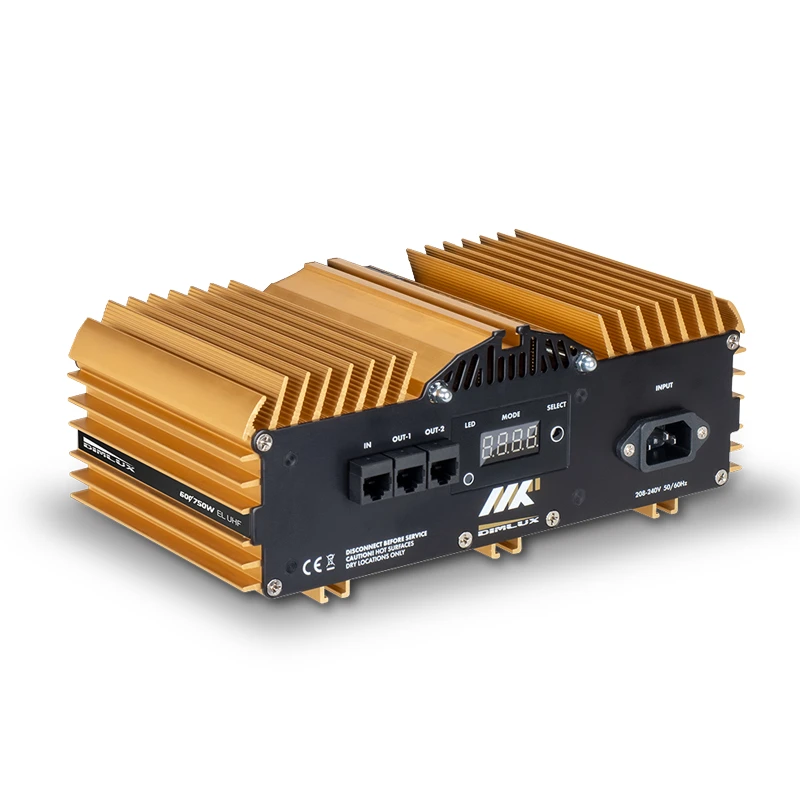

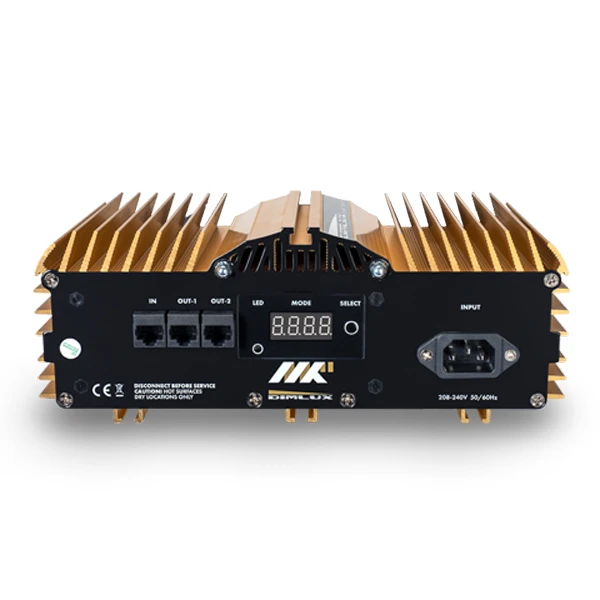

DIMLUX - ELECTRONIC BALLAST XTREME SERIES MKII DIMMABLE 7 WATTAGES | 600W-400W
Cod. 2542
Brand: DIMLUX
DIMLUX IS THE QUIETEST SYSTEM, THERE ARE NO VIBRATING OR BUZZING NOISES.
In the field of digital ballasts, Dimlux is the quietest system, there are almost no vibrations or humming...
Standard price
€211,37 VAT included(22%)
Recalculation in progress … DIMLUX IS THE QUIETEST SYSTEM, THERE ARE NO VIBRATING OR BUZZING NOISES.
In the field of digital ballasts, Dimlux is the quietest system, there are almost no vibrations or humming noises and no buzzing and/or ticking in the relay. The Dimlux can be used as a normal (digital) ballast in a normal system with relays and timers. However, if the Dimlux is used in combination with the Dimlux Maxi Controller, you will achieve maximum performance and be able to use all Dimlux features to their full advantage.
The Dimlux Xtreme Series 600W-400W 230V Dim Button comes standard with a 0.6 m Interlink cable. If a longer cable is required, it must be ordered separately.
Technical Specifications Dimlux Extreme Series MKII 600W-400W Ballast:
- Dimmable to 7 different wattages:
- Soft Off
- 250 Watt
- 320 Watt
- 400 Watt
- 440 Watt Boost 10% at 400 Watt
- 480 Watt Boost 20% at 400 Watt
- 600 Watt
- 690 Watt 15% Overdrive with 600 W lamps 20% Overdrive with 400 W lamps
Features Ballast Dimlux Extreme Series MKII 600W-400W:
- Suitable for: 600W 400W
- Output: 250-690W
- Connection: 230V
- Overdrive: 15% Overdrive with 600W lamps and 20% Overdrive with 400W lamps
- Soft Start: Low start for use without Maxi Controller and Zero start for use with Maxi Controller
- Soft Dim: Yes
- Dim Button: 7 dim levels and off mode. Can be switched on and off via Maxi Controllers and also with continuous dimming
- Ultra High Frequency: No
- Diagnostic display: Yes
- Included: 4 m cable and plug
Comes standard with a 0.6 metre Interlink cable for connection to the Dimlux Maxi Controller.
If a longer cable is required, it must be ordered separately.
Contains:
1 x ballast DIMLUX XTREME SERIES MKII 600W-400W DIM 7 Powers
1 x 4m power cable
1 x 0.6m interlink cable
-
