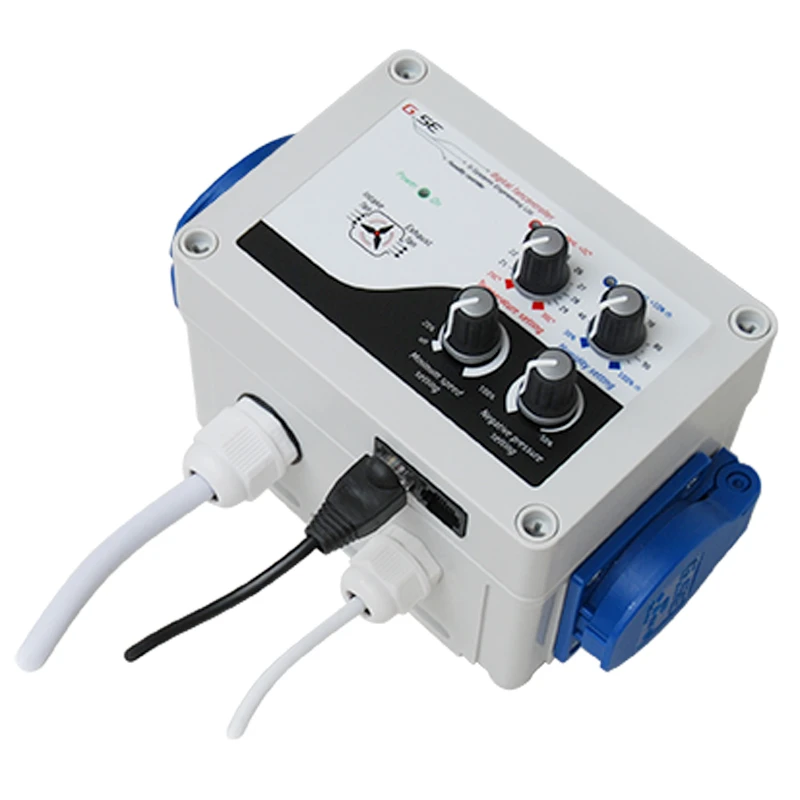

The digital extractor controller is a humidity- and temperature-dependent speed controller for rooms with incoming and outgoing air flow. The extractor controller keeps room humidity and temperature constant and under negative pressure to prevent odours from escaping. It can be easily controlled by adjusting the required humidity, temperature, min. speed and negative pressure in your room on four knobs. Three low-brightness LED lights indicate the control status and power position. This fan controller can also be used as an air outlet controller only on two fans if there is a natural air inlet mode.
The variant with 2xRJ45 connector offers a 0-10 V or PWM (pulse width modulation) signal for EC fans.

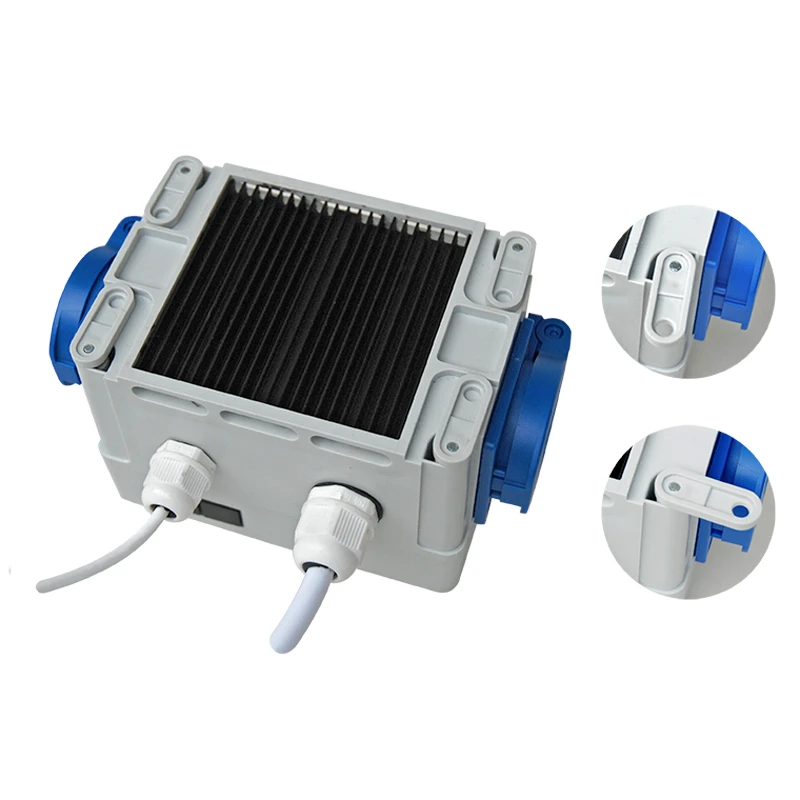

Two internal temperature sensors prevent the heat sink and processor parts from overheating. However, in the event of overheating, the variable control switches off and a safety relay bypasses the supply air fan. The controller thus prevents a total ventilation failure and protects your installations.

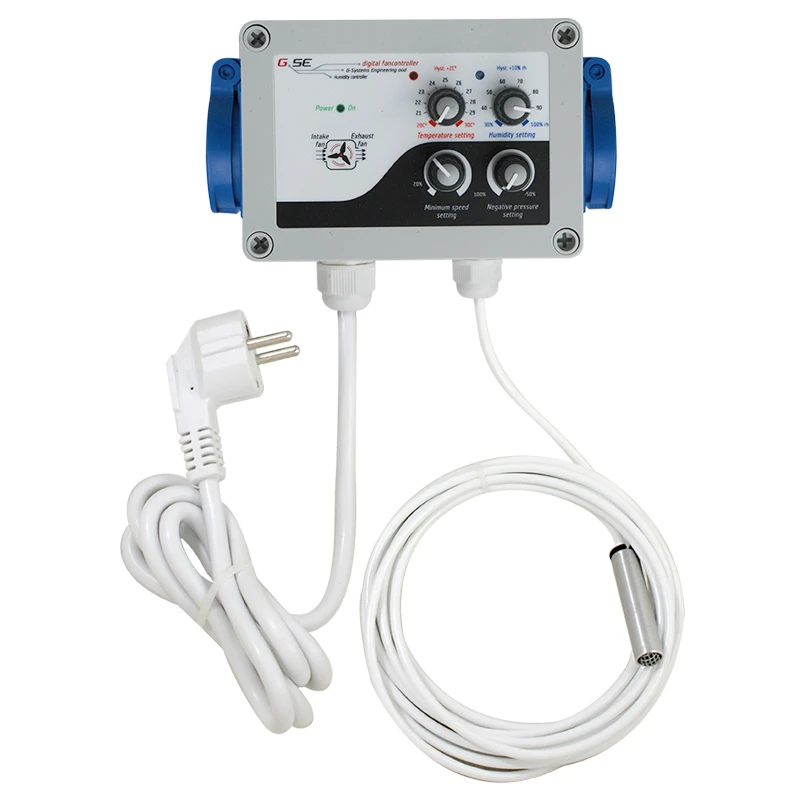

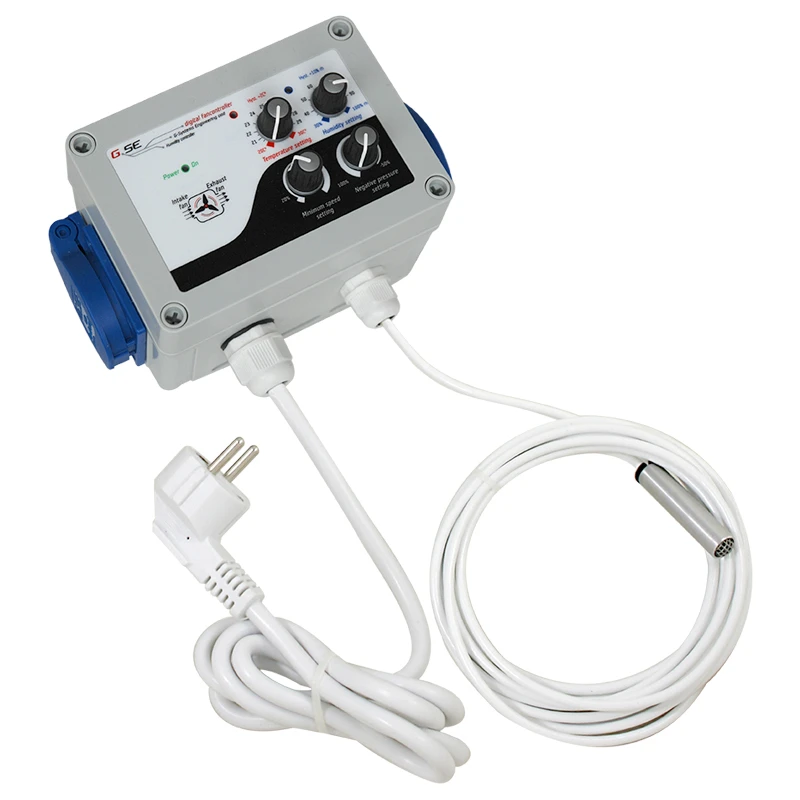

The controller arrives as a finished part and is ready for use. This reliable extractor controller is equipped with a water-resistant sealed cover, flip-top plugs and a low voltage sensor, making it perfect for humid environments. The sensor comes with a 4-metre long cable. The controller comes with a 1.5 metre power cable and a 4 metre sensor cable. This can be extended up to 10 metres if required.
Dimensions and technical data: Case: WxHxD = 130x92x105mm Controller: WxHxD = 160x130x105mm Designed for: 10A / 2x1'150W / TRIAC 2x16A Voltage: 230V/50HzDigital sensor 5V Measures temperatures from -55°C to +125°C (-67°F to +257°F) Accuracy of 0.5°C from -10°C to +85°C Humidity accuracy +/-3%UR max tolerance @55%UR Protection class IP54
