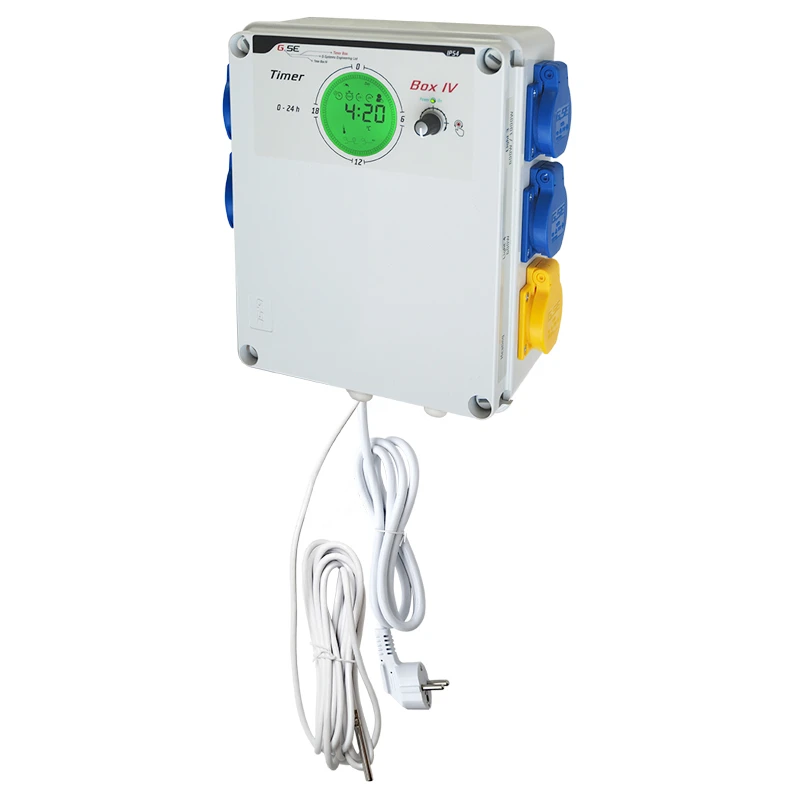

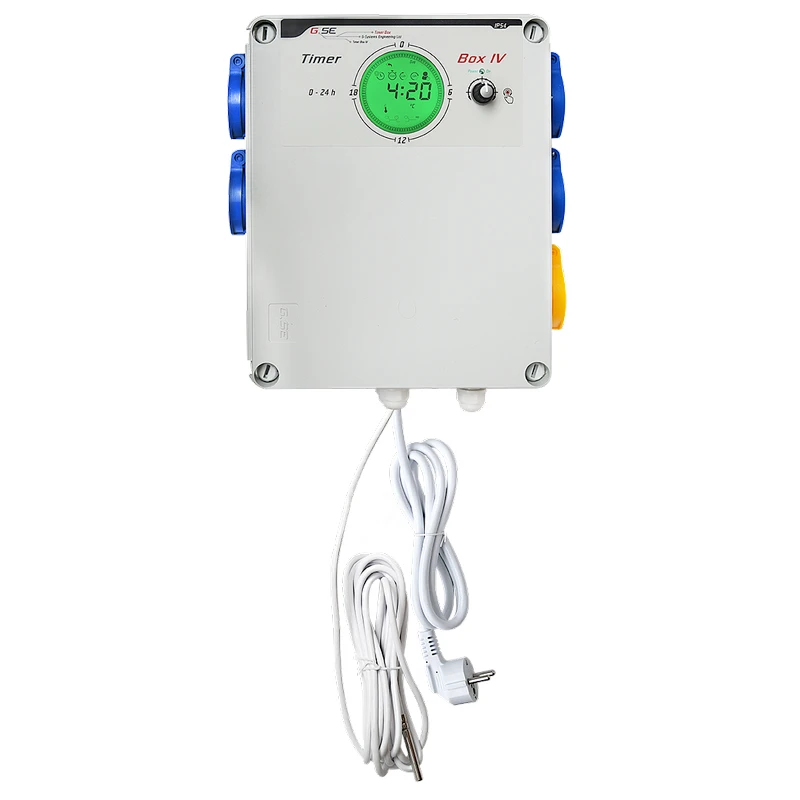

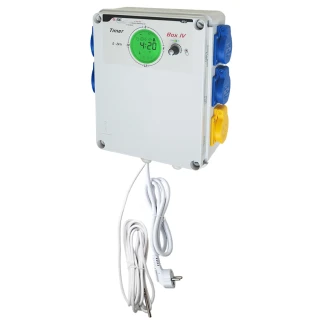

GSE - TIMER BOX IV ELECTRICAL BOX | 4x600W + HEATING

The switchboard with timer IV is used to switch several inductive loads such as high-pressure lamps with a high inrush current on and off simultaneously. The Switchboard IV has a digital display based on a 24-hour mechanical timer. With a left-right encoder button and press, it is an easy way to set the clock even faster than a mechanical timer. 48 segments show the current time, the programmed duration, the daily counter as well as the room temperature at a glance.

The clock has a pre-programmed 12- or 18-hour cycle, a user-defined hour/minute can be set. The clock has a day counter and a temperature probe for an emergency stop in case of overheating to protect your plants. The power LED will indicate an emergency stop after your next return. In addition to the specific on-off function for inductive loads, the Timer Box 4 has a 0-10V or PWM output for dimmable electronic ballasts or LED lamps. This signal dims the lights when the temperature rises or functions such as sunrise/sunset are possible. When the lamps are switched off, a heating socket is activated.

There are two ways to manually switch the current status to ON/OFF. The first forever, the second until the next cycle. This will avoid forgetting to reset the time to automatic mode when leaving the growroom and damaging the plants.

In the event of a power failure, an internal battery will maintain all settings and the current time. (10-year battery life)

The Switch Cabinet with Timer IV is supplied as a finished product and is ready for use. This reliable timer control panel has an IP54 sealed cover (the protection class offers protection against water splashes from all sides), plugs with flip-top covers, and a low-voltage temperature sensor, making it perfect for wet environments. The controller comes with a 1.2 metre power cable and a 4 metre sensor cable. This can be extended up to 10 metres if required.

Features:
- 1-channel 24-hour timer
- Dimmable green display
- Designed for inductive loads
- 0-10V or PWM output
- Temperature display
- Emergency stop temperature monitoring
- Dimming - sunrise sunset
- Daily counter
- Time format 0-24h or 12:00/PM
- Temperature format °C or °F
- Heating release when light off

Technical specifications:
Housing: WxHxD = 200x255x95mm
Timer box: WxHxD = 230x300x110mm
1 pole 1x10A 2'300W
Volt: 230V/50Hz
Degree of protection: IP54
