MILWAUKEE - MC740 PRO EC CONTROLLER AND PUMP KIT
Cod. MC740KIT
Brand: MILWAUKEE INSTRUMENT
The Milwaukee MC740 PRO conductivity (EC) controller and pump enables automatic measurement and regulation of EC levels.

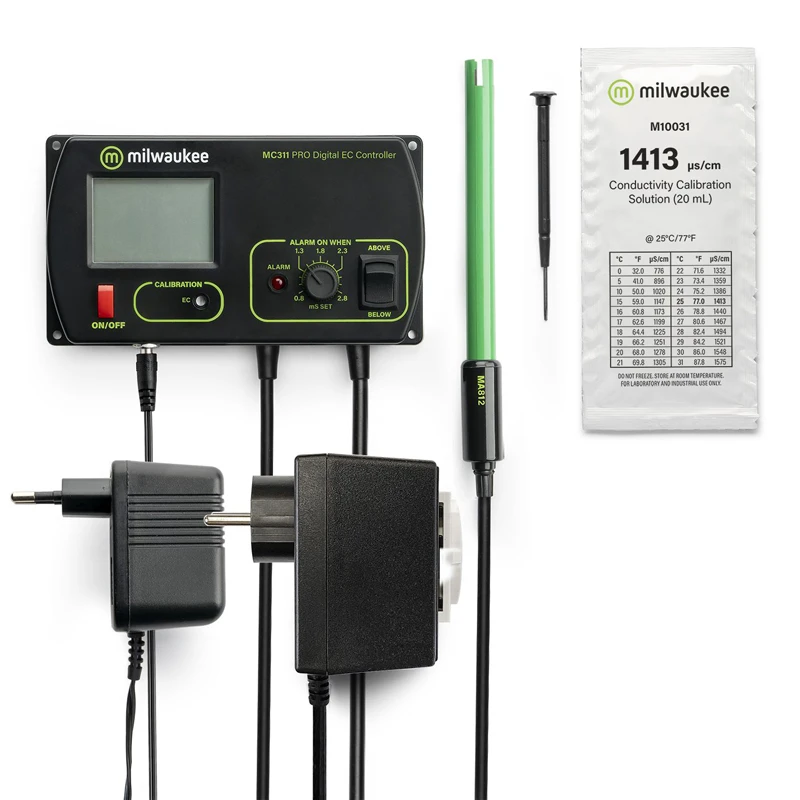

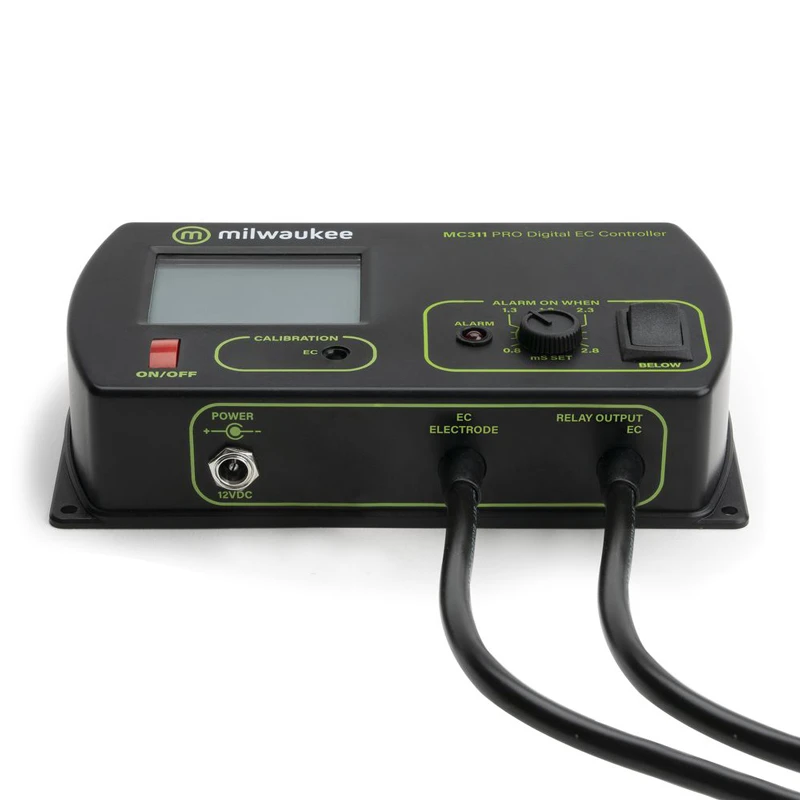

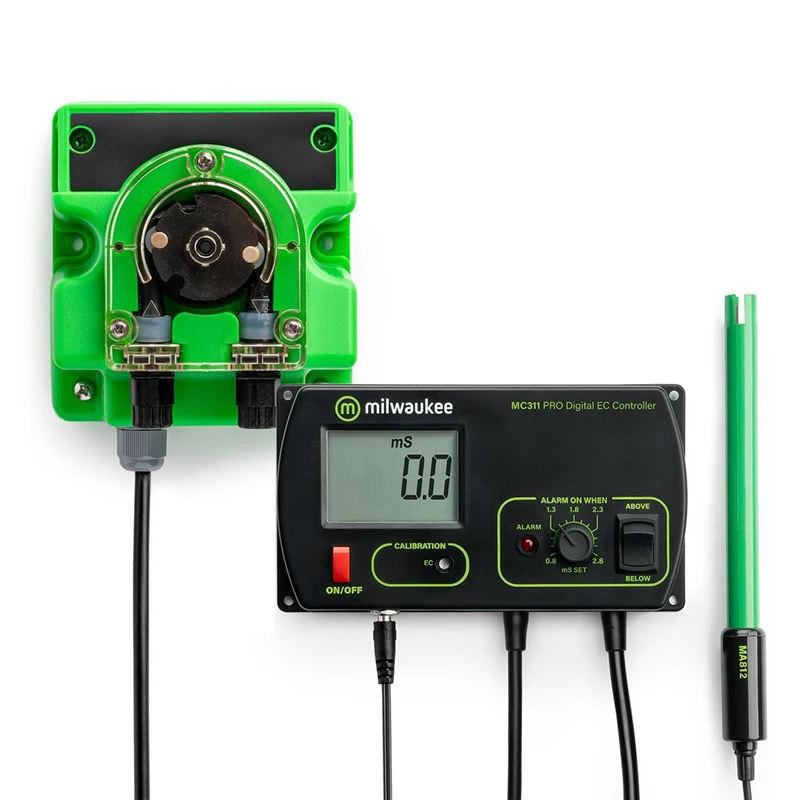

The MC740 kit includes the MC311 EC controller and the MP810...
Standard price
€334,74 VAT included(22%)
Recalculation in progress … The Milwaukee MC740 PRO conductivity (EC) controller and pump enables automatic measurement and regulation of EC levels.
The MC740 kit includes the MC311 EC controller and the MP810 metering pump to automatically monitor and optimise EC levels. Simply set the EC parameters and let the Milwaukee EC controller and pump do the rest.
The Milwaukee PRO EC controller kit is preferred by people who want to programme their own test programme when they have the continuous need to maintain levels. Common uses are nutrient tanks.
The Milwaukee PRO EC controller and pump offer:
PRECISION
The Milwaukee PRO EC controller offers an accuracy of up to ±2% of full scale.
AUTOMATION
The controller provides a control range from 0.0 to 10.0 mS/cm with alarms that are triggered when readings are above or below setpoint.
COMPATIBLE DOSING PUMP

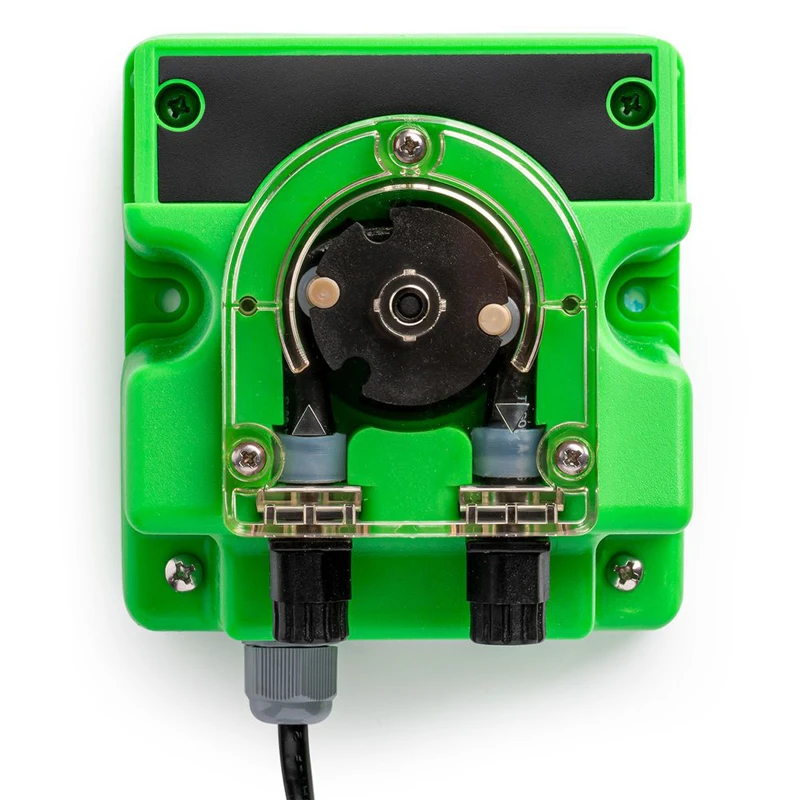

The Milwaukee MP810 dosing pump (designed specifically for use with the MC311) is included in the kit.
EASY INSTALLATION

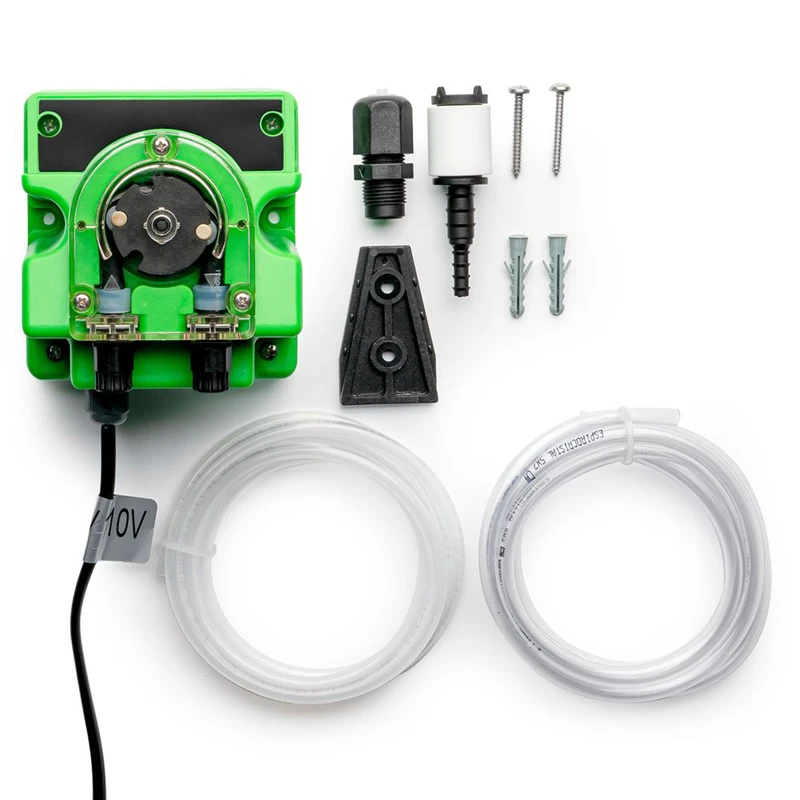

The MC740 EC controller and pump kit comes with a complete installation kit that includes a probe holder.
Features MC740 controller and pump kit:

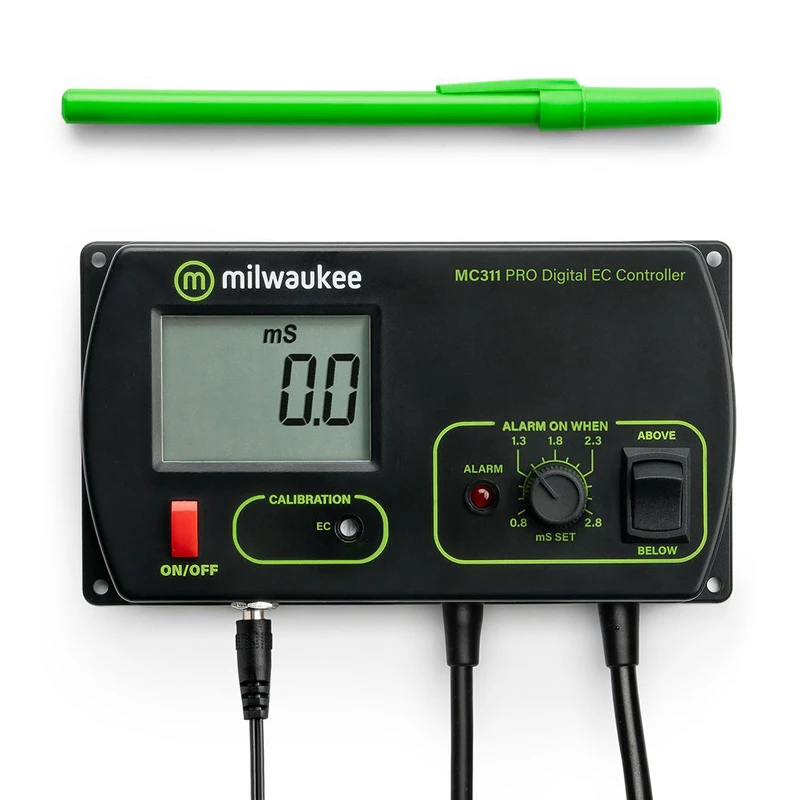

- Easy-to-read current results with large digital LCD display and LED visual alarm
- Accuracy to ±2% full scale (0.0 to 10.0 mS/cm) with user selectable high/low set points
- Simple one-point calibration for increased accuracy with manual trimmers for easy adjustment
- Wired MA812/2 EC probe included
- 6.5 ft probe cables for greater flexibility during testing
- 12 VDC power supply
- The pump provides a maximum pressure of 1.5 bar or 50+ feet of main pressure with a dosing flow of 0.16 GPM.
Specifications MC740 controller and pump kit:
-
Range: 0.0 - 10.0 mS/cm
-
Resolution: 0.1 mS/cm
-
Accuracy: ±2% F.S.
-
Calibration: manual, 1 point
-
Adjustment point: 0.8 to 2.8 mS/cm
-
Alarm: active when reading is above or below setpoint
-
Temperature compensation: Automatic, 0 to 50°C
-
EC Electrode: MA812/2 (included)
-
Environment: 0 to 50°C / 32 to 122°F; RH max. 95%.
-
Power supply: 12 VDC adapter (included)
-
Power supply driver: 115 VAC, 2 A, 60 Hz or 230 VAC, 1 A, 50 Hz
-
Mounting kit (included)
-
Dimensions: 5.9 x 3.2 x 1.35 inches
-
Weight: 6.3 ounces (meter only)
-
Maximum. Flow: 0.6 L/h
-
Maximum. Pressure: 1.5 bar
-
Compression tube: Santoprene
-
Ext. Tube connection: 6 mm
-
Power supply: 240 VAC, 50-60 Hz or 110 VAC, 60 Hz
-
Power consumption: 0.42 W
-
Dimensions: 100 x 106 x 108 mm
-
Weight: 17.6 oz.
-
