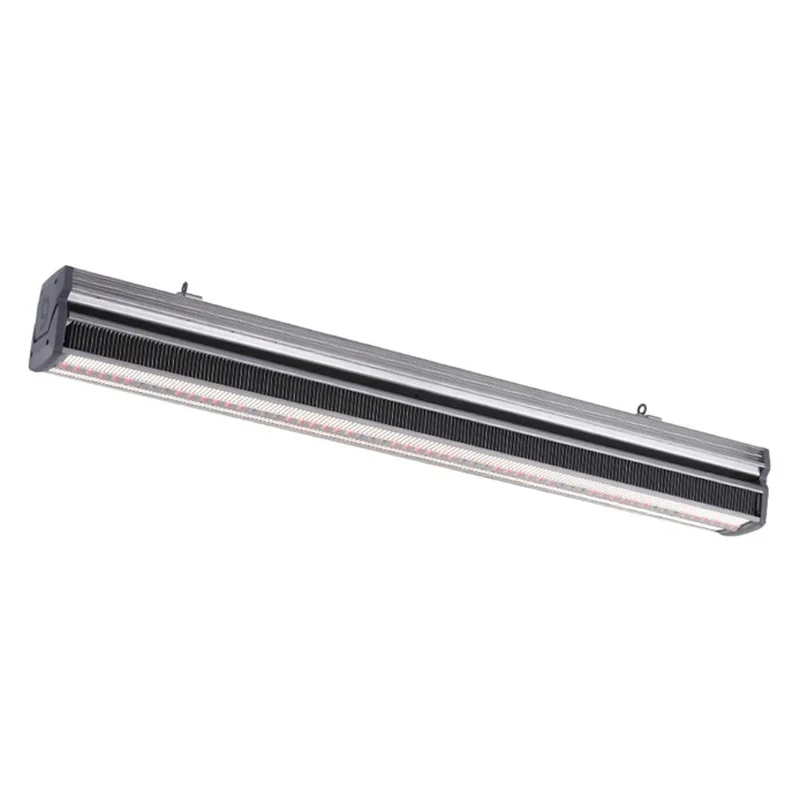

THINKGROW - MODEL-I PLUS | 720W | PPF 1944μmol/s 4 CHANNELS

The ThinkGrow Model-I Plus is a high-performance PPF (1944μmol/s) LED lamp designed for single-level indoor and greenhouse cultivation.
Thanks to its compact design with integrated driver, the Model-I Plus combines energy efficiency, ease of installation and a comfortable working environment for operators.

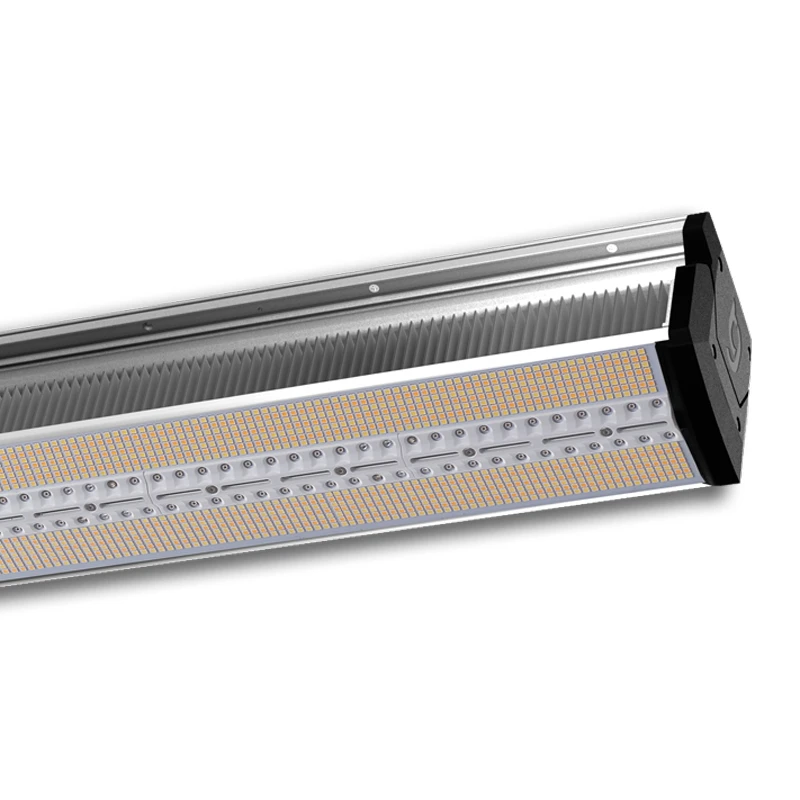

The unique V-shape panel structure optimises light distribution, reducing the minimum distance required from the canopy and minimising light energy loss.

Equipped with four adjustable spectrum channels - UV, White, Red and Far Red - the Model-I Plus allows you to customise the ideal light recipe for each growth phase (function available with TrolMaster HCS-2 / HCS-3 controllers).
With the ability to control up to 256 lamps per channel, the system offers complete and uniform control in large greenhouses and plants.

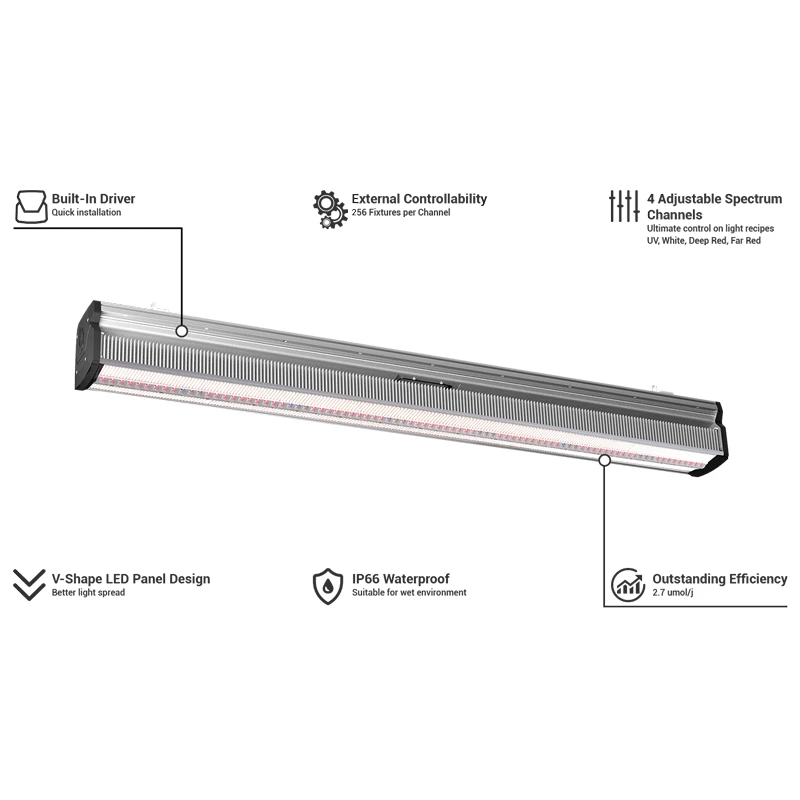

Key features

• High luminous efficacy: up to 2.7 μmol/J

• PPF 1944μmol/s

• 4-channel adjustable spectrum: UV, White, Deep Red, Far Red

• Compatible with TrolMaster HCS-2 / HCS-3 controllers

• Compact design with integrated driver, ideal for greenhouse installations

• Optimised light distribution with V-shape panel

• Supports up to 256 lamps per channel

• Ideal for greenhouses and single-level indoor environments

• Plug & Play for quick installation

Package Contents

• 1 × Model-I Plus main body with integrated driver

• 1 × Waterproof power cable

• 1 × RJ12 communication cable (controller)

• 1 × Suspension/mounting kit

Technical Specifications

• Light efficiency: up to 2.7 μmol/J

• Spectrum channels: UV / White / Deep Red / Far Red

• Control compatibility: TrolMaster HCS-2 / HCS-3

• Maximum number of controllable lamps: 256 per channel

• LED design: V-shape panel with integrated driver

• Input voltage: autosensing 100-277 V AC

• Average lifetime (L90): > 50,000 hours

• Degree of protection: IP65

• Operating environment: 0-40 °C / ≤ 90 % RH

Controllability and spectrum

• 4 independent channels: UV, White, Deep Red, Far Red

• Control via TrolMaster HCS-2 / HCS-3 controller

• Group control (up to 256 units) per channel

• Dynamic programming for vegetative and flowering phases

Advantages

• Precise spectrum and light intensity control

• Increased uniformity of light distribution

• Suitable for professional greenhouses and low-profile indoor installations

• High energy efficiency and long lifetime

• Seamless integration with TrolMaster automation systems
