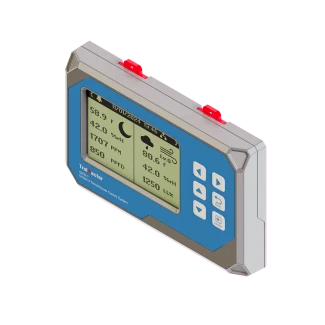

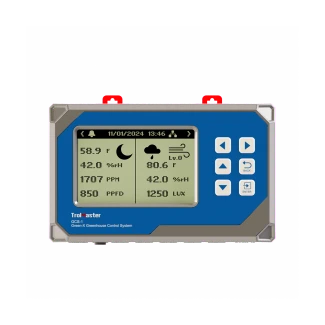

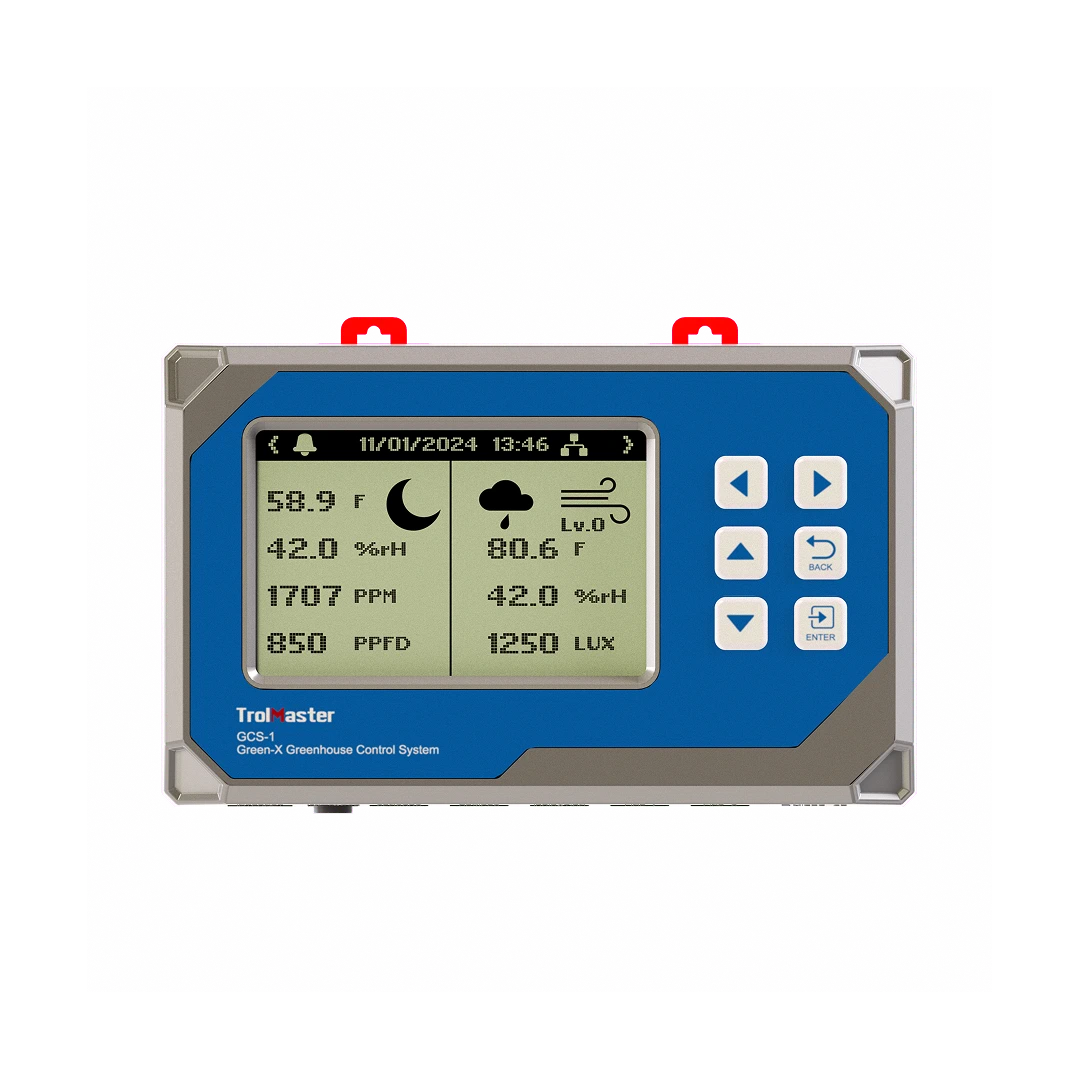

TROLMASTER - GREEN-X GREENHOUSE CONTROLLER GCS1 4-IN-1 (TEMP, HUMI, LIGHT, CO2)

The TROLMASTER - GREEN-X CONTROLLER GCS-1 is an intelligent greenhouse control system designed to offer comprehensive environmental monitoring and automated management of key cultivation parameters.

Perfect for local and remote management of greenhouses, the GCS-1 allows you to optimise climate, irrigation, lighting and CO₂ with maximum precision.

Thanks to its modular architecture, the GCS-1 controller can integrate with multiple sensors and modules to provide full automation and remote control, reducing energy and water wastage and improving crop yields.

Key features

• Integrated control of climate, irrigation, lighting and CO₂.

• Remote management and alerting via WEBAPP

• Real-time monitoring of temperature, humidity, light and ventilation

• Scalable and modular system, suitable for greenhouses of all sizes

• Intelligent climate automation based on environmental data

• Simple interface for remote configuration and management

GCS-1 COMPATIBLE SENSORS AND MODULES

The GCS-1 system supports a full range of advanced sensors for precise and customised environmental control. Each module is designed to provide accurate and reliable real-time data.

MBS-GH (Temperature/Humidity/Light/CO2 ) supplied in kit.

High precision 4-in-1 sensor for continuous monitoring of environmental parameters inside the greenhouse.
Maximum 1 piece per set.

MBS-WS (Weather Station)

Detects outside temperature and wind speed, enabling the system to automatically adjust blinds and windows according to weather conditions.
Maximum 1 piece per set.

MBS-PAR (PPFD Sensor)

Measures photosynthetically active radiation (PAR), optimising artificial lighting and plant growth.
Maximum 1 piece per set.

MBS-SD (Smoke detector)

Safety sensor that detects the presence of smoke or fire in the greenhouse, with immediate warning.
Maximum 1 piece per set.

AMP-3 (pH / EC / Temperature)

Analysis module for monitoring pH values, electrical conductivity (EC) and temperature in nutrient solutions.
Max. 1 piece per set.

DFM-1 / DFM-2 / DFM-3 (Digital Flow Meters)

Digital sensors for precise measurement of water flow in irrigation systems, essential for efficient use of resources.
Maximum 1 piece per set.

WCS-1 / WCS-2 / WCS-3 (Water Content / EC / Temperature)

Sensors that measure moisture and conductivity in the substrate, optimising irrigation and nutrient management.
Maximum 8 pieces per set.

WD-1 (Water Detector)

Safety sensor for detecting leaks or flooding, protecting equipment and crops.
Maximum 2 pieces per set.

Package contents

• 1 × Greenhouse Controller (GCS-1)

• 1 × 4-in-1 Temperature/Humidity/Co₂/Day-Night Sensor (MBS-GH)

• 1 × Set of RJ12 cables for light connection

• 1 × 12 V power supply adapter

• 1 × RJ12 T-Splitter

Device capacities:

• Temperature device stations: max. 4 pcs. per set

• Humidity device stations: max. 4 pcs. per set

• CO₂ device stations: max 2 pcs per set

• Programme device stations (Timer): max 2 pcs per set

Irrigation capacity (up to 96 outputs):
Control board and device stations: max 8 pcs per set

• 24VDC control board (OA6-24): 6 outputs per device

• 24VDC control card (OAT-24): 12 outputs per device

• 110VAC control card (OA6-110): 6 outputs per device

• Program device station 100-240VAC (DSP-1/2): 1 output per device

• Dry contact station (DSD-1/2): 1 output per device

Motor control capability

• AC and DC motor controllers: max 4 pcs per set

EC fan control capability:

• EC fan control adapter(EFC-1): max 4 pcs per set

Lighting control capability

• 2 lighting channels (Line 1 and 2): max 256 lamps per channel
  (number variable depending on lamp brand or model)

LCD display: 256 × 160 resolution

Power supply:

• Input voltage: 100-240VAC, 50/60Hz

• Output current: 3A

Working environment:

• Operating temperature: 0-50 °C (32-122 °F)

• Operating humidity: 5-95% RH
