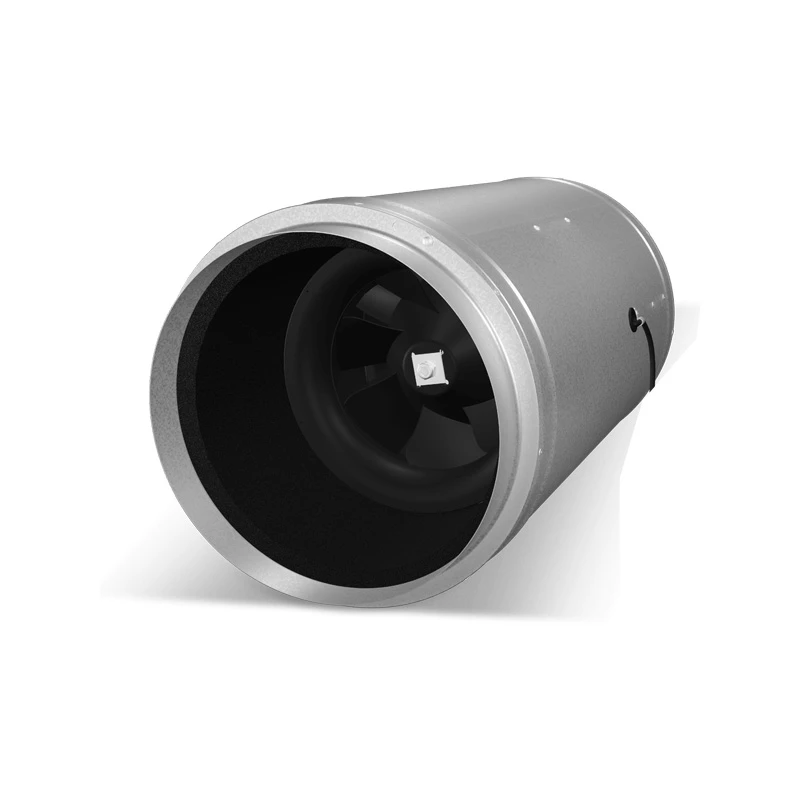

CAN-FILTERS - ISO-MAX SILENCED VACUUM CLEANER | DIAMENTER 315 - 3260 MC/H
Cod. 733153260
Brand: CAN-FILTERS
Iso-Max is a silenced extractor fan produced by Can-Fan BV that combines the newly developed Max-Fan extractors and Can-Filters' high efficiency silencers in one product. Max-Fan vacuum cleaners are...
Standard price
€644,15 VAT included(22%)
Recalculation in progress …
Iso-Max is a silenced extractor produced by Can-Fan BV which combines in a single product the newly designed Max-Fan exhausters and the high efficiency silencers of Can-Filters. Max-Fan vacuum cleaners are a unique product in the panorama of accessories for air extraction. These highly effective vacuum cleaners contain 2 fans, one static and one that circulates the air. Combining, producing a uniform jet of air that created less friction with the ducts and thus avoiding pressure losses, makes the system more effective.
To give life to Can-Fan Iso-Max, the Max-Fan is placed inside a silencer that eliminates the noise produced by the aspirator and by the passage of air inside the ducts connected to it. Iso-Max vacuum cleaners are equipped with thermal switches and supports for easier assembly.
Warning: these vacuum cleaners are complete with a three-speed potentiometer (dimmer), so for correct operation they CANNOT be connected to other potentiometers, but must be wired directly to the mains by means of a special plug (not supplied) suitable for your needs.ng.
Max-Fan integrated in a silencer
Iso-Max is based on the patented 3D rotor-stator system, which guarantees impressive air flows. Unique to this fan is the fact that it is actually a fan integrated into a silencer. The steel housing of the Iso-Max is extremely well insulated with a special type of foam. This makes the fan very quiet, thanks to the combination of high quality insulation and low airflow turbulence.
To give life to Can-Fan Iso-Max, the Max-Fan is placed inside a silencer that eliminates the noise produced by the aspirator and by the passage of air inside the ducts connected to it. Iso-Max vacuum cleaners are equipped with thermal switches and supports for easier assembly.
Warning: these vacuum cleaners are complete with a three-speed potentiometer (dimmer), so for correct operation they CANNOT be connected to other potentiometers, but must be wired directly to the mains by means of a special plug (not supplied) suitable for your needs.ng.
General Specifications Iso-Max Can-Filters
- Max-Fan integrated in a silencer
- Quiet and powerful
- Easy to assemble
- Uniform rotor-stator air flow
- Housing completely in galvanized metal
- Acoustic foam padding
- Swiss made engine
- Controllable in combination with Satellite 4A and LCD EC Fan Controller
Max-Fan integrated in a silencer
Iso-Max is based on the patented 3D rotor-stator system, which guarantees impressive air flows. Unique to this fan is the fact that it is actually a fan integrated into a silencer. The steel housing of the Iso-Max is extremely well insulated with a special type of foam. This makes the fan very quiet, thanks to the combination of high quality insulation and low airflow turbulence.
Iso-Max is a silenced extractor fan produced by Can-Fan BV that combines the newly developed Max-Fan extractors and Can-Filters' high efficiency silencers in one product. Max-Fan vacuum cleaners are a unique product in the field of air extraction accessories. These high-efficiency extractors contain two fans, one static and one circulating to extract air. Combined, they produce a uniform jet of air that, by creating less friction with the ducting and thus avoiding pressure losses, makes the system more efficient.
To create the Iso-Max Can-Fan, the Max-Fan is placed inside a silencer which eliminates the noise produced at the fan and by the passage of air through the ducting connected to it. The Iso-Max vacuum cleaners are equipped with thermal switches and brackets for easy mounting.
Attention: these vacuum cleaners are equipped with a three-speed potentiometer (dimmer), therefore for correct operation they CANNOT be connected to other potentiometers, but must be wired directly to the mains power supply using a plug (not supplied) suitable for your needs.
To create the Iso-Max Can-Fan, the Max-Fan is placed inside a silencer which eliminates the noise produced at the fan and by the passage of air through the ducting connected to it. The Iso-Max vacuum cleaners are equipped with thermal switches and brackets for easy mounting.
Attention: these vacuum cleaners are equipped with a three-speed potentiometer (dimmer), therefore for correct operation they CANNOT be connected to other potentiometers, but must be wired directly to the mains power supply using a plug (not supplied) suitable for your needs.
General Specifications Iso-Max Can-Filters
- Max-Fan integrated in a silencer
- Silent and powerful
- Easy to mount
- Uniform rotor-stator air flow
- Fully galvanised metal housing
- Acoustic foam padding
- Swiss-made motor
- Controllable in combination with Satellite 4A and LCD EC Fan Controller
Technical Specifications Iso-Max 315/3260
- Material Metal
- Length 680 mm
- Weight 19.2 kg
- Diameter 315 mm
- Capacity 3260 m3 / h
- Current 3.2A
- Power 512W
- Permissible speed controller Yes
Max-Fan integrated in silencer
The Iso-Max is based on the patented 3D rotor-stator system, which guarantees impressive air flows. Unique to this fan is the fact that it is actually a fan integrated in a silencer.The steel housing of the Iso-Max is extremely well insulated with a special type of foam. This makes the fan very quiet, thanks to the combination of high-quality insulation and low turbulence in the air flow.
-
