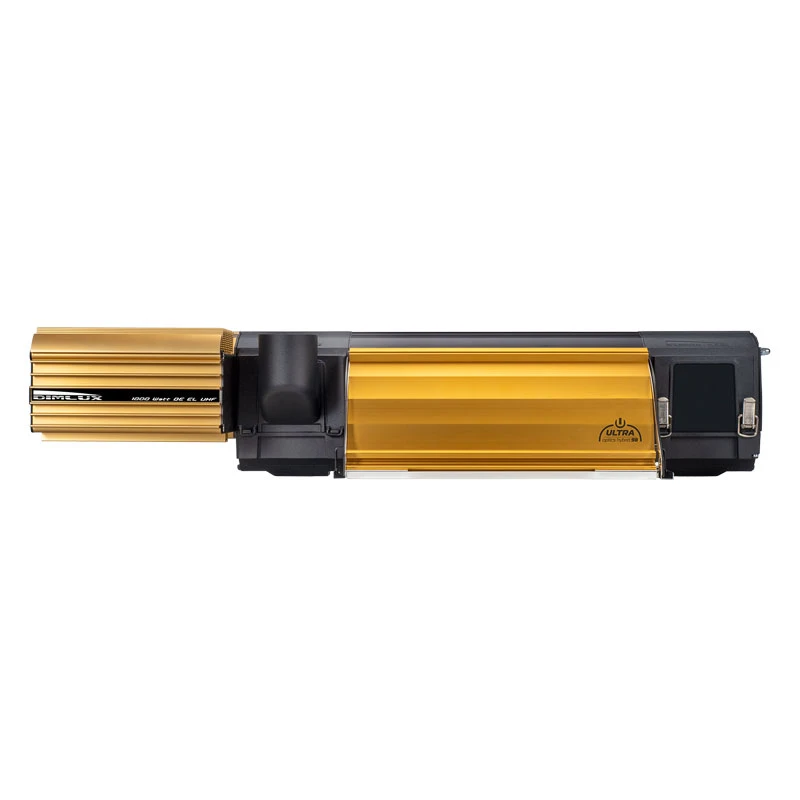

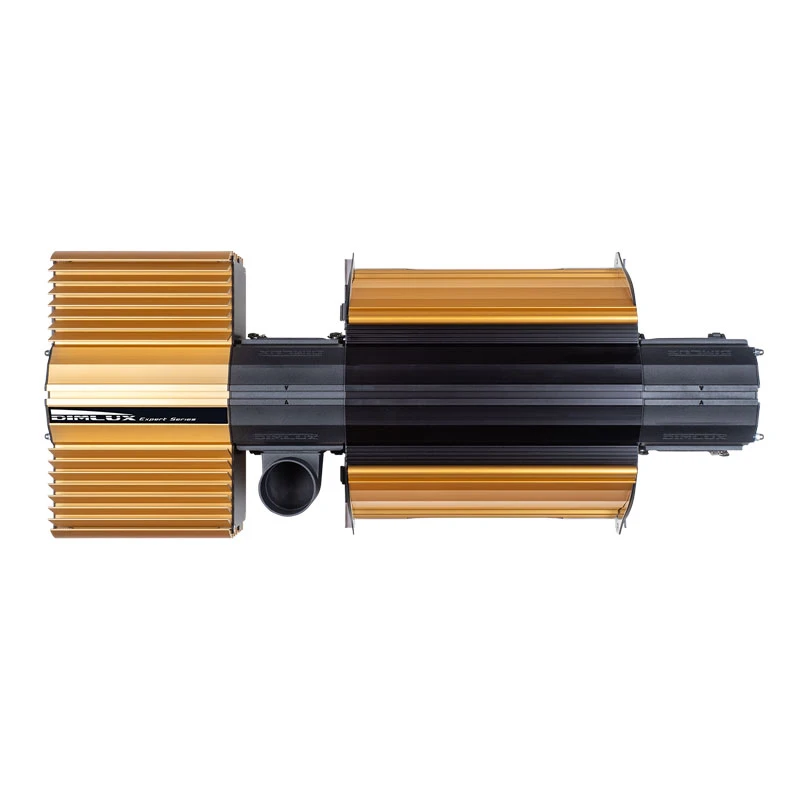

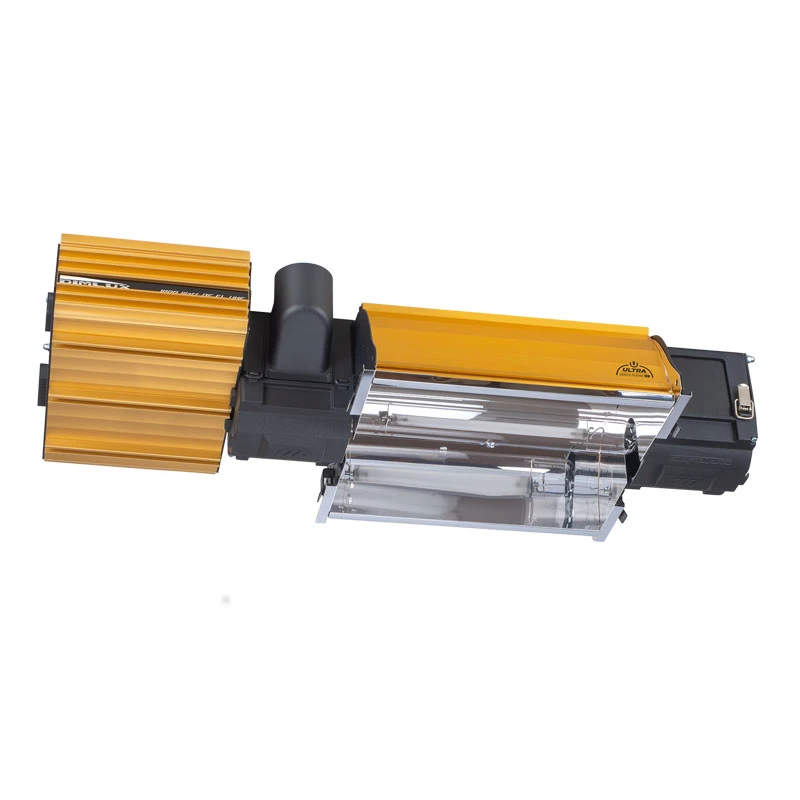

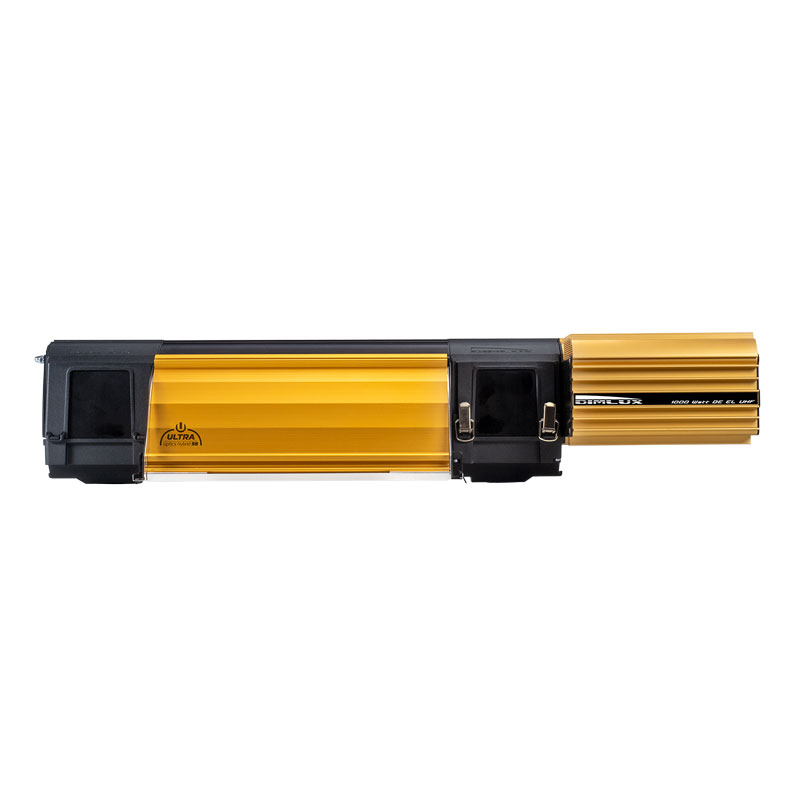

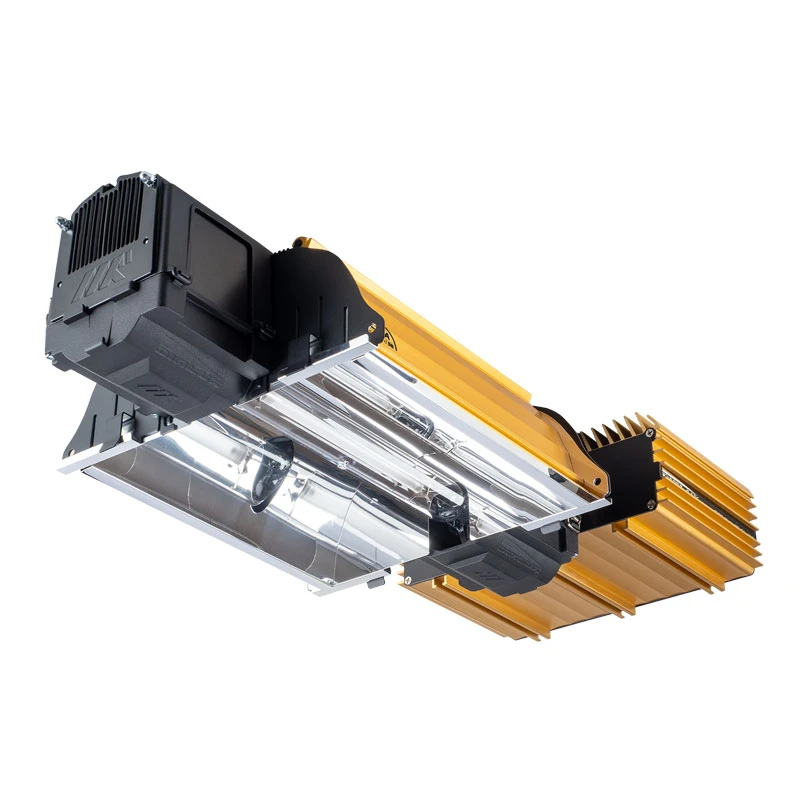

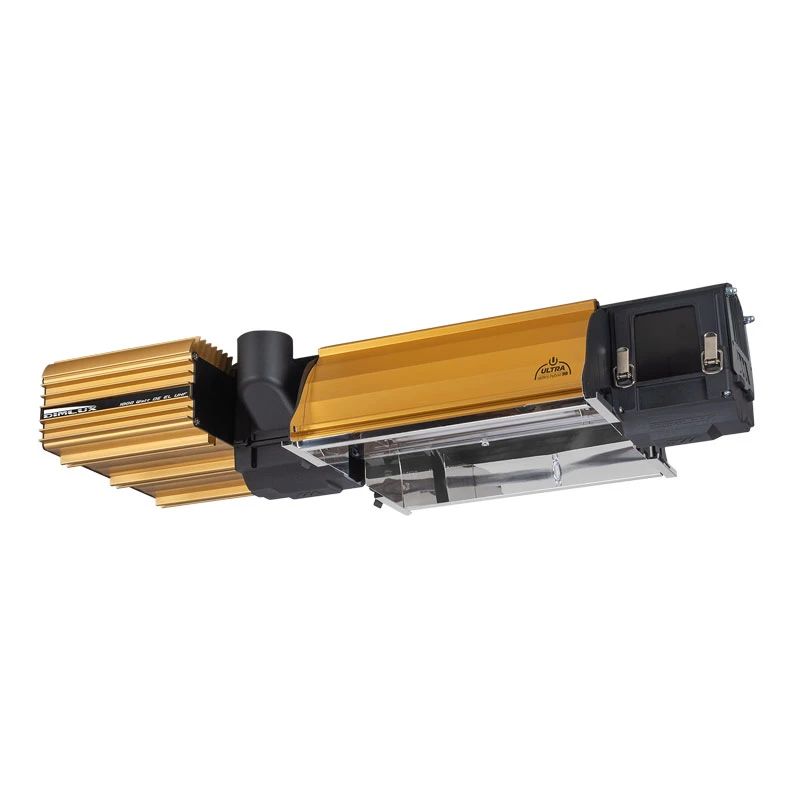

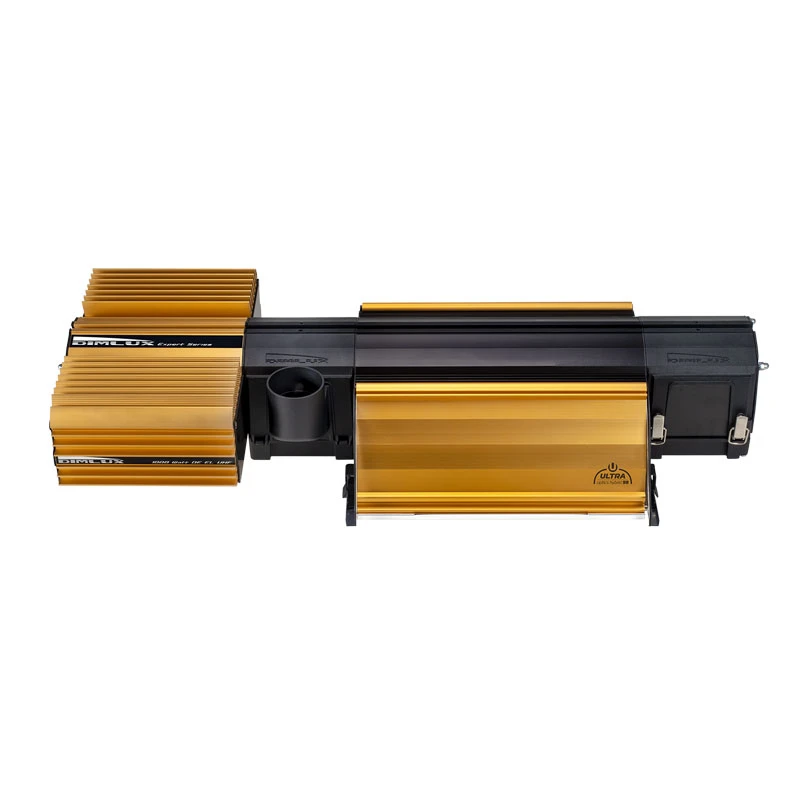

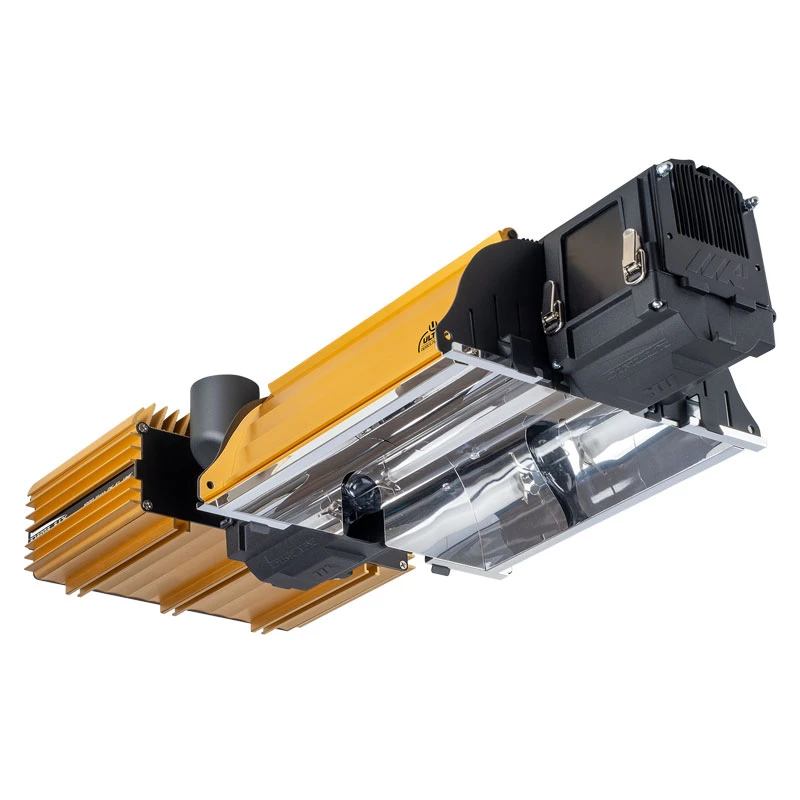

DIMLUX - EXPERT SERIES MKII 1000W DE EL UHF + PHILIPS MASTER GREENPOWER XTRA 1000W

Main features Dimlux Expert Series MKII 1000W DE EL DHF:

• Combined lamp, ballast and reflector
• Offers 10% higher yields than standard HPS lights
• The very high frequency operation of the ballast (140Khz) increases the light emitted by the bulb in the active photosynthetic spectrum
• It operates from a standard 230 volt household power supply
• Extremely high PAR levels (usable plant light)
• Very low operating temperatures
• Highly efficient, with extremely low heat output
• Ultra Optics 98 reflector for wonderfully uniform light diffusion
• Supplied with Philips MASTER GreenPower Xtra 1000W lamp
• PPF of 2,150 µmol / s
• Suitable for illuminating an area between 1.65 and 4 square meters according to the power and needs of the cultivated variety.

Dimlux Expert Series MKII 1000W DE EL DHF Technical Specifications:

• Dimmable on 7 different powers:
  Soft Off
  600 Watts
  700 Watts
  800 Watts
  900 Watts
  1000 Watts
  1100 Watt
  1200 Watts

• Soft-Start technology when used without Maxi Controller
• Zero-Start technology when used with Maxi Controller
• Dimmable according to environmental conditions when used with the Maxi Controller

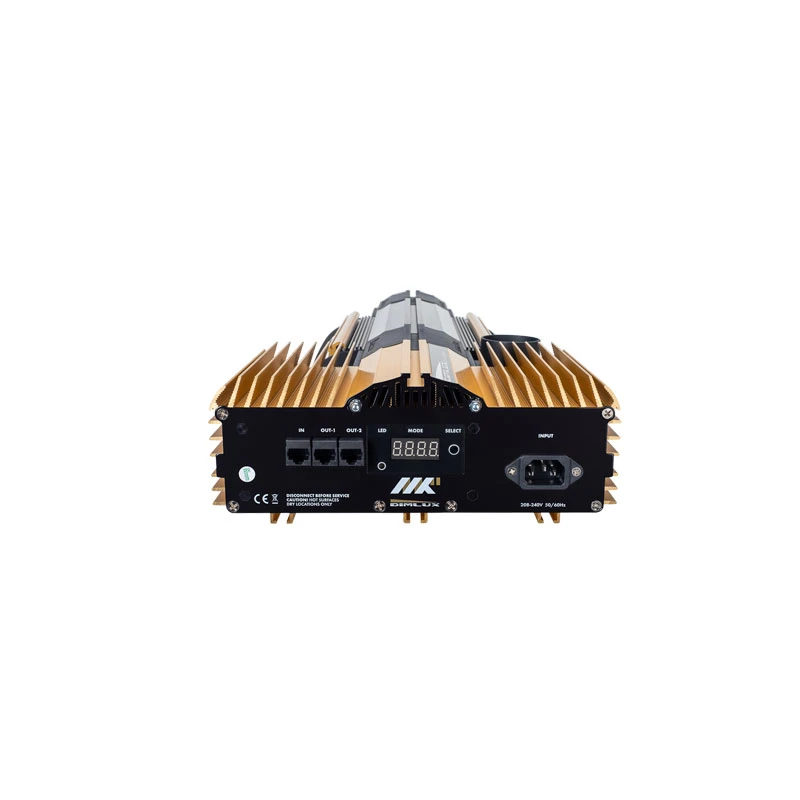

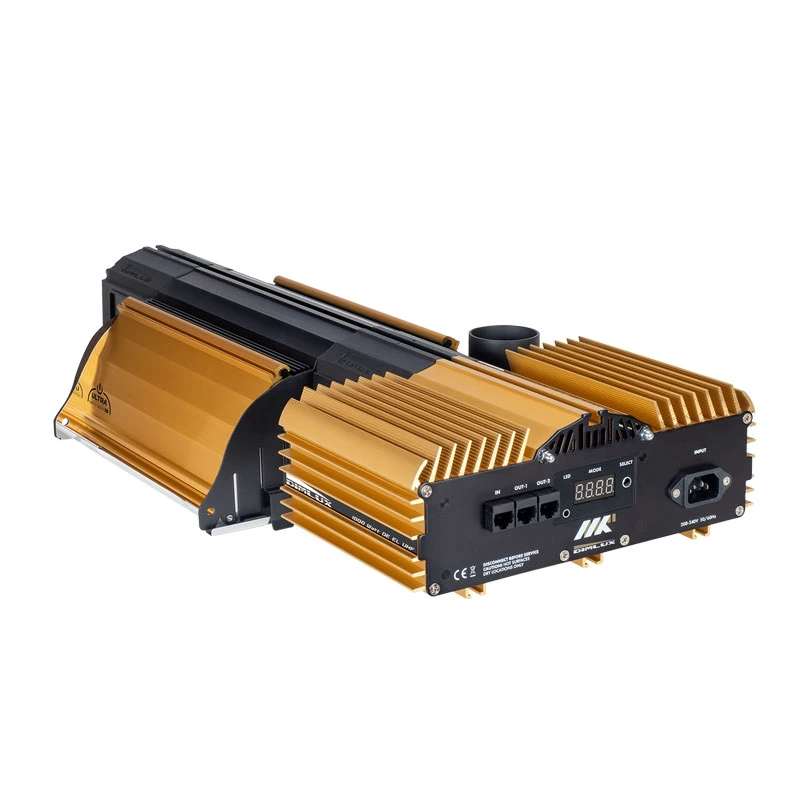

• Equipped with diagnostic LEDs that indicate the operating status of the power supply
• Super-Lumen up to 15% more

Safety and reliability:
The diagnostic LEDs present indicate if the ballast is on, in safety mode or if it has any malfunction. In the event of a malfunction, the LEDs will also indicate the nature of the same (for example a poorly executed wiring) Thanks to its processor, Dimlux continuously monitors the internal operating status and the quality of the connection between ballast and lamp. In the event of a loose cable or a short circuit, the ballast switches off immediately, preventing possible fire risks.
Traditional ballasts ignite the gases present inside the bulbs with electric shocks up to 5000V, greatly increasing the risk of overloads and fires. Thanks to the soft-start technology this does not happen with the Dimlux.

Constant light output:
Another important thing to take into consideration is that conventional magnetic ballasts vary their efficiency and therefore the light output based on the voltage of the power line to which they are connected. The same ballast can have a variation of light emission of up to 10% if mounted on lines with different voltages.
The Dimlux, on the other hand, automatically stabilizes the incoming current on a voltage of 230V, this guarantees a constant light emission regardless of the voltage of the power line to which it is connected.

Duration over the years::
As with other electronic ballasts, a great advantage of DIMLUX is that they do not lose efficiency over the years. An analog power supply over time tends to consume more and more and to make less and less. It is possible that with the passage of time the increase in the absorption of the analogue ballasts (even from 4 to 5 Ampere for a 600W ballast) could cause an overload of the electric line with possible fire risks. Dimlux keep their consumption constant by avoiding
any risk.

Dimlux Expert Series Accessories:

Long side additional wings for Alpha Optics 98 reflector
Additional wings short side for Alpha Optics 98 reflector

Dimlux Accessories For Cooling reflectors

T connections for Dimlux reflectors connection
Combidec duct for Dimlux reflector connection
