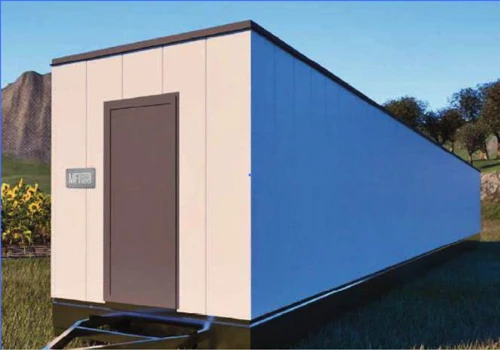

INDOORLINE - NIMA - MOBILFARM ONE WHEELS GROWROOM PREFABRICATED ON WHEELS | 750x250x240h cm
What is MOBILFARM? MOBILFARM offers an efficient and versatile environment for the cultivation of medicinal cannabis, designed to maximise productivity and meet high quality standards....
Recalculation in progress … What is MOBILFARM?
MOBILFARM offers an efficient and versatile environment for the cultivation of medicinal cannabis, designed to maximise productivity and meet high quality standards. Optimised for mothers and cuttings production, it ensures ideal growing conditions thanks to its advanced climate control and lighting systems. With MOBILFARM, farmers can grow safely, responding to market demands with flexibility and reliability.
Why choose MOBILFARM?
Maximum energy efficiency
MOBILFARM guarantees class A thermal insulation. It means minimising heat loss and related energy costs.
Optimal climate control
MOBILFARMs offer superior climate control, ensuring constant temperatures and ideal conditions for plant growth, regardless of the outdoor climate.
Flexibility and modularity
MOBILFARMs are easily transportable and movable without a crane on concrete surfaces, offering superior flexibility compared to fixed structures and containers.
Scalability
MOBILFARMs are expandable: new modules can be added without costly renovations or operational interruptions, easily adapting to demand.
Security andprivacy
MOBILFARMs offer high security and privacy, with enclosed, monitorable structures that reduce the risk of theft and vandalism, ideal for crops that require discretion.
Ease of installation
Installing a MOBILFARM is quick and easy, with no complex construction work, allowing cultivation to begin almost immediately and saving time.
In conclusion, growing in a thermally insulated and easily removable MOBILFARM is a smart choice for efficiency, control and flexibility, ensuring an optimal and adaptable growing environment.

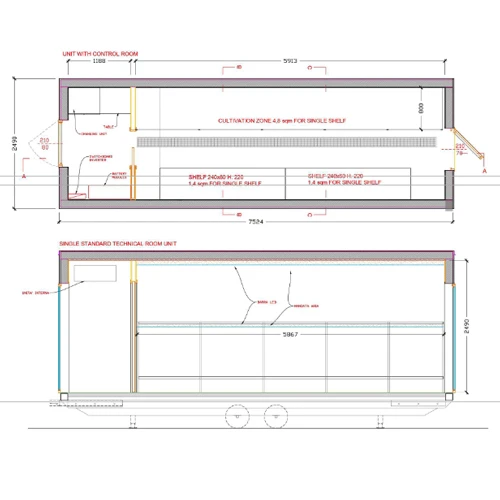

Technical characteristics:
- External dimensions 7.5x2.5x 3.00h
- Internal dimensions 7.5x2,5x 2.40h
- Safety and cleaning: entrance with technical compartment and changing room.
- Net surface for mother cultivation: 9.20sqm on 2 levels
- Net area for growing cuttings in 2 stages: 5.70m2 on 2 levels
- Number of cultivable rooting cuttings: up to 462
- Number of cultivable cuttings rooting: up to 630 cuttings
- Cuttings growing area can be increased up to 100%.
Lighting:
Power: 2700W
Average PPFD mothers: 450 μmol/m2/sec with GROLUX LINAR SYLVANIA dimmable
Average PPFD cuttings: 200 μmol/m2/sec
Climate control:
One 12000 BTU hot/cold unit.
Dehumidification:
One professional unit, maximum capacity: 64 litres/day.
Humidification:
Professional ultrasound system.
Water filtration:
Three-stage reverse osmosis with UVC.
Air sanitisation:
UVC system.
Management and control:
Local and remote control of light, CO2, humidity, dehumidification and air conditioning.
CO2 fertilisation:
Fertilisation system with gas (cylinder not included).
Fertilisation system:
A+B+C+pH system with local and remote control.
Security and monitoring:
Alarms for CO2, VPD, water leaks, smoke, and internal video surveillance.
Ventilation:
Air desertification and internal ventilation.
Exclusions:
Fertilisation plant (to be quoted according to customer requirements).
Production products.
Transport and assembly costs on site.
Unforeseeable logistical difficulties.
With these state-of-the-art features, we offer an optimal cultivation environment that can be managed both locally and remotely for maximum efficiency and productivity.
Electricity consumption:Theoretical plant power consumption: 4,000W
Maximum air conditioning electrical consumption: 1500W

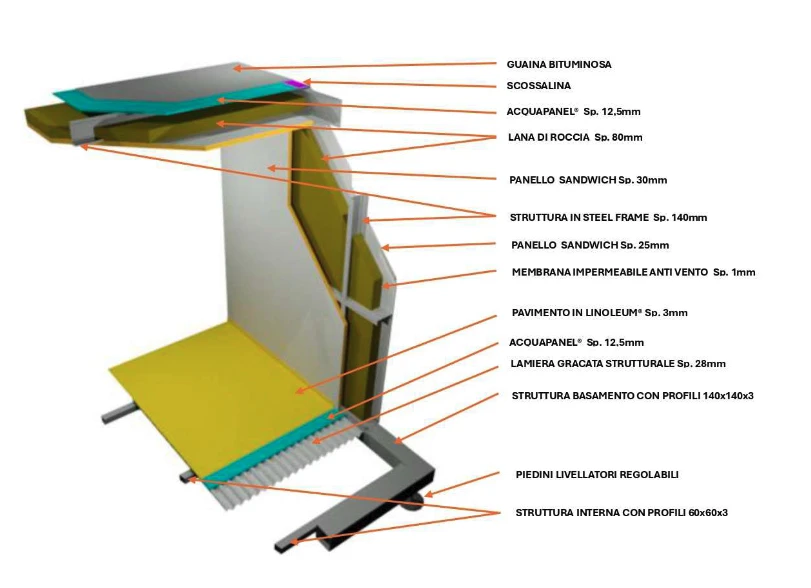

WALLS

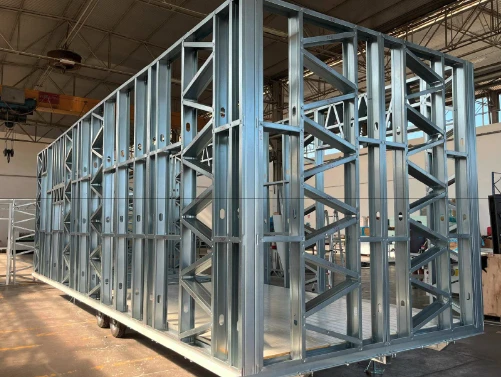

- Load-bearing structure with 140-thick galvanised steel profiles light steel frame
- Wind barrier
- 80mm mineral wool layer
- External walls with 25 mm sandwich panel with Ral finish
- Internal walls with 30 mm thick sandwich panel smooth Ral 9010
COVER
- Load-bearing structure with 140-thick galvanised steel profiles light steel frame
- 80 mm mineral wool layer
- 60 mm thick sandwich panel
- Fixing of double layer slated sheathing with heat welding
- Perimeter aluminium skirting
BASE
- 30cm thick galvanised C-frame base structure
- Fixing of double axle with 4 wheels
- 30mm-thick collaborating steel sheet
- Mechanically fixed fibre cement slab
- Fastening of linoleum flooring
- Central steel grid for water drainage
- Single drawbar for handling

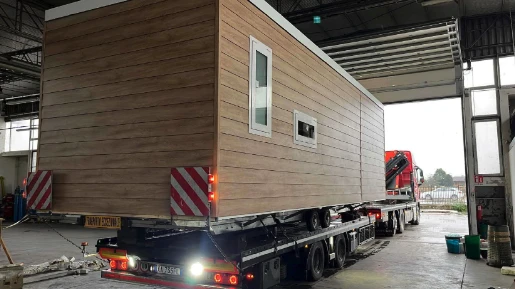

TRANSPORT
- Transport by low-bed trailer in gauge
For projects, advice or more information write to info@indoorline.com
-
250x750x240 cm (WxLxH)
-
