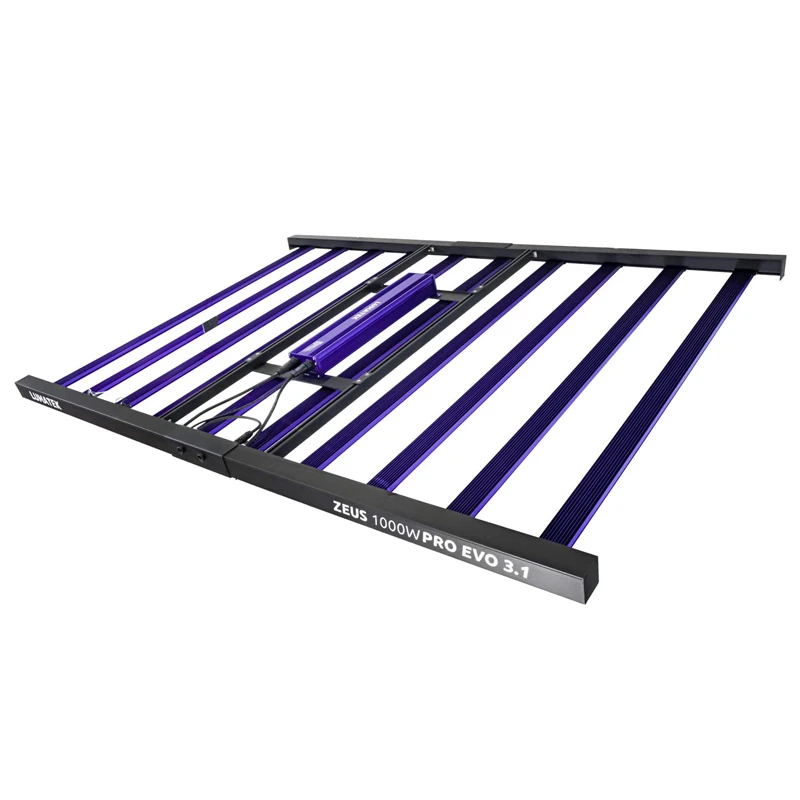

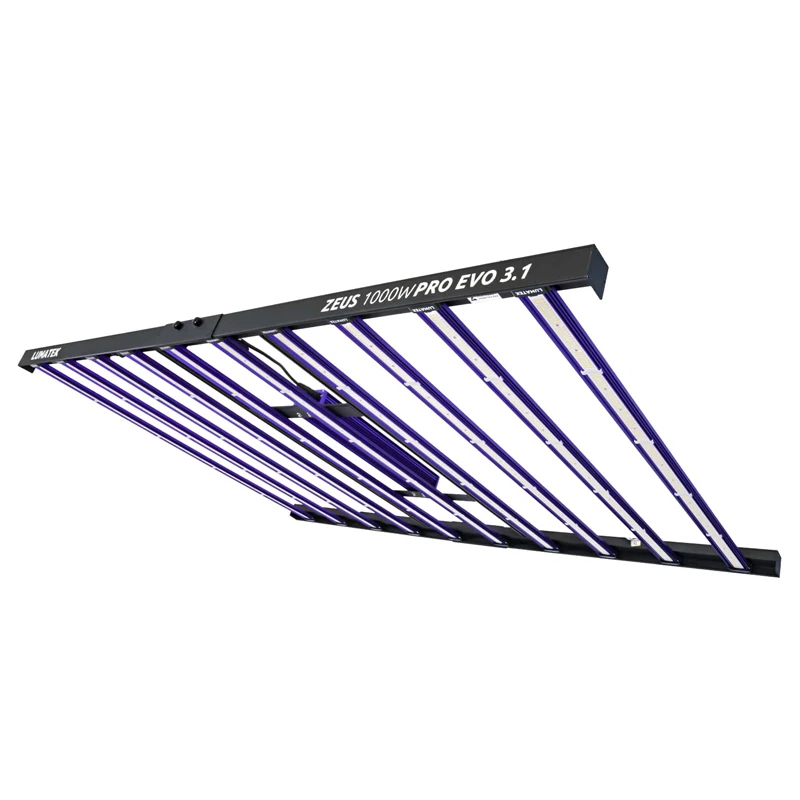

LUMATEK - ZEUS 1000W PRO EVO | 3.1 µmol/J

Raising the bar for high-quality horticultural LED lighting, discover the brand new ZEUS 1000W PRO EVO 3.1, with a unique 2 x 1.5 m frame that offers a unique coverage of 2 x 1.5 m in the LED horticulture sector thanks to its high efficiency and rectangular shape.

With advances in luminaire technology and performance, high-quality LED horticultural lighting is now a credible option offering a significant return on investment to growers. LUMATEK's full-spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) ensuring an even light distribution.

Providing the largest rectangular coverage area from the single largest linear bar luminaire on the market, the ZEUS 1000W PRO EVO 3.1 is designed to create the best full spectrum light distribution for large-scale cultivation. With the highest specification, the new LUMATEK ZEUS 1000W PRO EVO 3.1 LED is a multi-light linear bar luminaire producing extremely high PPF levels of 3125 μmol/s and an efficacy of 3.1 μmol/J.

This luminaire features a large rectangular frame with an ingenious system that creates an even spread of light a short distance away from the crop, enabling single-source illumination for multi-layer growing systems, single banks in low-ceilinged rooms and grow tents.

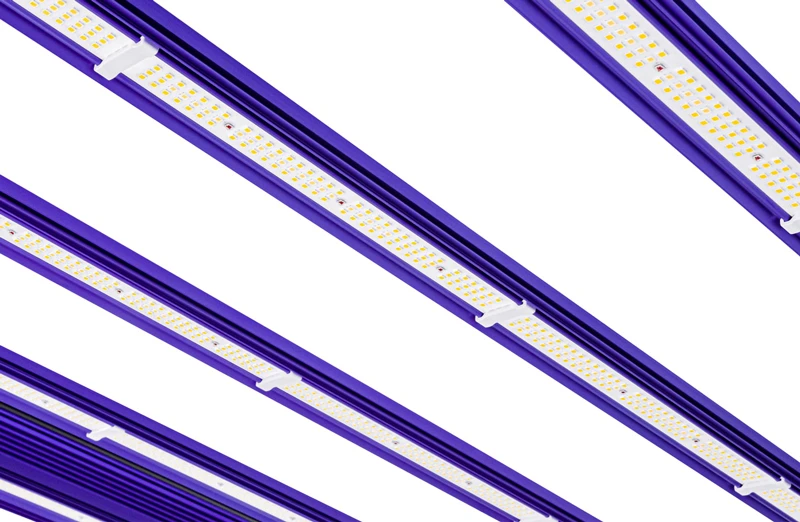

The new ZEUS line is manufactured using high-quality LUMATEK drivers and the latest generation of top bin LEDs from Samsung and Osram, generating a full-spectrum light source that is ideal for growing and flowering cycles. Transparent glue protection technology on the LED bars results in 99% higher light transmission without light loss, longer diode lifetime, increased corrosion resistance and high water resistance of IP65. For basic maintenance, simply clean the bars with wet cotton.

For different cultivars, propagation and vegetative growth periods, Zeus can be dimmed without losing efficiency. The high-efficiency, low-power LED configuration with 10 interchangeable magnetic LED bars reduces LED temperature by increasing output and improving light retention.

As usual, this luminaire can also be controlled externally via a LUMATEK Plus 2.0 control panel with light timing, automatic dimming (in 1% increments), safety temperature control, sunrise and sunset mode for up to 100 LUMATEK ZEUS 1000W PRO 3.1 luminaire units per controller.

Technical Specifications Zeus 1000W PRO Lumatek:

• EFFICIENCY: up to 3.1 µmol/J
• PPF: 3125 µmol/s
• INPUT VOLTAGE: 220-240 V, 50-60 Hz
• INPUT POWER AT 100%: 1025 W (±5%) at 230 V AC
• OVERALL SIZE: 2.0 x 1.5 m
• WATER RESISTANCE: IP65
• LENGTH: 60,000 hours

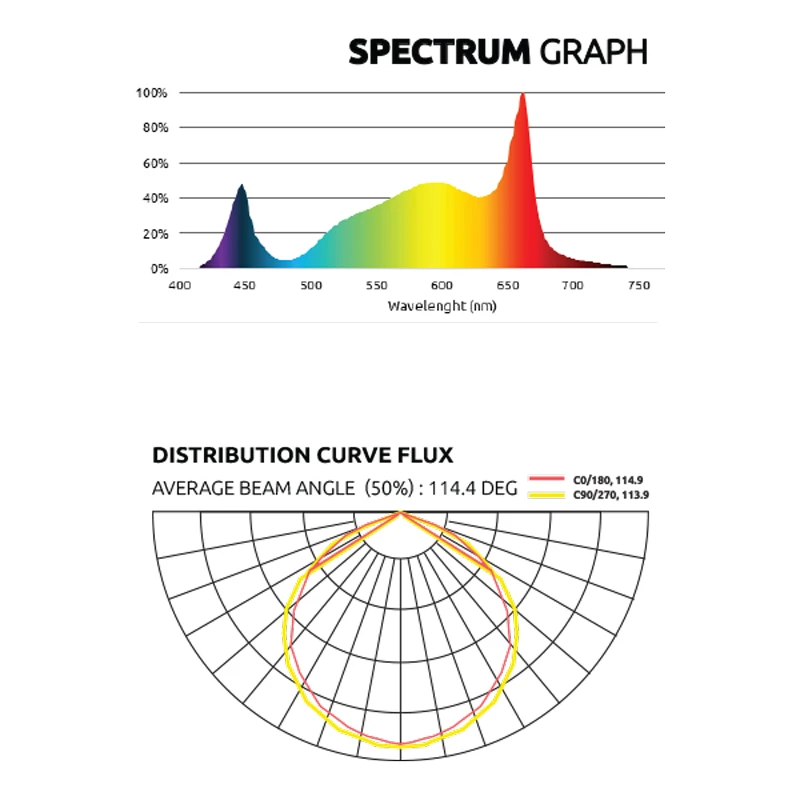

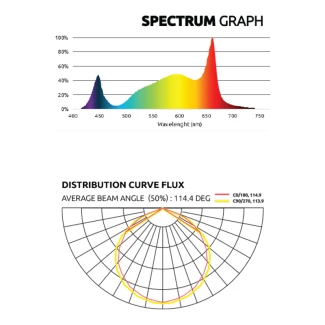

• LIGHT DISTRIBUTION: 120°
• LIGHT SOURCE: SAMSUNG LM301H EVO | OSRAM 4.24
• THERMAL MANAGEMENT: Passive cooling
• DIMMERABLE: OFF-25%-50%-75%-100% with 0-10V light dimmer (included)

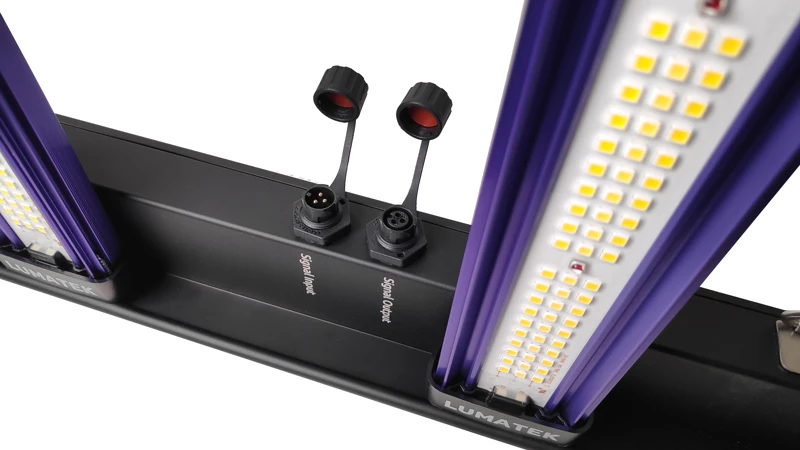

• EXTERNAL CONTROL: With Lumatek Digital Panel Plus 2.0 or universal 0-10V controller
• WEIGHT: 18 Kg
• DIMENSIONS: 1700 x 1200 x 84 mm
• SPECTRUM: Full Spectrum F
• WARRANTY: 5 years

• 10 Lumatek 100 W Pro 3.1 full spectrum magnetic light bars
• 1 LED luminaire housing

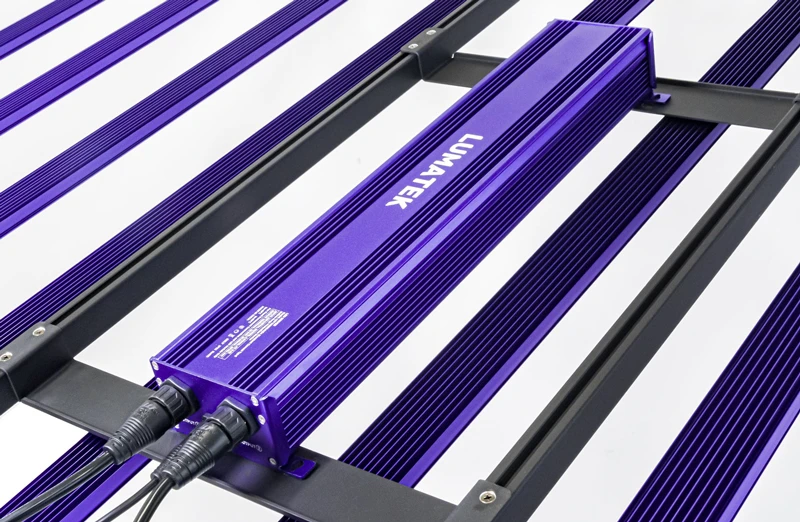

• 1 Lumatek 1000 W PRO 3.1 driver with connection cables
• 1 light dimmer 0-10 V + Velcro

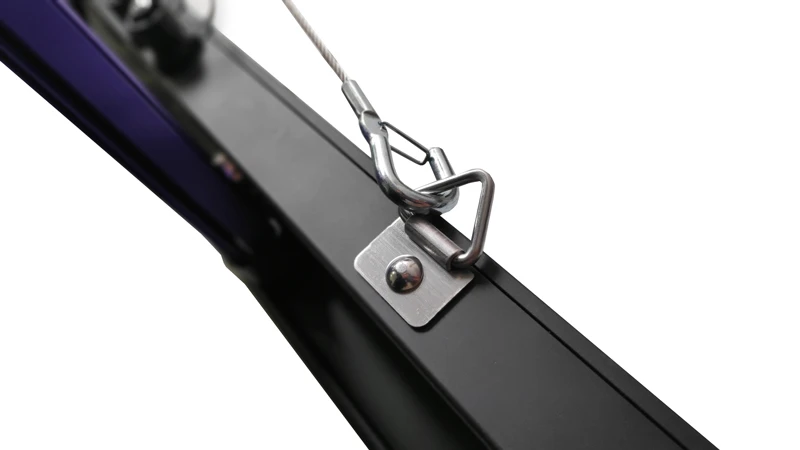

• 2 metal cable hooks
• 1 manual

Key features Zeus 1000W PRO Lumatek:

• Very high efficacy of 3.1 µmol/J
• Very high PPF output for high intensity 3125 µmol/s
• Unique and improved frame designed for wider rectangular coverage
• Exceptional light diffusion and distribution in a 2.0 x 1.5 m growing area
• High quality Lumatek LED driver
• Clear Glue protective cover technology on LED bars
• LEDs with top housing
• Full balanced spectrum
• External control with Lumatek Plus 2.0 control panel
• Replaceable 100 W Pro 3.1 magnetic light bars
• Fully dimmable
• Easy Plug & Play assembly
• 5-year warranty
