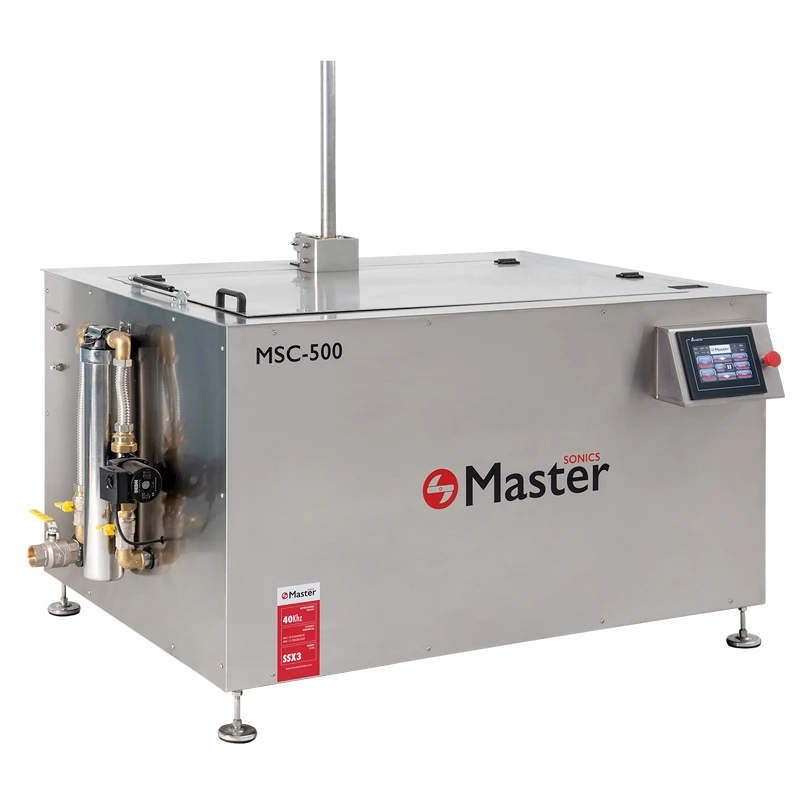

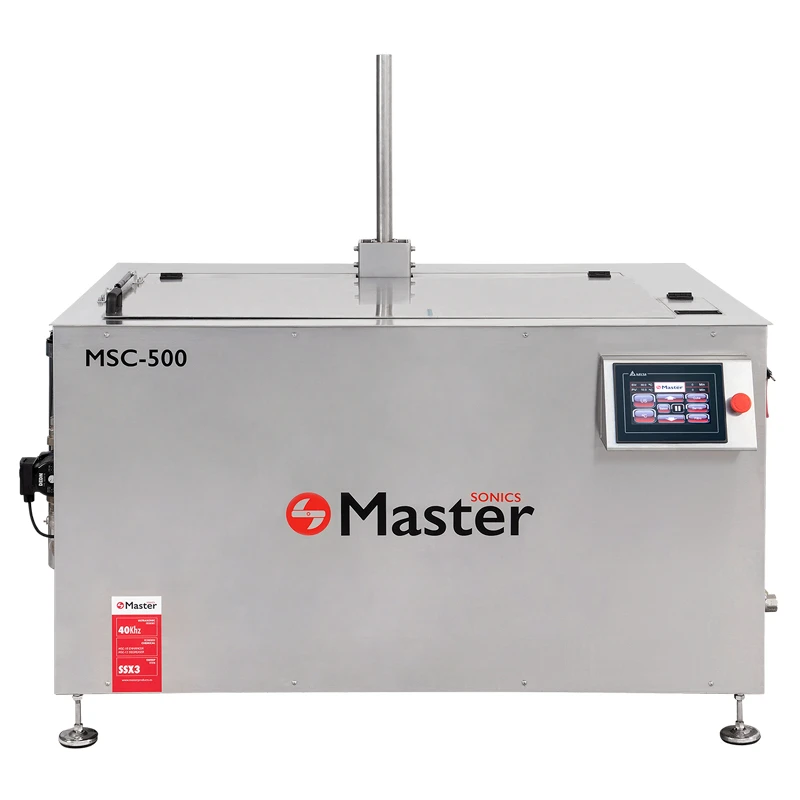

MASTER PRODUCTS - MASTER SONIC 500 MED
The Master Sonic 500 Med from Master Products is a washing machine that uses the most advanced ultrasonic technology for total cleaning of your equipment at the touch of a button. Post-harvest...
The Master Sonic 500 Med from Master Products is a washing machine that uses the most advanced ultrasonic technology for total cleaning of your equipment at the touch of a button.
Post-harvest equipment accumulates debris and dirt from processed plants due to intensive use. Cleaning is essential for proper operation and GMP requirements. Adding a Master Sonic 500 to your production line will make cleaning and maintenance tasks much easier and faster, increasing productivity, safety and efficiency.
It can clean any component in less than 5 minutes, compared to the several hours required for manual cleaning. Moreover, it requires only one operator, who can perform other tasks while the Master Sonic 500 does the cleaning in an automated manner, thus achieving maximum performance in the process thanks to its ultrasonic technology.
What fits with the Master Sonic 500?
- 1x MT 200 drum
- 4 MT 500 / 500 MED barrels
- Several MT 500 brushes
Furthermore, if you have specific requirements, Master Products offers the possibility to customise the Master Sonic 500 with the size that suits you best, in case you need to clean larger components or equipment.
Features Sonic 500 MED Master Products:
- 420 litre capacity.
- Ultrasonic cleaning power of 4,500 W.
- 7,500 W heating power for total cleaning.
- Pneumatic loading platform.
- Platform capacity 320 kg
- Ultrasonic arrangement on a uniform base.
- 7" HDMI touch screen with independent configuration of each function.
- Self-protection by means of heat and heat insulating coating.
- Oil separation by side surface sweeping with auxiliary tank.
- Recirculation system plus 20" and 10 micron stainless polymer filtration.
- Lifting platform with Up-Down-Play-Pause functions.
- Stainless steel and polyester anti-vibration mounts.
- Continuous or timed ultrasonics.
- Constructed from 304 and 316 stainless steel.
- 380 V electrical connection.
- Integrated compressed air gun.
- Liquid level sensor.
- Part unloading tray.
- Automatic ignition programming.
- End-of-day heat cover.
- Programmable delayed start of heating.
- Temperature selection from 0º to 80º to suit any component or material to be cleaned.
Technical specifications MT Sonic 500 Med:
- Electrical connection 380 V 32 A
- Machine weight 290 kg
- External dimensions 153×113×100 cm
- Interior dimensions 108×61×44 cm
- Machine material Stainless steel 304
- Ultrasonic power 4,500 W
- Heating power 7,500 W
- Cubic capacity 420 litres
- Lifting capacity 320 kg
- 7-inch HDMItouch screen
- Temperature control 0º to 80º
- Meets GMP requirements Yes
- Safety system Yes
- 2-yearwarranty
Warnings
Protective gloves and goggles must be worn at all times.
Avoid direct contact of hands (or other body parts) with the grill.
Never use metal objects on or insert metal objects into the grill, this includes scissors.
Never apply pressure to the grid.
AVAILABLE IN 7-10 WORKING DAYS
-
153x113x100 cm (WxLxH)
