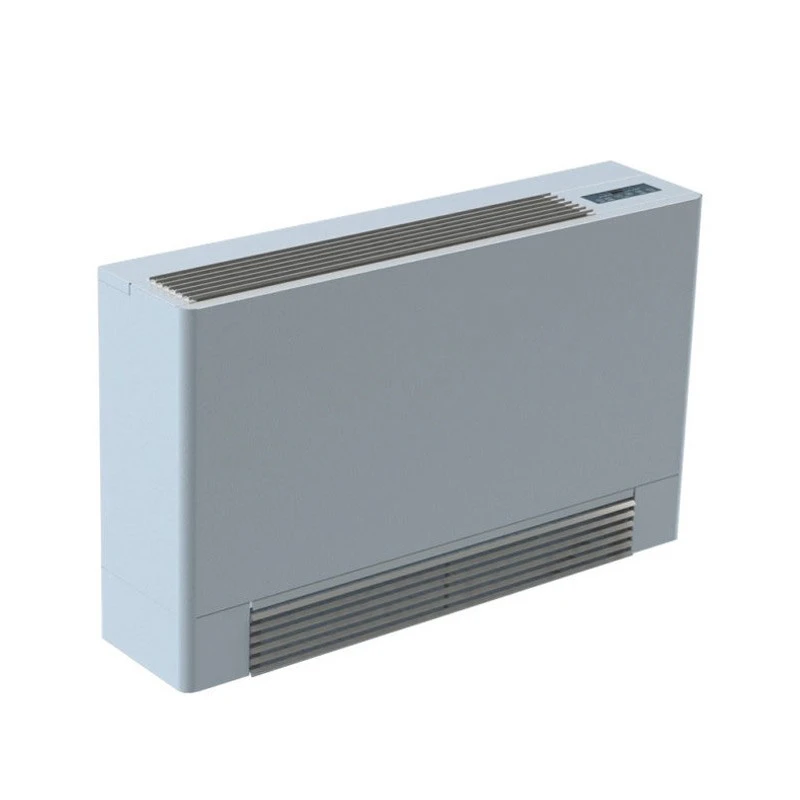

FRAL - WALL-mounted DEHUMIDIFIER FOR GREENHOUSES AND POOLS FSW63 | 69 l/g FLOW RATE 600 m³/h

Fral FSW63 is a Fral FSW series stationary pool dehumidifier that can be used in many applications. Resistant to chlorine corrosion, this pool dehumidifier has a washable and easily replaceable high-efficiency polyurethane filter.

The Fral FSW63 has theoption of direct drainage or with theoptional installation of a condensate lift pump. The condensate lift pump allows condensate to be sent up to 3.5 m up from the level where the professional dehumidifier has been placed.

Refined design, the Fral FSW63 can also be installed in environments open to the public such as libraries and offices.

Key features Fral FSW63:

• Galvanised sheet metal construction and rotary compressor

  The FSW series dehumidifiers are made of galvanised sheet metal and painted with 180°C enamelat polyurethane powder to ensure the best resistance to atmospheric agents. The structure is self-supporting. The Fral FSW63 swimming pool dehumidifier is equipped with a rotary type compressor. The compressor of this Fral dehumidifier has low energy consumption and quiet operation. The rotary compressor for swimming pool dehumidifiers uses refrigerant gas R410a.

• Refrigerant circuit and condensate collection

  The refrigeration circuit includes filter drier, Schrader valves for maintenance and control, capillary tube expansion, compressor, condenser and evaporator made of copper tubes with aluminium fins. The condensate collection container is made of corrosion-resistant stainless steel, with a 3⁄4" female condensate drain tube connection.

• Fan, filter and microprocessor

  There is a centrifugal type fan on this Fral FSW63 pool dehumidifier. The air filter is made of synthetic material, washable and easily replaceable. The microprocessor of the professional dehumidifier is used to control general operation, automatic defrosting, alarms and humidity and temperature regulation.

• Electrical panel

  The electrical panel of the Fral dehumidifier consists of: terminals for remote control and electronic board.

• Testing

  Refrigerant circuit leakage tests, electrical discharge tests and functional testing are carried out.

Technical specifications Fral FSW63:

• The voltage of Fral FSW63 is single-phase 230 V. The average nominal power consumption of Fral FSW63 (27°C - 60%) is 840 W, with a maximum power consumption with electrical resistance (35°C - 70%) of 2840 W. The inrush current L.R.A is 22 A. The nominal capacity of this pool dehumidifier is 600 m³/h, with a sound pressure at 3 metres of 49 dB(A).
• The machine's degree of protection is IPX2, with refrigerant gas R410a.
• The operating range is between 7÷35 °C.
• The dimensions of the Fral dehumidifier for fixed installation swimming pools are 101 x 60 x 23 cm, for a weight of 48 kg. Further details can be found in the technical table at the bottom of the page.

Technical data:

• Technical data Power supply 230 V
• Power consumption 840 W
• Nominal Air Flow 600 m³/h
• Dehumidification Max. 69 L/24 h
• Room Humidity Control 900 m³
• Max Absorbed Current 13.3 A
• Noise 49 dB (A)
• Refrigerant R410a
• Condensate drain connection 3/4 M
• Relative Humidity T < 30 °C 40 ÷ 99
• Relative Humidity T 30 to 32 °C 40 to 90 % T
• Relative Humidity T 32 to 35 °C 40 to 70 % Relative Humidity T 32 to 35 °C 40 to 70 %
• Temperature 7 to 35 °C
• Dimensions 101 x 60 x 23 cm
• Weight 48 kg
