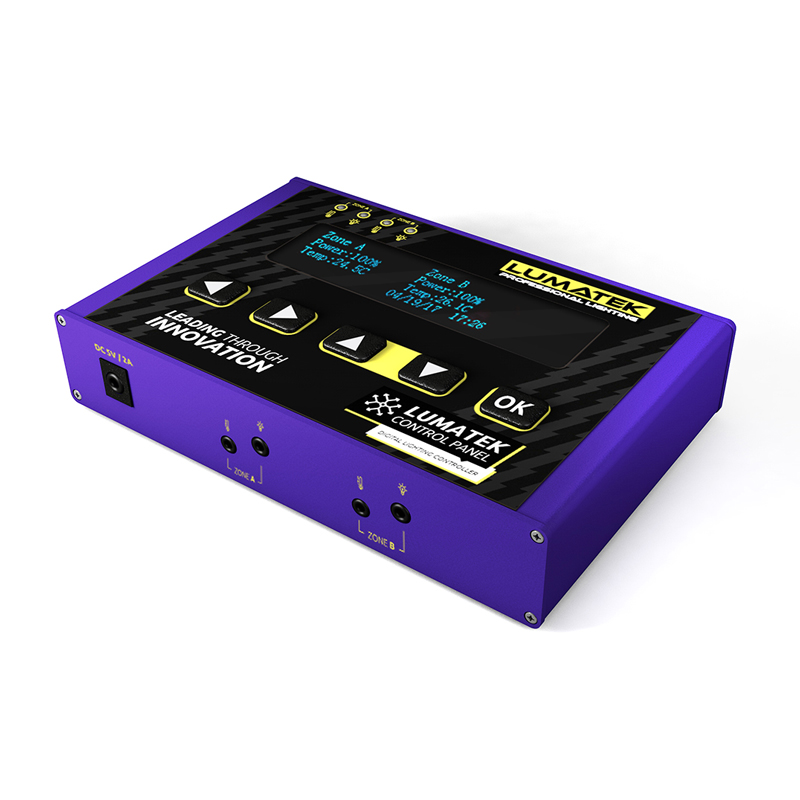

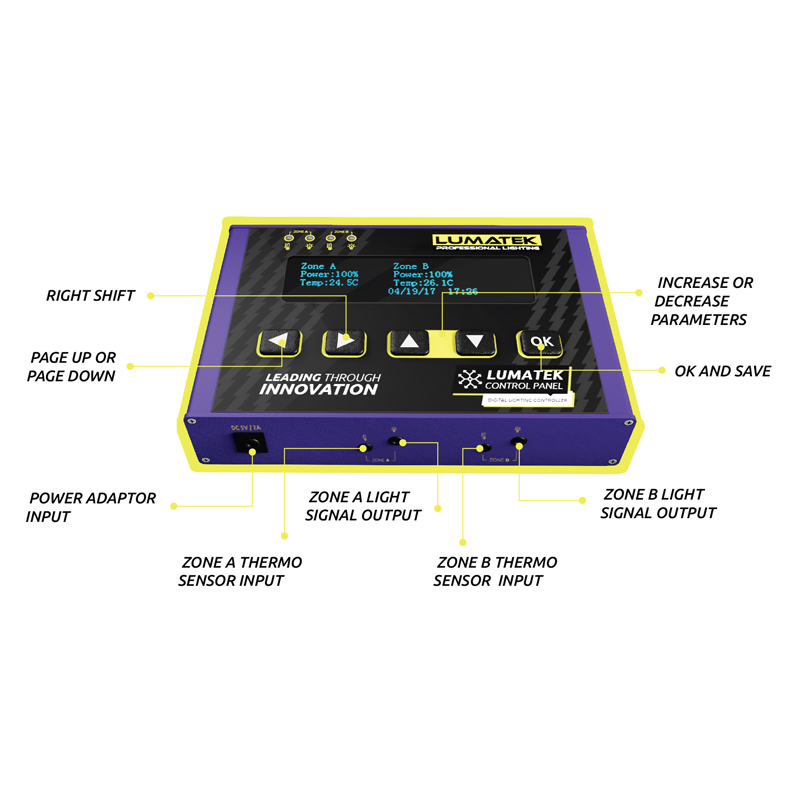

LUMATEK - DIGITAL CONTROLLER FOR CONTROL SERIES IGNITION SYSTEMS FOR BALLAST HPS, CMH

Items included:
1 x Lumatek control panel
1 x Power cable
2 x Temperature sensor cable
2 x 'Link' control cable

Main features lumatek controller:

• Connectable with Lumatek dimmable 315w, 630w, 600w and 1000w ballasts
• Pro-line TRS connection
• Digital timing, automation, regulation and safety control
• Intelligent room temperature maintenance
• Automatic sunrise / sunset function
• Control of up to 400 ballasts (200 ballasts per channel - Zone A and B)

Technical characteristics lumatek controller

• Control panel for up to 400 ballasts
• 2 channels (Zone A and Zone B)
• Temperature sensor monitoring and control
• Digital attenuation control (1% increments)
• Specialised Control TRS connection cables
• Customised sunrise and sunset
• Temperature and safety control mechanisms
• Power = DC5V / 2A
• Usable Ballast = 250w, 315w, 400w, 600w, 630w, 750w, 1000w
• Control Command Time Interval = 2S
• Power adjustment range = 60% - 110%.
• Power adjustment accuracy = 1%
• Adjustable temperature-controlled inspection range = 0ºC-40ºC
• Temperature-controlled protective inspection range = 10ºC-50ºC
• Sunrise and sunset duration = 0-30 min
• Dimensions: 125 mm x 80 mm x 25 mm
