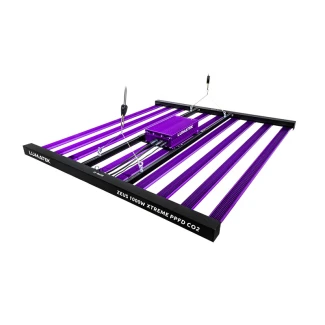

LUMATEK - ZEUS 1000W XTREME PPFD CO2 LED (2,925 µmol/J)

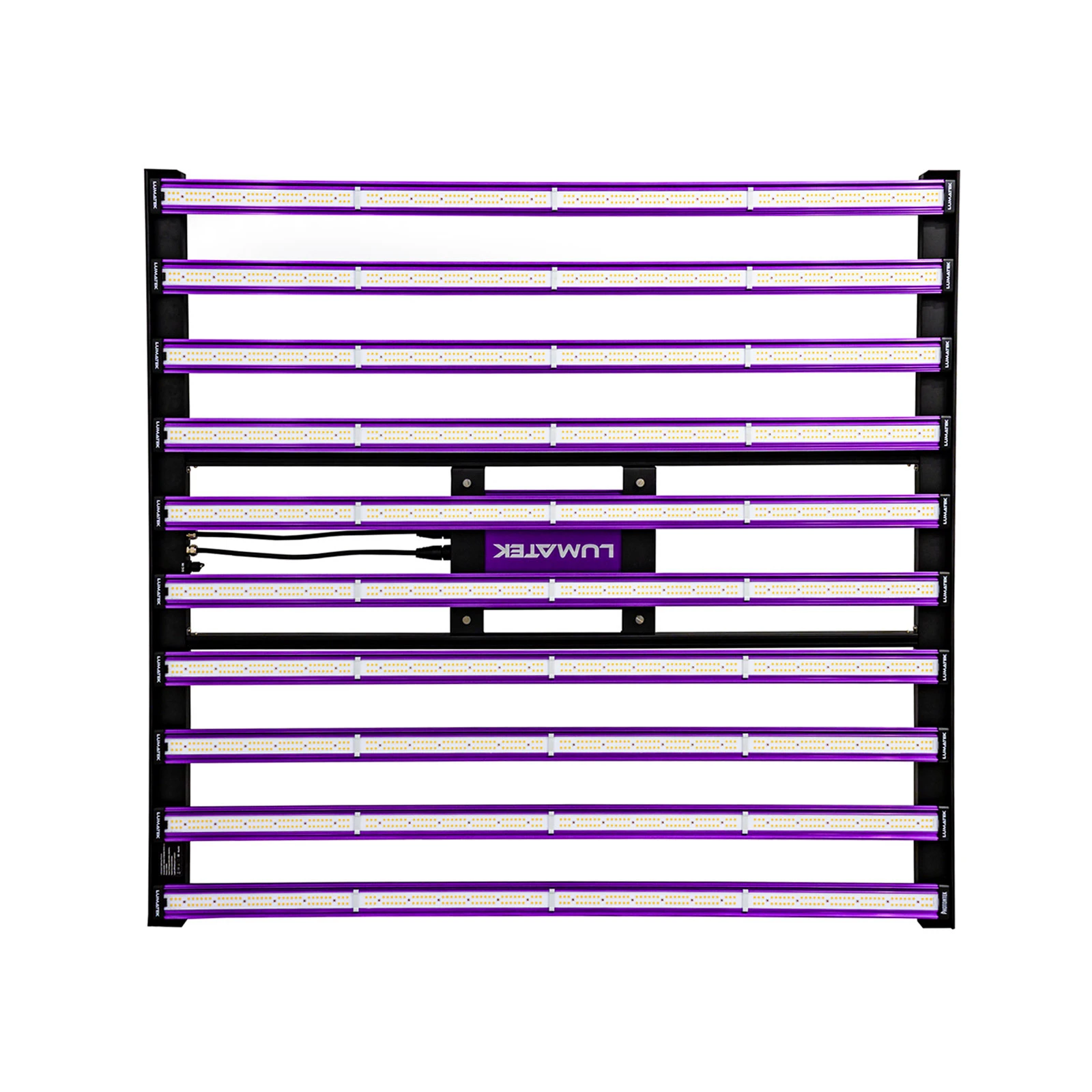

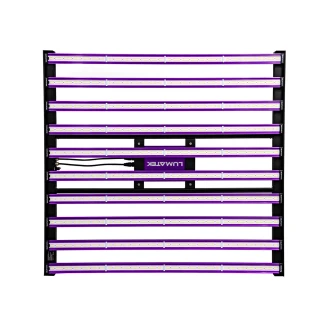

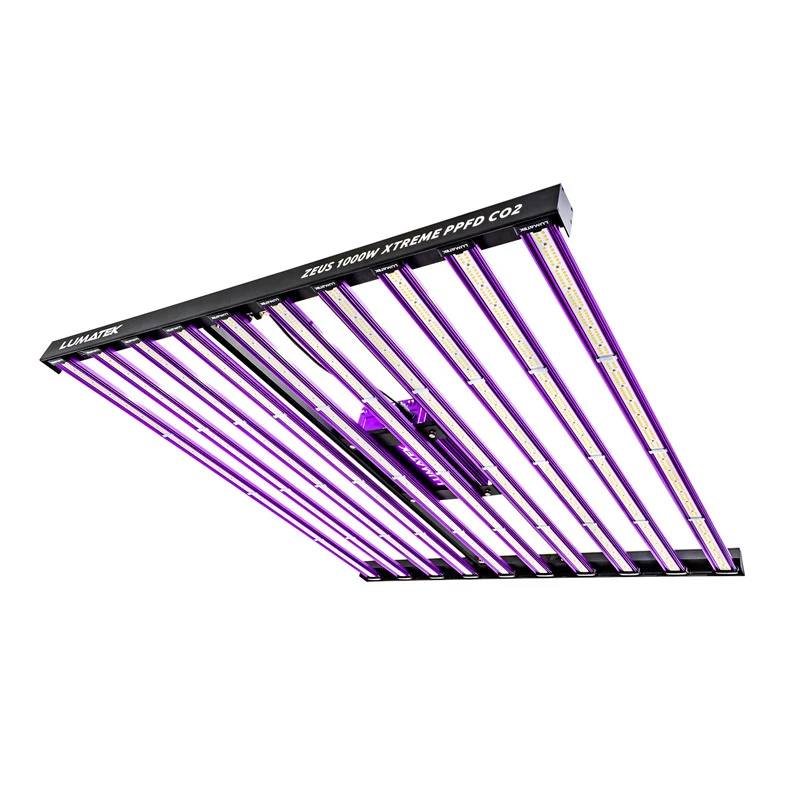

The Lumatek Zeus 1000W Xtreme PPFD LED CO2 is a linear multi-light bar fixture with an extremely high PPF output of2,925 mmol/s and an efficacy (fixture efficiency) of 2. 9 mmol/J.

With advances in fixture technology and performance,high-quality LED horticultural lighting is now a credible option offering a significant return on investment to growers.Lumatek's full-spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) to ensure even light distribution and uniform scattering.

The Zeus 1000W Xtreme PPFD CO2 produces extremely high levels of light intensity requiring the use of additional CO2 for those wishing to grow on 1.5 × 1.5 m cultivation areas with short light distances.

Carbon dioxide (CO2) supplementation:

The use of CO2 with this device is not mandatory, but to perform it without it, a longer canopy distance from the light is recommended, ensuring optimal PPFD levels according to the growth phase. Using the latter method, the optimal expected coverage area reaches 1.8 × 1.8 m but with lower levels of PPFD intensity concentration.

The additional use of carbon dioxide (CO2) in your controlled environment can significantly improve your crop yield if used correctly. In general, a good rule of thumb is that once you exceed PPFD levels of 1000 µmol / s / m2, you should be 1: 1 with CO2 PPM - up to 1500. So with PPFD max = 1500 µmol / s / m2, CO2 would be 1500 PPM (a little lower, 1400 PPM might be the safest way to start).

The Zeus luminaire can also be externally controlled with a Lumatek digital lighting controller (Digital Panel Plus 2.0) with light timing, automatic brightness adjustment (1% increments), temperature safety control, sunrise and sunset mode for up to 100 fixtures per controller.

Technical specifications Zeus 1000W Xtreme PPFD CO2 Lumatek:

• Efficacy: 2.9 µmol / J
• PPF: 2925 µmol / s
• Input voltage : 220-240 V, 50-60 Hz
• Power consumption: 1025 W
• Footprint: 1.5x1.5m with Supp. CO2; 1.8x1.8m without Supp. CO2 used at higher heights.
• Waterproof: IP65
• Service life: 60000 hours

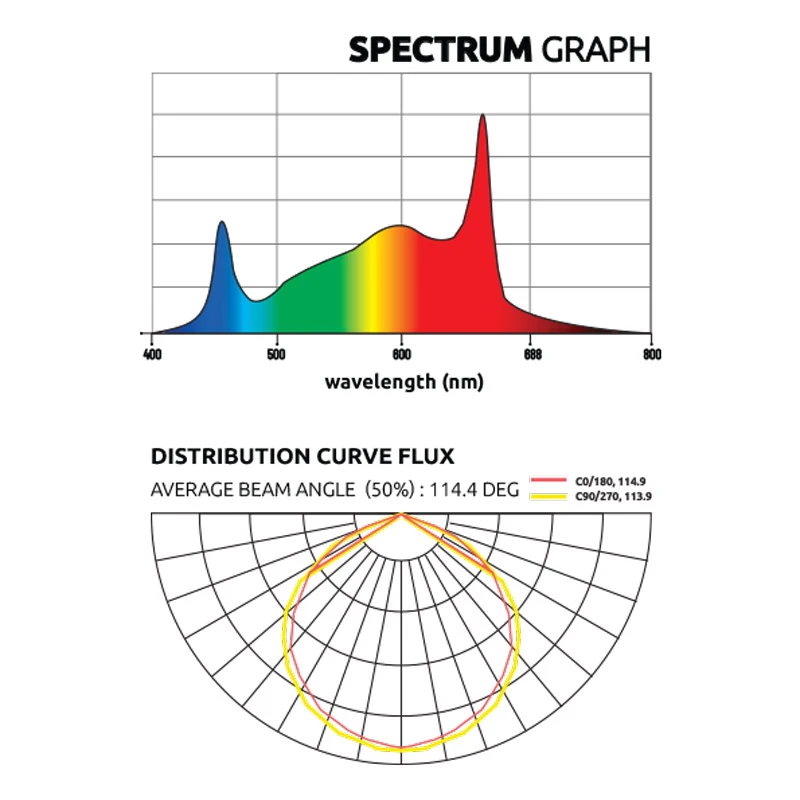

• Light distribution: 120°

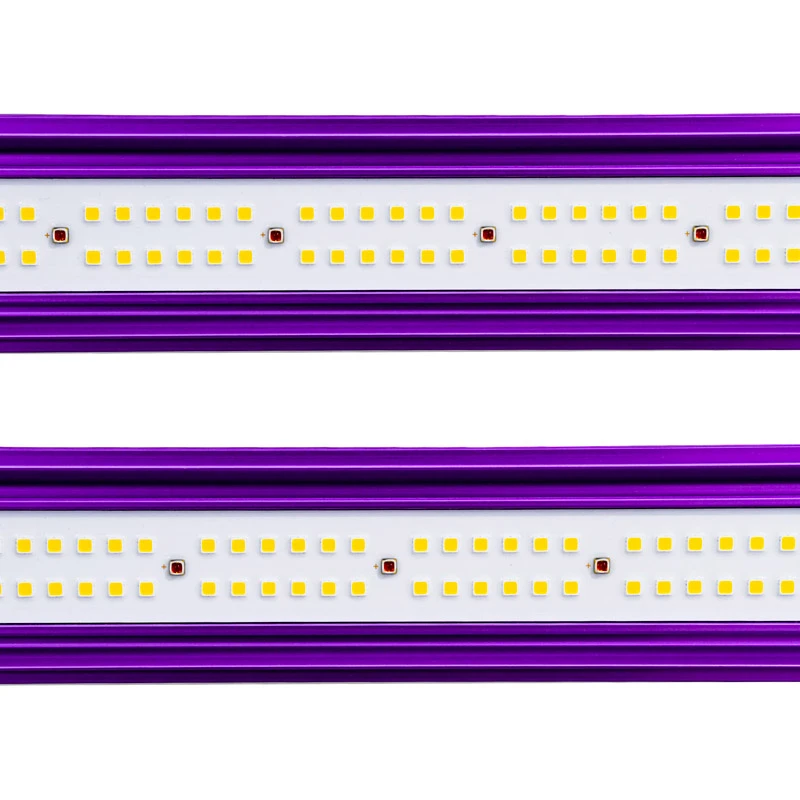

• Light source: Osram diodes and Lumileds with higher specifications
• Dimmable: OFF-25% -50% -75% -100% with 0-10V light dimmer (included)

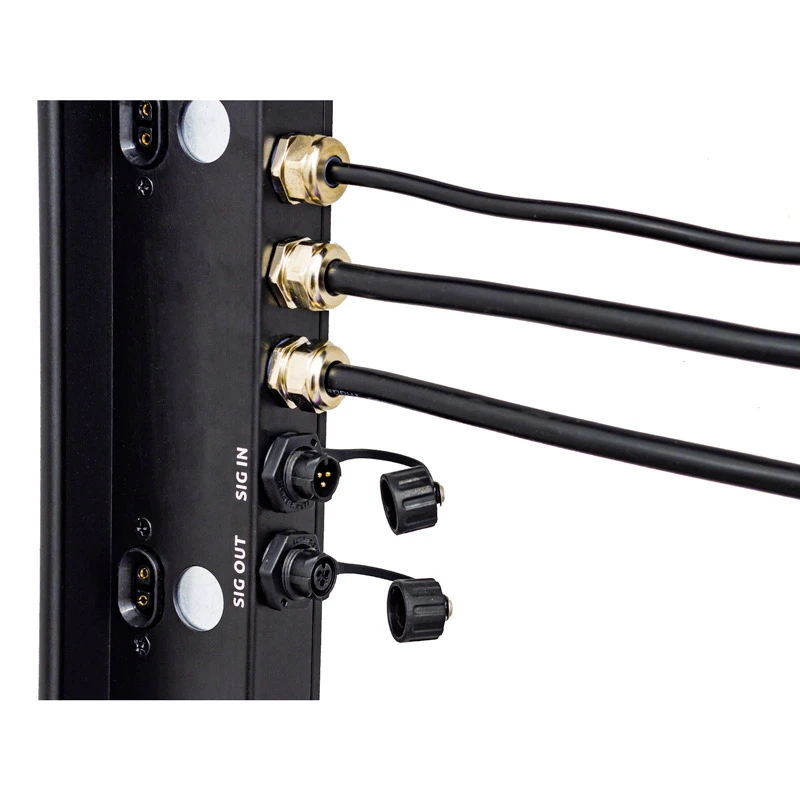

• External control: with Lumatek Digital Panel Plus 2.0
• Weight: 18 Kg
• Dimensioni: 1181,2x1091x105,7mm

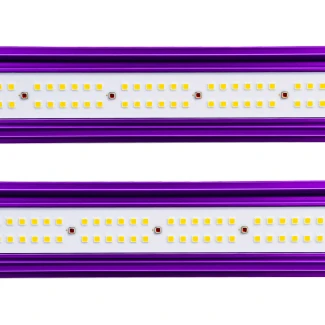

• 10 x Lumatek 100W Pro 2.9 full spectrum magnet light bars

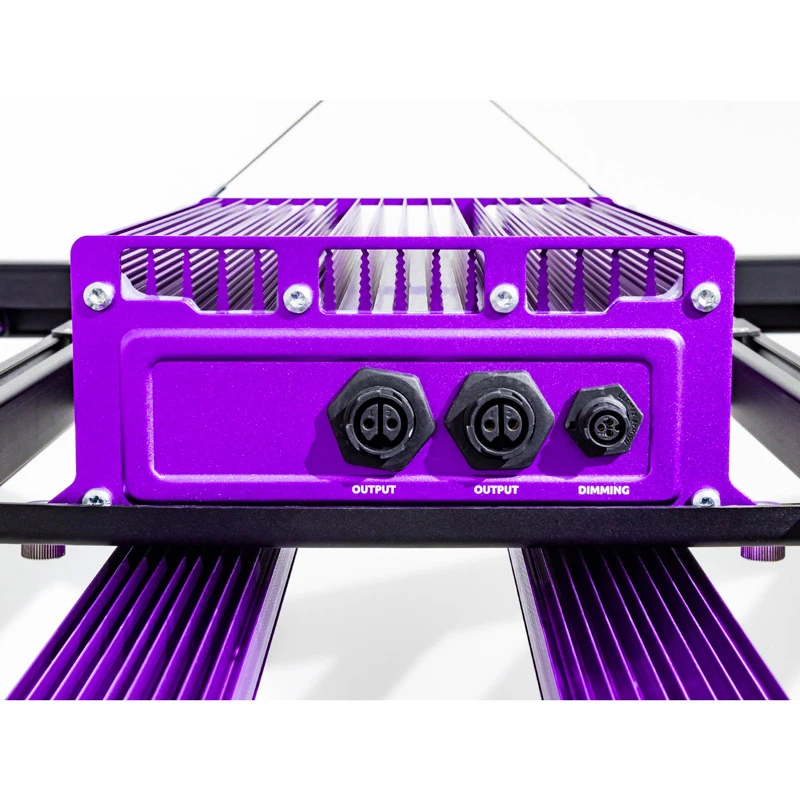

• 1 x Lumatek Xtreme Pro 1000W driver with connection cables
• 1 x LED structure with connection cables
• 1 x 0-10V light dimmer + velcro
• 2 x metal cable hooks

• 1 x manual

Key features Zeus 1000W Xtreme PPFD CO2 Lumatek:

• Very high efficacy 2.9 µmol / s / J
• High PPF output for 2925 µmol / s at high intensity
• High quality Lumatek LED driver
• Designed to provide extremely high PPFD for CO2-enriched grow spaces
• CO2 supplement: once a PPFD of 1000 µmol / s / m2 is exceeded, a 1: 1 CO2 PPM ratio must be added
• New Clear Glue protective cover technology on LED bars
• LED in the upper housing
• Full balanced spectrum
• External control with Lumatek Control Panel Plus 2.0
• Replaceable 100W Pro 2.9 magnetic light bars
• Fully dimmable
• Easy Plug & Play assembly
• Removable driver for remote use
