AGROLITE - FOUR-POWER DIMMABLE ELECTRONIC BALLAST 250-400-660W DEVILIGHT

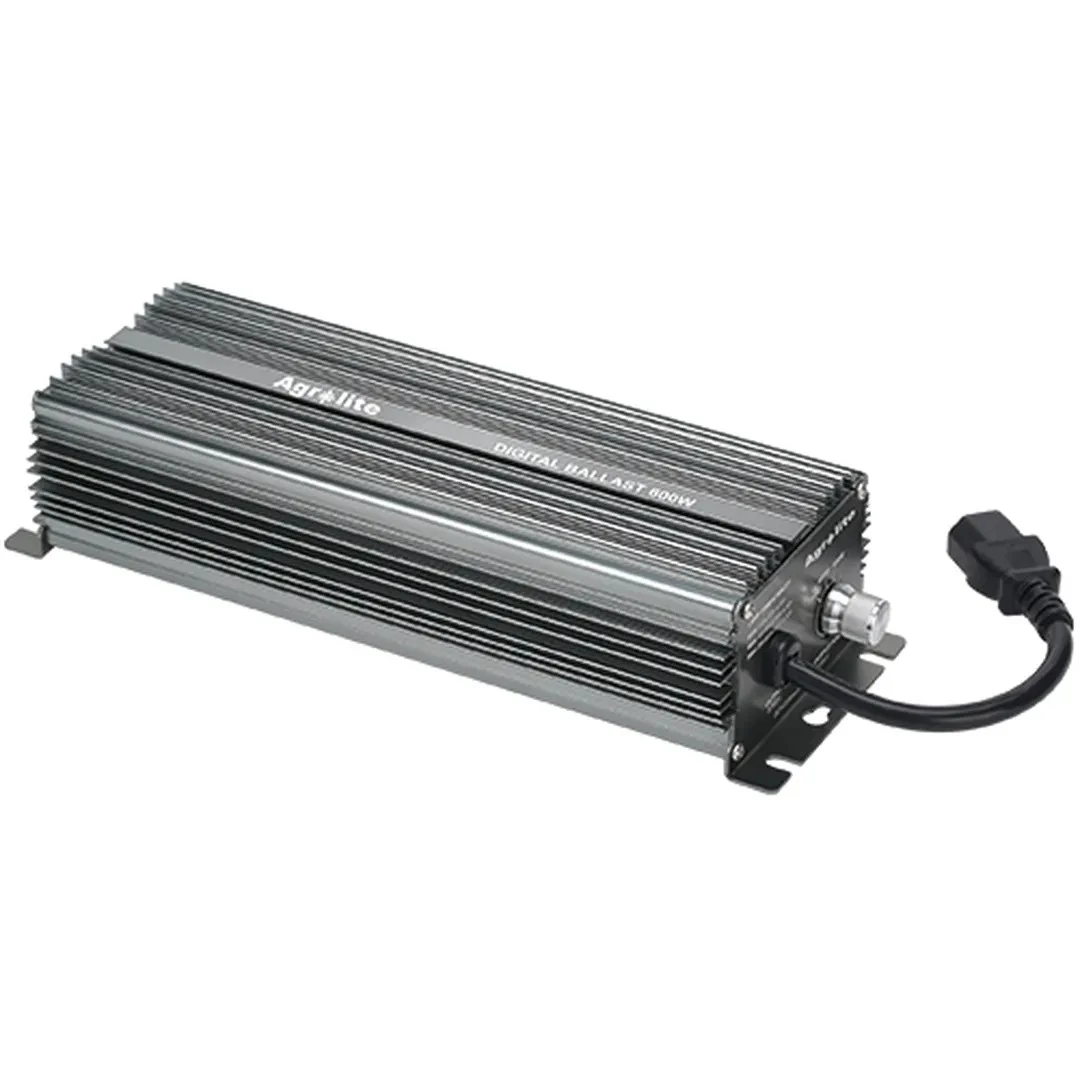

The Agrolite Devilight 600W electronic ballast is a high-performance solution for handling discharge lamps (HPS and MH). Thanks to state-of-the-art digital technology, this ballast provides superior luminous efficiency compared to older magnetic ballasts, while reducing power consumption and emitted heat.

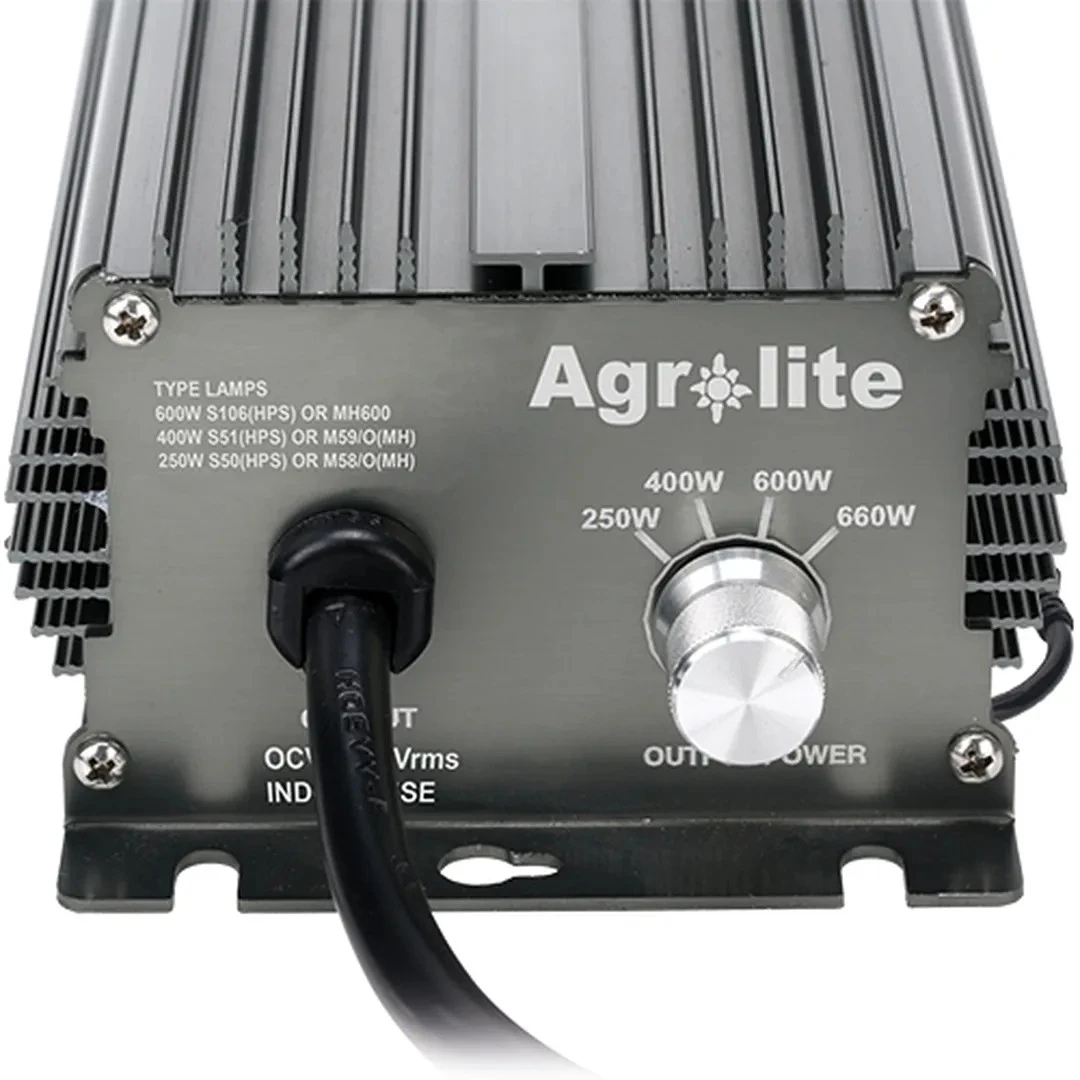

The Devilight model is equipped with a 4-position dimmer, which allows the light intensity to be adjusted according to the growth phase of the plants, optimising the cost and yield of the grow setup.

Key Features:

• Multistage Dimmer: Adjustable to 250W, 400W, 600W and Super Lumen (660W). The Super Lumen function allows you to squeeze the lamp to the maximum at the end of flowering (+10% yield).
• Soft-Start: Prolongs bulb life by reducing voltage peaks during start-up.
• High Energy Efficiency: Power factor >0.99, with minimal heat loss thanks to extruded aluminium dissipating shell.
• Integrated Protection: Equipped with safety systems against overheating, short-circuit, bulb failure and voltage drops.
• Plug & Play: Already wired with mains cable and IEC socket for quick connection to the reflector.

Technical Specifications:

• Maximum Power: 600W (660W in Boost mode).
• Compatibility: 600W HPS and MH lamps.
• Input Voltage: 220-240V.
• Quietness: Totally silent, hum-free operation.
• Dimensions: Compact and lightweight for easy wall or shelf mounting.

Advanced Technical Specifications:

• Main Voltage Range: 175-264V
• Input Voltage: 220/230/240V, 50/60Hz
• Input Current: 3A at 240V
• Total Harmonic Distortion (THD): < 8%.
• Lamp Crest Factor (CCF): < 1.6
• Operating Power Factor: > 0.98
• Operating Frequency: > 60kHz - 130kHz
• Open Circuit Voltage: 250Vrms (Max < 300V)
• Turn-on Time: 30ms
• Inrush Current: 6.5A
• Input Current Protection: 5A internal fuse
• Insulation Resistance: 5M ohm
• Isolation Voltage: 3.5KV
• Bulb Failure Detection: Yes
• Environmental Protection Rating: > IP23
• Enclosure Temperature Rise: 35ºC (95ºF)
• Operating Ambient Temperature Range: -25 to 40ºC
• Trigger Voltage: < 4KV
• Lamp Flicker / Acoustic Resonance: Absent
• RF Interference: None
