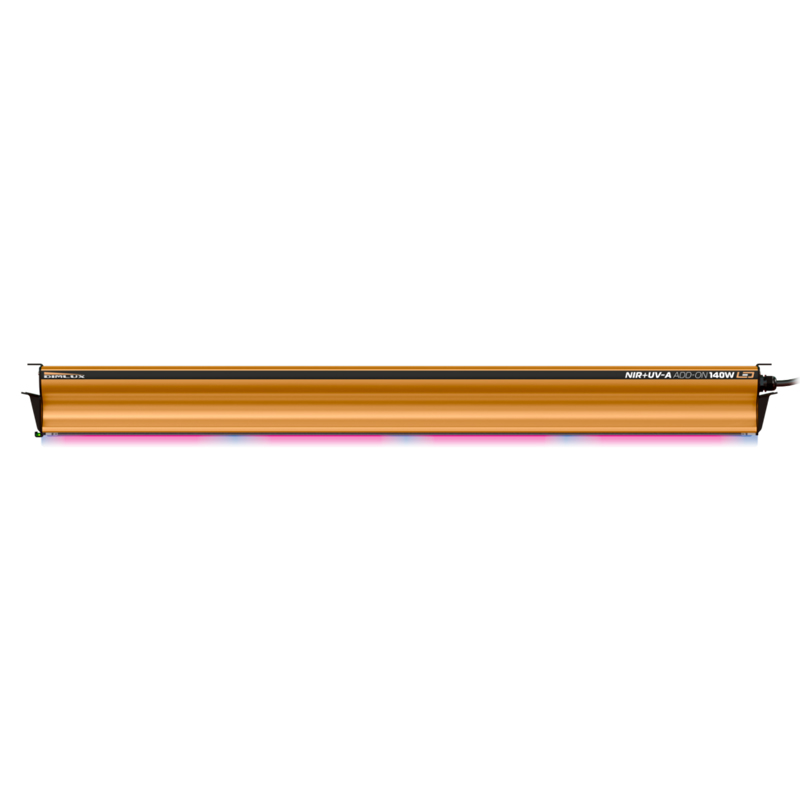

DIMLUX - XTREME NIR+UV-A ADD-ON LED

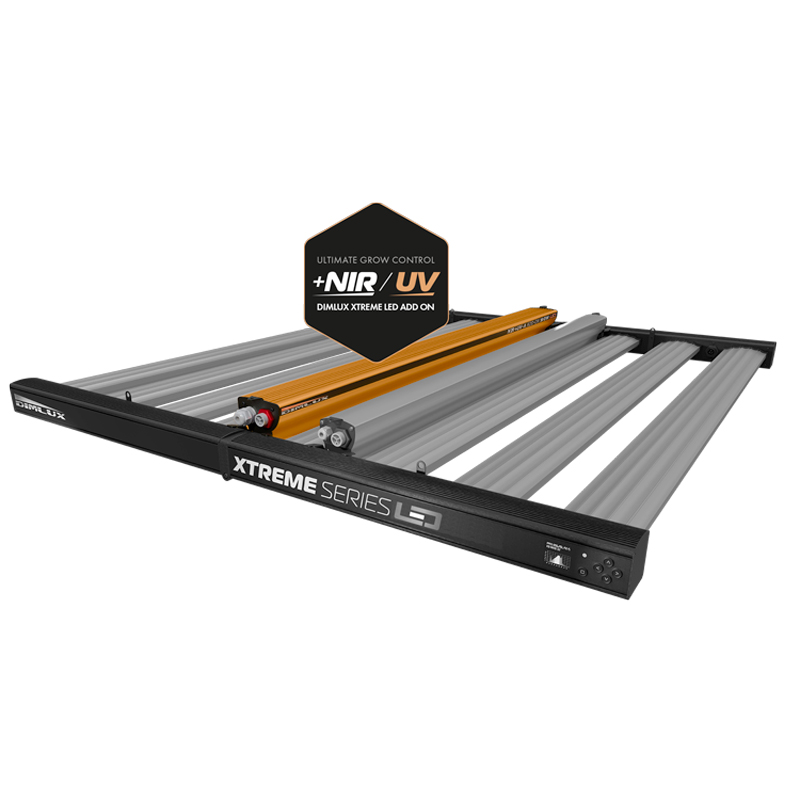

Perfect integration with the 500 W LED of the Xtreme series.
Suitable for competitive brands if beam spacing is 5 cm (1.97") and support arm spacing is 72 cm (28.34")
Product available to order, delivery time 7/10 working days.
Xtreme Series 500W LED connection cable included (Dimlux Interlink cable).
Power cable for single use sold separately.
FAR RED (NIR)
Can be used as a photosynthesis enhancer in combination with red light. Used after sunset it accelerates the night metabolism and sleep rhythm. Accelerates flower set and possibly shortens the night and lengthens the day for more photosynthesis (higher DLI).In the initial growth and flowering phase, plants can become taller. Conversely, plants can initially be kept very compact (far-red off) and when moving into the flowering phase (far-red on), the synergistic effect of the extra far-red can be exploited.
UV-A
Increases resistance to fungi and other pathogens. Increases the production of resin that brings out flavonoids and terpenes. Makes the plant stronger, healthier, shorter and increases root production. Leaves will turn a darker green due to increased pigmentation. Adds extra photons used in photosynthesis, resulting in higher yields.When combined with an additional UV-B component, UV-A helps protect against damage to DNA, proteins and nucleic acids in plant cells caused by UV-B. When UV-A and UV-B are combined in the right quantities and for the right duration, they have a synergistic stress-response effect that makes them even more powerful while being less damaging than UV-B alone.
Thanks to patented technology, advances in LED technology and optimal thermal design, the 500 W, 750 W and 1000 W Dimlux Xtreme Series LEDs will be the preferred option offering a significant return on investment to growers.The adjustable PhytoVegSpec® growth spectrum combines full control over light quality (spectral flexibility) and quantity (intensity and DLI) ensuring even light distribution with extreme penetration into the foliage.
ADVANTAGES OF USING THE SUPPLEMENTARY LED
Independent control of the NIR and UV-A channels allows the right amount of grow light to be mixed at any time during the growth cycle.
UV-A can be gradually increased as the plant progresses through the growth phase. NIR can be added during the flowering phase, to be used as a photosynthesis booster together with red.In addition, by adding NIR photons at the beginning of the night, the far-red phytochrome can be converted more quickly to its inactive red phytochrome form. As a result, the plant will 'fall asleep' faster, increasing photosynthesis during the day and improving metabolism at night.
Characteristics Xtreme NIR+UV-A ADD-ON LED Dimlux:
- 50 W FAR RED LED / 20 W UV-A LED
- Patented ultra-high transmittance broad-beam lens
- Integrated controller with light sensor
- Can be controlled by Maxi controller or third-party controller
- Daisy-chain power and Interlink connections
- installation of several lights from one socket
- Upgradeable via Wi-Fi or Interlink
- Built-in spirit level for horizontal adjustment
* Suitable for competitive brands if beam spacing is 5 cm (1.97") and support arm spacing is 72 cm (28.34")
Technical specifications Xtreme NIR+UV-A ADD-ON LED Dimlux:
- 70 W dual-band LEDlight source
- Adjustable FAR RED (NIR) and UV-Aspectrum
- Flux of FAR RED photons (670-760 nm). 123 µmol/s
- UV-A photon flux (370-405 nm). 33 µmol/s
- ACinput power supply 76 W at 230 V AC
- ACinput voltage 120-277 V AC, 50/60 Hz
- ACinput current 0.5 A at 120 V / 0.56 A at 277 V
- Optics Patented ultra-high transmittance wide-angle lens
- Suspension height Rcmd 120×120 cm minimum. 60 cm / 4'×4' minimum. 2'
- Suspension height Rcmd 100×100 cm minimum 50 cm / 40'×40' minimum. 20''
- Operating temperature 0-40°C / 32-107°F (without condensation)
- Thermal management Passive
- Total harmonic distortion (THD) < 10%.
- L90 life > 50,000 hours
- IPrating IP50
- Certifications CE, UL 8800, UL 1598 Wet locations
- Photobiological safety IEC 62471 - Risk Group 2
- WARNING UV emitted by these products
- Standard 3-yearwarranty
Product available to order, delivery time 7/10 working days.
Perfect integration with Xtreme Series 1000 and 750W LEDs.
Suitable for competitive brands if beam spacing is 5 cm (1.97") and support arm spacing is 108 cm (42.51")
Product available to order, delivery time 7/10 working days.
LED connection cable Xtreme Series 1000 and 750W included (Dimlux Interlink cable).
Power cable for single use sold separately.
Can be used as a photosynthesis enhancer in combination with red light. Used after sunset it accelerates the night metabolism and sleep rhythm. It accelerates flower set and possibly shortens the night and lengthens the day for more photosynthesis (higher DLI).In the initial growth and flowering phase, plants can become taller. Conversely, plants can initially be kept very compact (far-red off) and when moving into the flowering phase (far-red on), the synergistic effect of the extra far-red can be exploited.
UV-A
Increases resistance to fungi and other pathogens. Increases the production of resin that brings out flavonoids and terpenes. Makes the plant stronger, healthier, shorter and increases root production. Leaves will turn a darker green due to increased pigmentation. Adds extra photons used in photosynthesis, resulting in higher yields.When combined with an additional UV-B component, UV-A helps protect against damage to DNA, proteins and nucleic acids in plant cells caused by UV-B. When UV-A and UV-B are combined in the right quantities and for the right duration, they have a synergistic stress-response effect that makes them even more powerful while being less damaging than UV-B alone.
Thanks to patented technology, advances in LED technology and optimal thermal design, the 500 W, 750 W and 1000 W Dimlux Xtreme Series LEDs will be the preferred option offering a significant return on investment to growers.The adjustable PhytoVegSpec® growth spectrum combines full control over light quality (spectral flexibility) and quantity (intensity and DLI) ensuring even light distribution with extreme penetration into the foliage.
ADVANTAGES OF USING THE SUPPLEMENTARY LED
Independent control of the NIR and UV-A channels allows the right amount of grow light to be mixed at any time during the growth cycle.
UV-A can be gradually increased as the plant progresses through the growth phase. NIR can be added during the flowering phase, to be used as a photosynthesis booster together with red.In addition, by adding NIR photons at the beginning of the night, the far-red phytochrome can be converted more quickly to its inactive red phytochrome form. As a result, the plant will 'fall asleep' faster, increasing photosynthesis during the day and improving metabolism at night.
Characteristics Xtreme NIR+UV-A ADD-ON LED Dimlux:
- 100 W FAR RED LED / 40 W UV-A LED
- Patented ultra-high transmittance broad-beam lens
- Integrated controller with light sensor
- Can be controlled by Maxi controller or third-party controller
- Daisy-chain power and Interlink connections
- installation of several lights from one socket
- Upgradeable via Wi-Fi or Interlink
- Built-in spirit level for horizontal adjustment
* Suitable for competitive brands if beam spacing is 5 cm (1.97") and support arm spacing is 108 cm (42.51")
Technical Specifications Xtreme NIR+UV-A ADD-ON LED Dimlux:
- 140 W dual-band LEDlight source
- Adjustable FAR RED (NIR) and UV-Aspectrum
- FAR RED photon flux (670-760 nm) 247 µmol/s
- UV-A photon flux (370-405 nm). 66 µmol/s
- ACinput power 152 W at 230 V AC
- ACinput voltage 120-277 V AC, 50/60 Hz
- ACinput current 1.3 A at 120 V / 0.56 A at 277 V
- Optics Patented ultra-high transmittance wide-angle lens
- Suspension height Rcmd 150×150 cm minimum 75 cm / 5'×5' minimum. 2,5'
- Suspension height Rcmd 120×120 cm minimum 60 cm / 4'×4' minimum. 2'
- Operating temperature 0-40°C / 32-107°F (without condensation)
- Thermal management Passive
- Total harmonic distortion (THD) < 10%.
- L90 life > 50,000 hours
- IPrating IP50
- Certifications CE, UL 8800, UL 1598 Wet locations
- Photobiological safety IEC 62471 - Risk Group 2
- WARNING UV emitted by these products
- Standard 3-yearwarranty
Product available to order, delivery time 7/10 working days.
