IMPRESIND - ELITURBO ELC2000 AIR DESTRATIFICATOR | 7500mc/h

ELITURBO is a blender - air destratifier capable of equalising vertically and horizontally the air temperature and humidity inside large rooms and reducing the energy cost of heating them by up to 40%. ELITURBO employs a special helicentrifugal impeller patented by Impresind that generates the complete mixing of room air without producing annoying currents for people and, unlike other ceiling fans - destratifiers, does not direct air flows downwards and concentrated in narrow areas, but distributes the air in a radial manner with an almost imperceptible ventilation, in compliance with safety and environmental hygiene standards.

The unique air mixing produced by ELITURBO improves environmental conditions even during the summer season by increasing the exchange of air through windows and other openings, producing constant and pleasant ventilation in the working environment.

Advantages of using Eliturbo:

• Great air recirculation guaranteed by the special patented impeller
• Does not produce annoying draughts, ensuring almost imperceptible ventilation at person level
• Transports air and distributes it in the room without the need for ducting

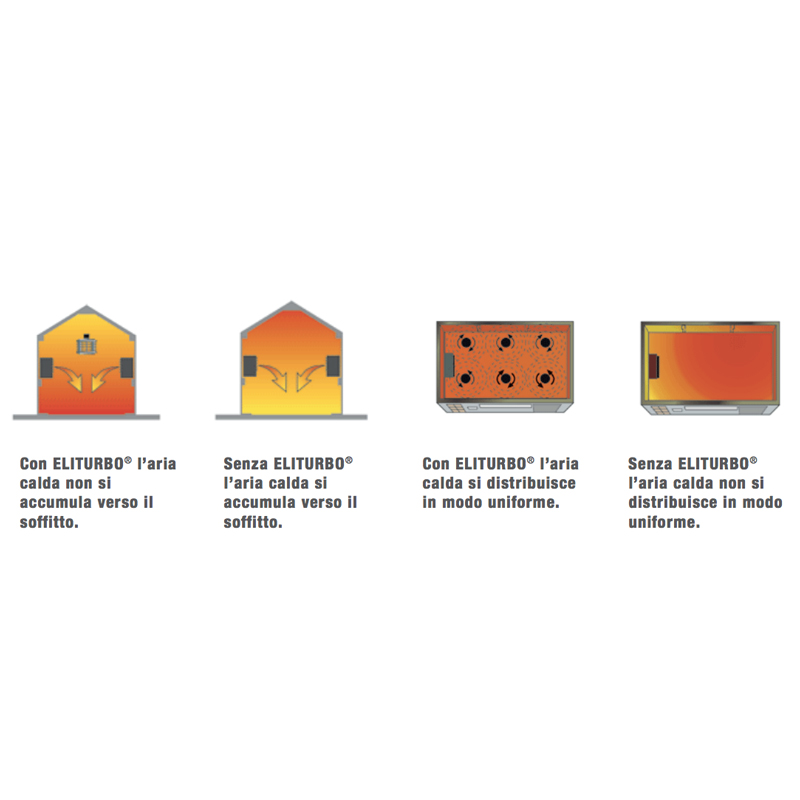

• Reduces air stratification resulting in heating energy savings of up to 40%
• Equalises the temperature and humidity in the building vertically and horizontally
• Pre-assembled for easy installation
• Reduced ammonia vapour concentration, improved breathing by animals and operators
• General wellbeing for operators through improved microclimate and elimination of odours

Technical specifications Eliturbo Elc2000:

• Power consumption 220W
• Power supply 230V-1_50Hz
• Ceilingfan type Air agitator
• Motor protection degree IP55
• Impeller version no. of blades 2
• Total moving air m3/h 7500
• Motor speed RPM 700
• Air flow m3/min 82
• Operating values (m3/min)/W 0.37
• Average air speed m/sec 0.64
• Sound power db(A) 62.5
• Diameter Ø mm 680
• Height h mm 560
• Weight kg 16
• External finish Epoxy powder coating
• Ref. Standards IEC60879 - EN ISO1680

Fields of application

Industry: ELITURBO® prevents stratification of hot air in the ceiling, improves the quality and well-being of the working environment and produces high energy savings.
Animal husbandry: On livestock farms ELITURBO® promotes the evacuation of odours and the reduction of acid condensation
Greenhouses: ELITURBO® evenly distributes warm air and humidity and reduces condensation and dripping.
Sports facilities: ELITURBO® reduces heating costs and condensation.
Museums: ELITURBO® promotes air circulation and reduces the formation of moisture and mould on frescoes and works of art.

Yield times: to be checked with the manufacturer.
