ORTOLED - BASESTAR
Recalculation in progress … Ortoled BASESTAR is the Ortoled line dedicated to the indoor grower who likes to keep up with the times.
The lamp is a perfect synthesis of energy saving and light output thanks to the new circular module consisting of
3 COB EPI® +18 SMD.
The 110° lenses guarantee unique light penetration and distribution, offering a never before seen PPFD/W ratio, while the total luminous flux is of the TOTAL AGRO type covering wavelengths from 380 to 780 nm.

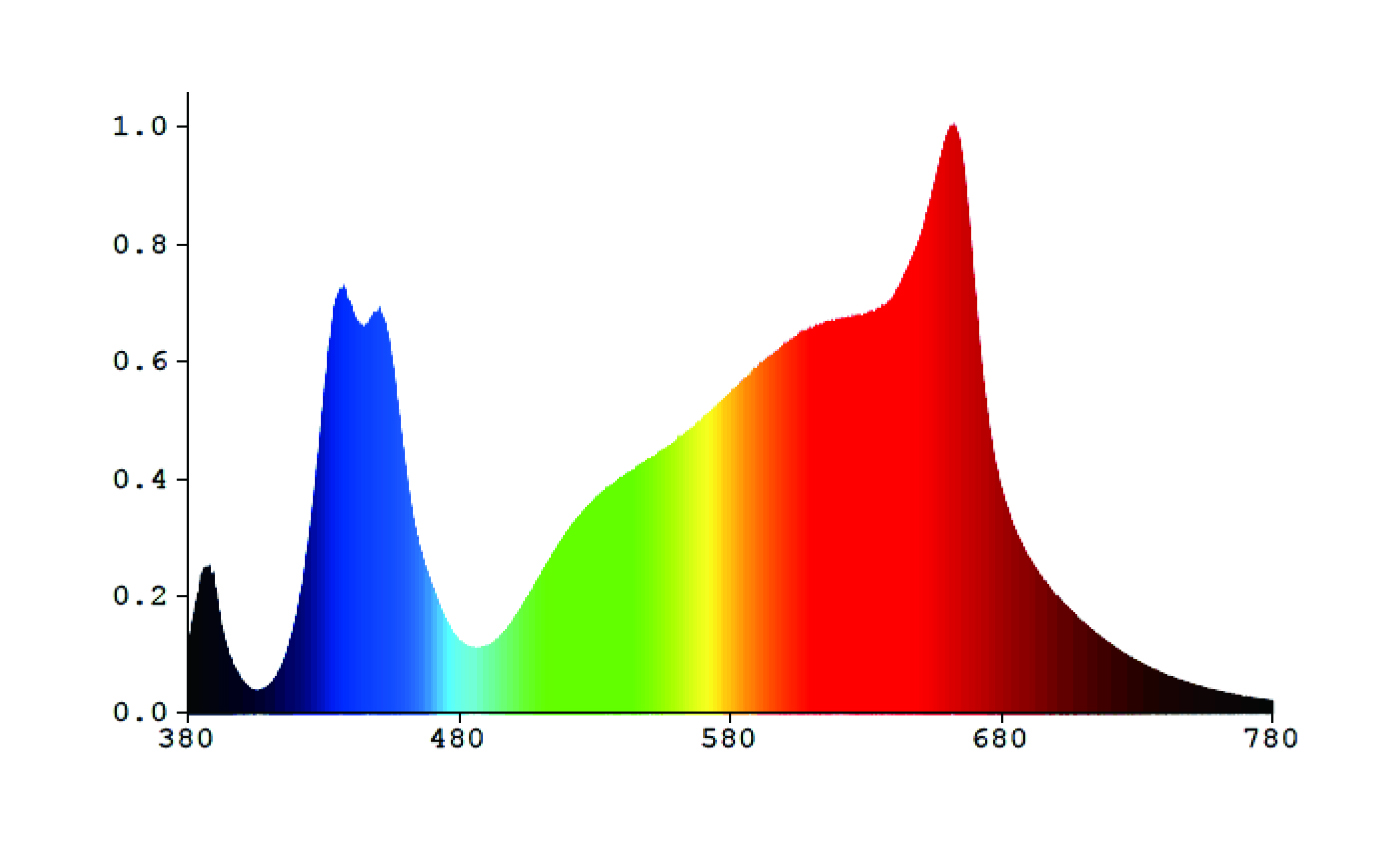

LIGHT SPECTRUM
The real revolution of the BASESTAR line is its user-friendliness and price/quality ratio. Thanks to the metal housing, after the 50,000-hour usage cycle, power supplies and LEDs can be replaced quickly and easily by accessing them directly from the compartment on the top panel.
All Ortoled products are CE certified and, where indicated, UL listed.
Ortoled Basestar 180W REAL datasheet
voltage: 85-265V AC
power: 180W real consumption

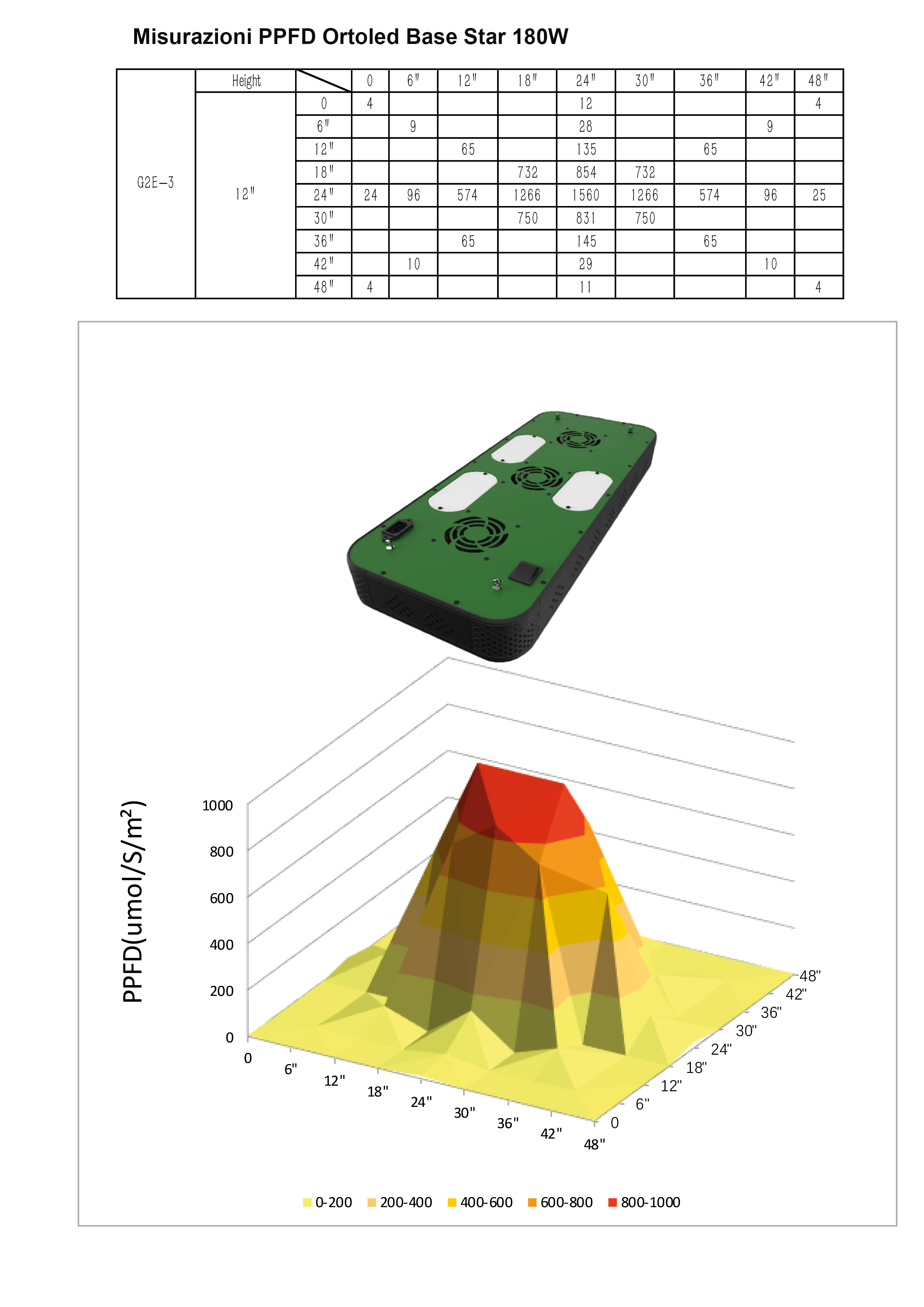

PPFD max at 30cm: 1488 umol/s/m2
weight: 4.2 KGS
dimensions: 65x23x7 cm
number leds: 3 COB EPI® +18 SMD pcs
power equivalent conventional lamps: 280W HPS-MH lamps
Ideal for illuminating an area of 0.6x0.8 m2
ORTOLED BASESTAR 240W REAL
Ortoled BASESTAR is the Ortoled line dedicated to the indoor grower who likes to keep up with the times.
The lamp is a perfect synthesis of energy saving and light output thanks to the new circular module consisting of
4 COB EPI® +24 SMD.
The 110° lenses guarantee unique light penetration and distribution, offering a never before seen PPFD/W ratio, while the total luminous flux is of the TOTAL AGRO type covering wavelengths from 380 to 780 nm.
The real revolution of the BASESTAR line is the simplicity of use and the quality/price ratio. Thanks to the metal casing, after the 50,000 hours of use cycle, it is possible to quickly and easily replace ballasts and LEDs by accessing them directly from the compartment on the top panel.
All Ortoled products are CE certified and, where indicated, UL listed.
ORTOLED RECOMMENDS THE USE OF A HIGH QUALITY TIMER
TO PRESERVE THE LAMP BALLAST.
DO NOT USE WITH CHEAP, LOW QUALITY TIMERS.
Technical data sheet Ortoled Basestar 240W REAL
voltage: 85-265V AC
power: Real consumption 240W

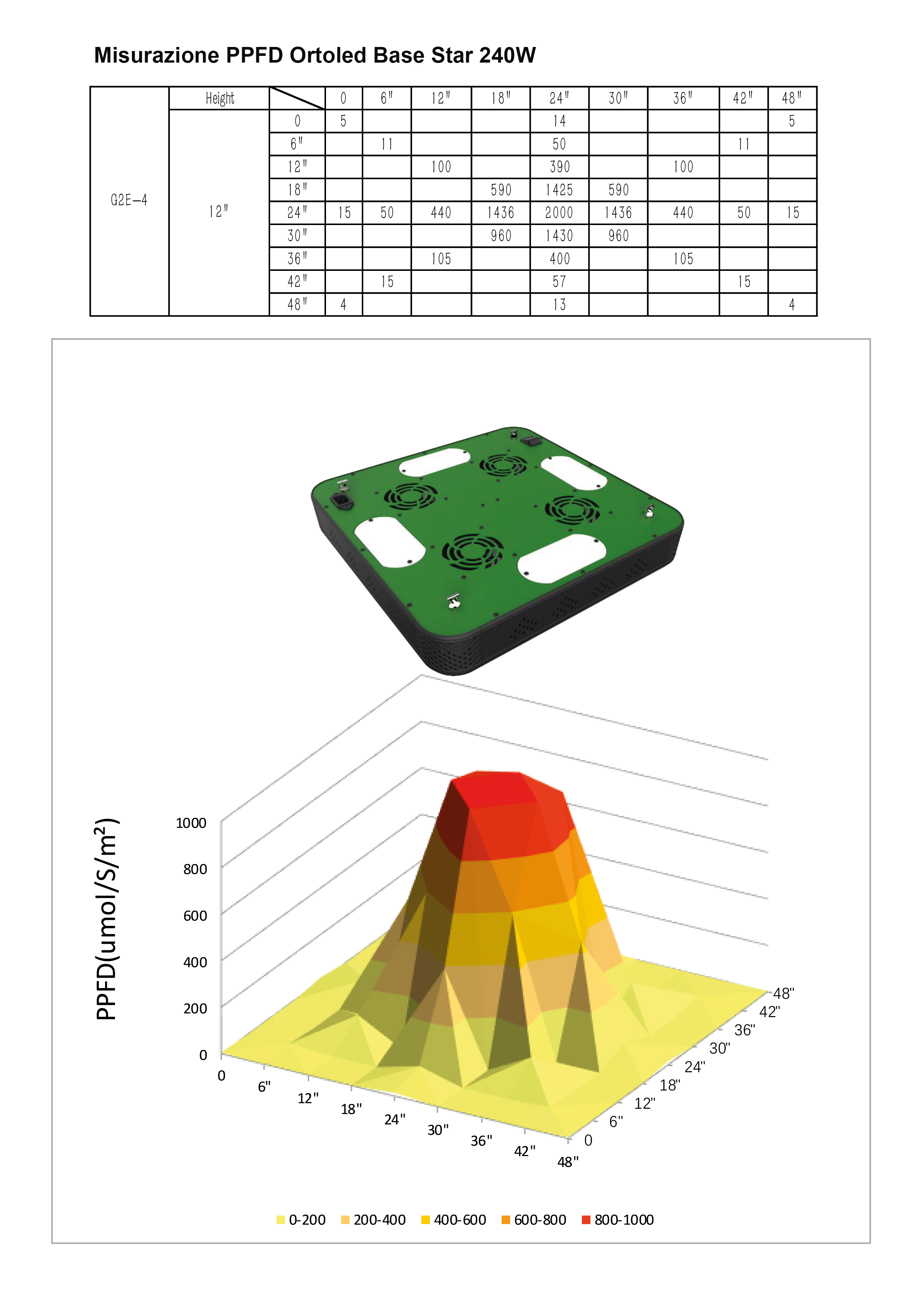

PPFD max at 30cm: 2000 umol/s/m2
weight: 5.4 KGS
dimensions: 39x39x7 cm
number of leds: 4 COB EPI® +24 SMD pcs
Plant Lighting Efficacy - Electrical Efficiency: 1.9 umol/J
wattage equivalent conventional lamps: 400W HPS-MH lamps
Ideal for lighting an area of 0.9x0.9 m
ORTOLED BASESTAR 360W REAL
Ortoled BASESTAR is the Ortoled line dedicated to the indoor grower who likes to keep up with the times.
The lamp is a perfect synthesis of energy saving and light output thanks to the new circular module consisting of
6 COB EPI® +36 SMD.
The 110° lenses guarantee unique light penetration and distribution, offering a never before seen PPFD/W ratio, while the total luminous flux is of the TOTAL AGRO type covering wavelengths from 380 to 780 nm.
The real revolution of the BASESTAR line is the simplicity of use and the quality/price ratio. Thanks to the metal casing, after the 50,000 hours of use cycle, it is possible to quickly and easily replace ballasts and LEDs by accessing them directly from the compartment on the top panel.
All Ortoled products are CE certified and, where indicated, UL listed.
ORTOLED RECOMMENDS THE USE OF A HIGH QUALITY TIMER
TO PRESERVE THE LAMP BALLAST.
DO NOT USE WITH CHEAP, LOW QUALITY TIMERS.
Technical data sheet Ortoled Basestar 360W REAL
voltage: 85-265V AC
power: 360W real consumption
PPF: 680 umol
weight: 6.8 KGS
dimensions: 39x39x7 cm
number of leds: 6 COB EPI® +36 SMD pcs
Plant Lighting Efficacy - Electrical Efficiency: 1.9 umol/J
wattage equivalent conventional lamps: 540W HPS-MH lamps
Ideal for lighting an area of 1.2X1.2 m
