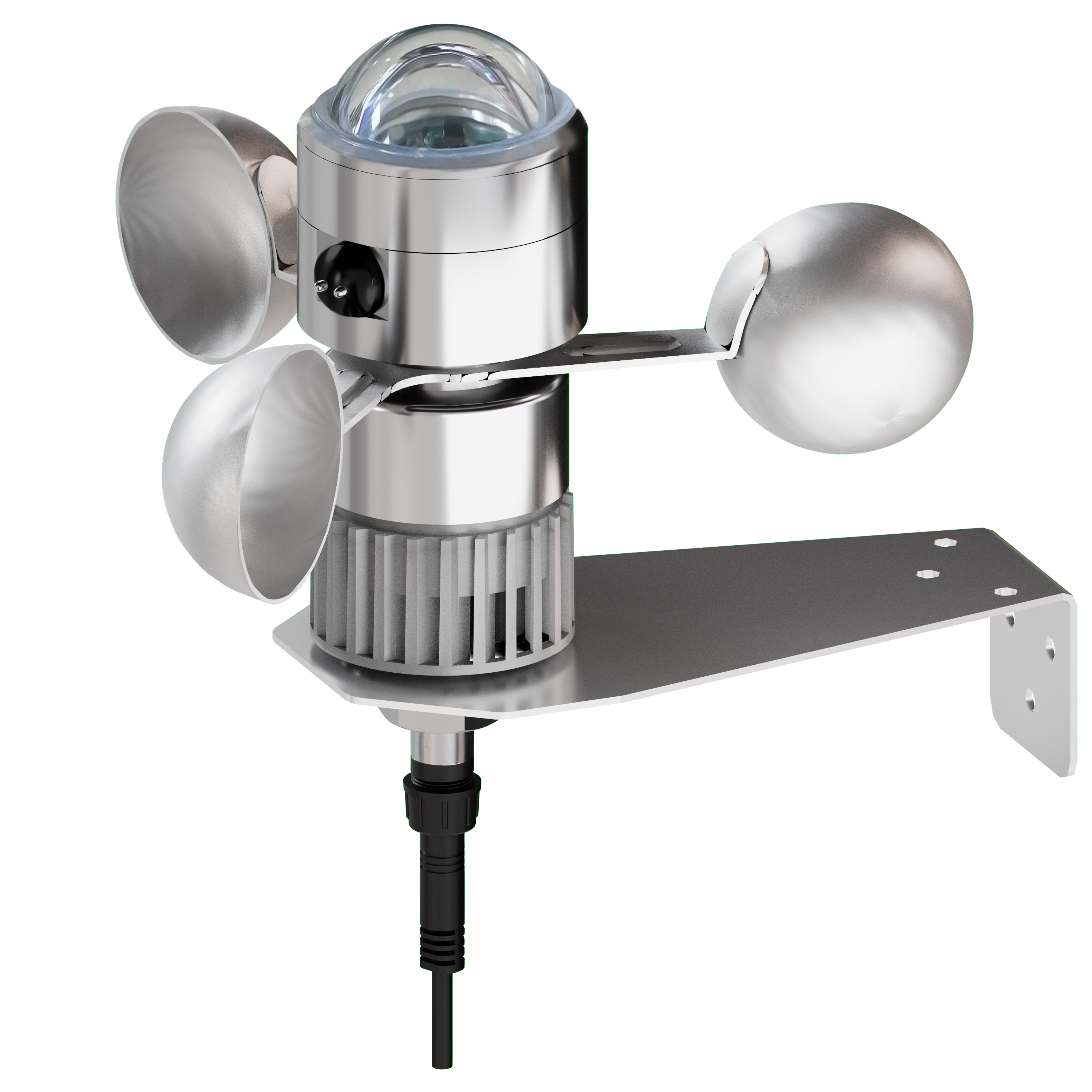

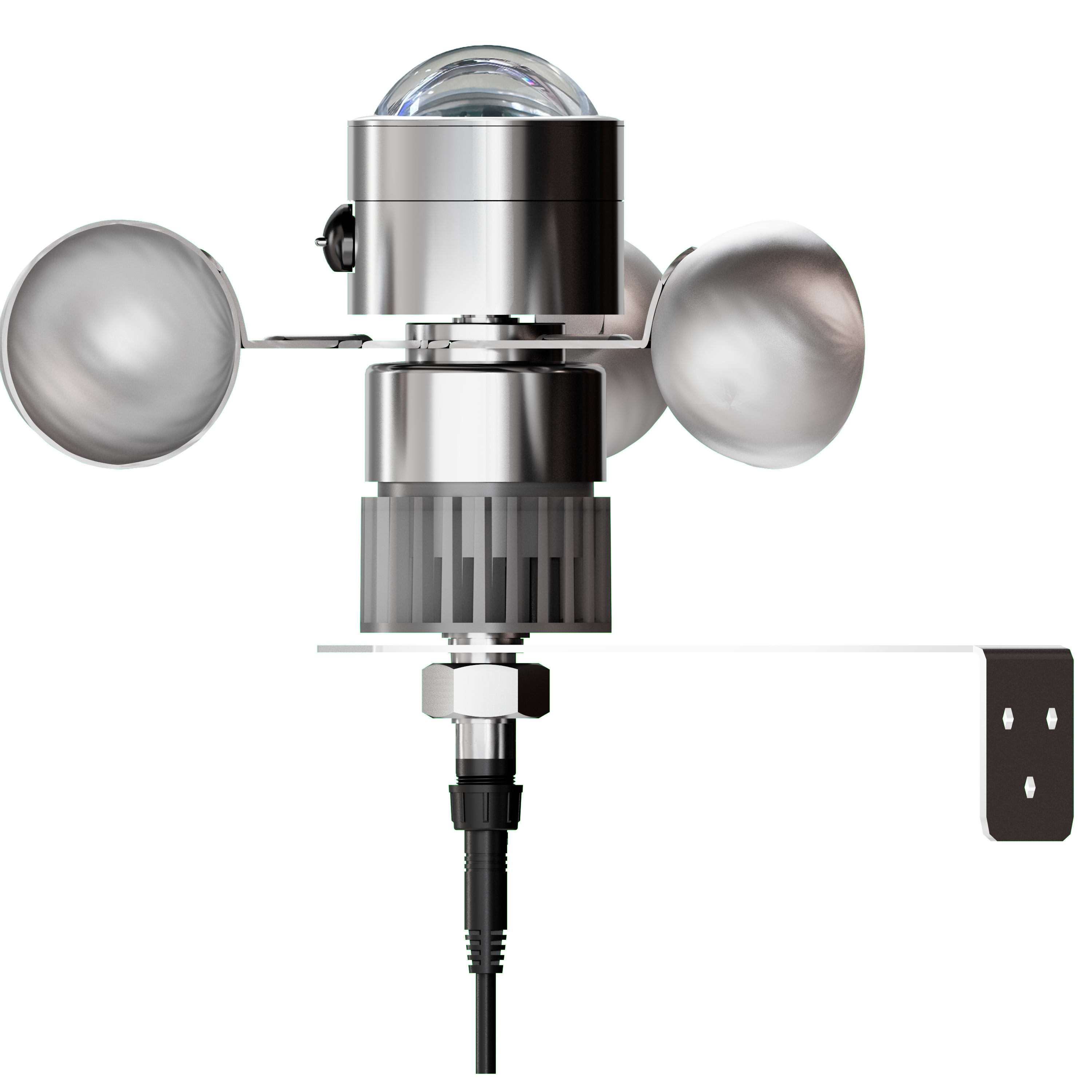

TROLMASTER - WEATHER STATION SENSOR FOR GREEN-X CONTROLLER - MBS-WS

The TrolMaster MBS-WS Weather Station Sensor is a compact, integrated weather sensor designed to provide accurate and reliable outdoor environmental measurements.
This 4-in-1 device combines temperature, humidity, wind speed and precipitation detection in a single unit, providing real-time weather data to the TrolMaster GCS-1 control systems.

Thanks to stable and fast RS485 digital communication, the MBS-WS ensures continuous and accurate data transmission, allowing the controller to automatically adjust ventilation, blinds and windows according to external weather conditions.

Designed to withstand adverse weather conditions, the MBS-WS offers durability, precision and simplified installation.

Key features

• Measures temperature, humidity, wind speed and rain

• Direct integration with the TrolMaster GCS-1 system

• RS485 digital communication for stable, real-time data

• Instant and constantly updatedweather readings

• Compact and rugged design with IP54 rating

• Plug-and-Play, easy installation and quick wiring

• Durable materials for extended outdoor use

Package Contents

• 1 × Weather Station Sensor (MBS-WS)

• 1 × RJ12-IP65 4-pin 3.6 m (12 ft) cable

• 1 × Horizontal alignment tool

• 1 × Mounting bracket

Technical Specifications

• Input voltage: 12 V DC ± 0.1 A

• Rated power consumption: < 1 W

• Degree of protection: IP54

• Wind speed range: 0-15 m/s (0-54 km/h / 0-33.55 mph)

• Number of anemometer cups: 3

• Temperature range: -20 ~ +50 °C (-4 ~ 122 °F)

• Temperature accuracy: ±3 °F

• Humidity range: 0-90 % RH

• Humidity accuracy: ±5 % RH

Advantages

• Comprehensive and constant weather monitoring

• Improves greenhouse climate automation

• Allows automatic weather-based adjustments

• Simple installation and minimal maintenance

• Ideal for TrolMaster GCS-1 Green-X Controller systems
