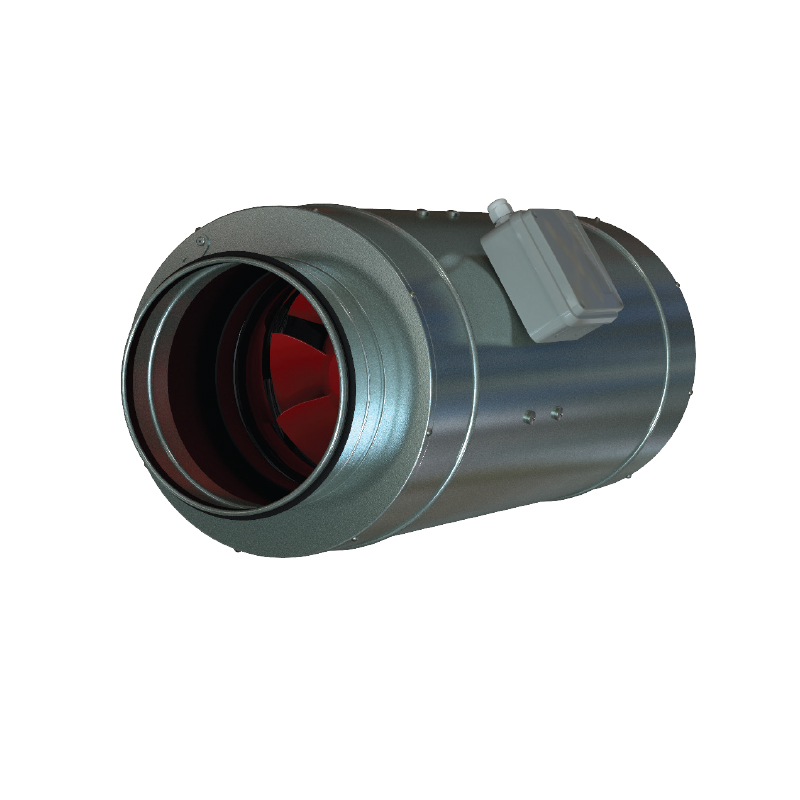

VENTS - BOOST-I EC Soundproofed ASPIRATOR | Ø 250mm - 1750mc/h

Mixed type duct fans with EC motors in enclosures with acoustic and thermal insulation

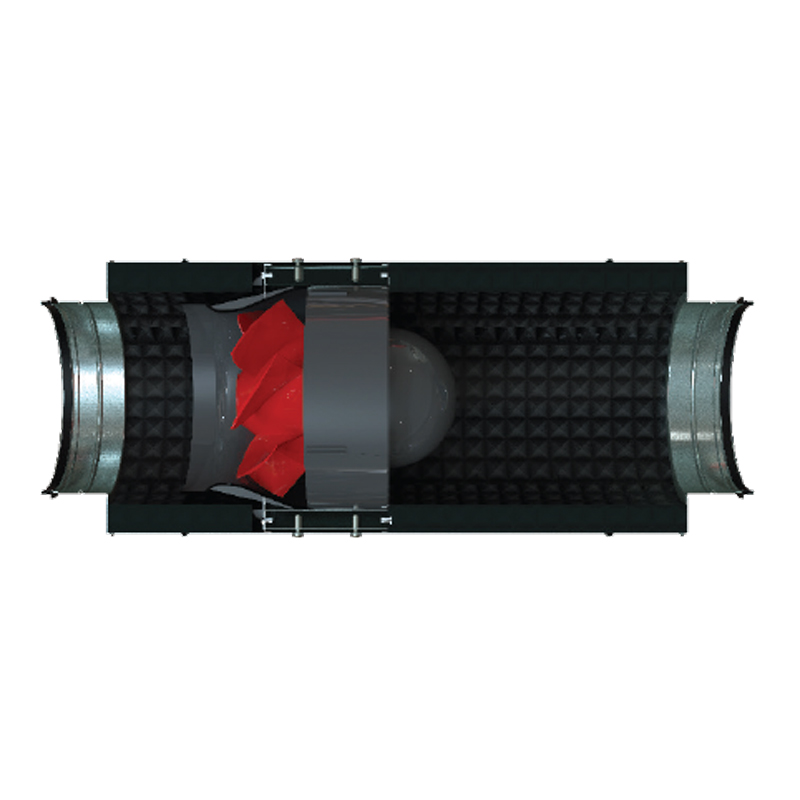

VENTS Boost-I inline fans are enclosed in a specially designed sound-insulated enclosure that ensures quiet fan operation in combination with high aerodynamic characteristics.

VENTS Boost-I fans combine large capacities and high-performance characteristics of axial and centrifugal fans, thus providing powerful airflow and high pressure.

The outer casing is made of galvanised steel. Acoustic and thermal insulation is provided by 30 mm acoustic material.

Thanks to the improved mixed-type impeller, which is a hybrid of axial and centrifugal impeller, the Boost-I has a low energy consumption and noise level with high performance.

The specially designed diffuser, impeller and airflow rectifier at the fan outlet provide even airflow distribution and allow the best combination of high airflow, higher pressure and low noise.

The fan housing is equipped with an airtight terminal box for connection to the mains.

Caution: The extractor fan is not wired

Features Boost-I Vents:

• Sound pressure level at 3 m distance 45dBA
• Max. power consumption 168 W
• Maximum air flow 1670 m³/h
• Duct diameter 250 mm
• Weight 9.5 kg
• Sound insulation
• Motor type: EC
• Impeller type: Mixed flow
• Casing material: Galvanised steel
• Control: Speed controller
