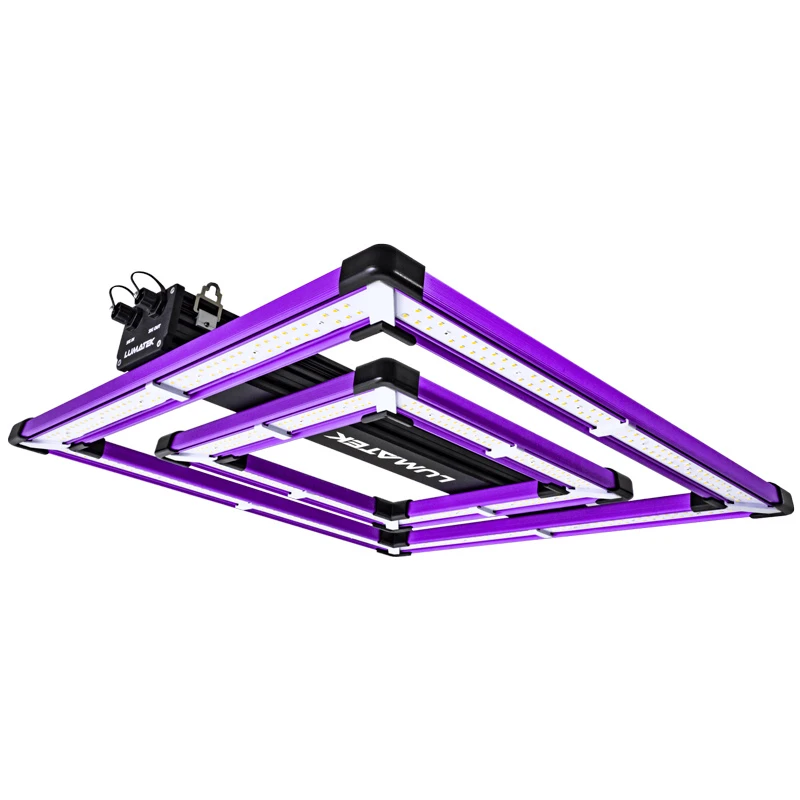

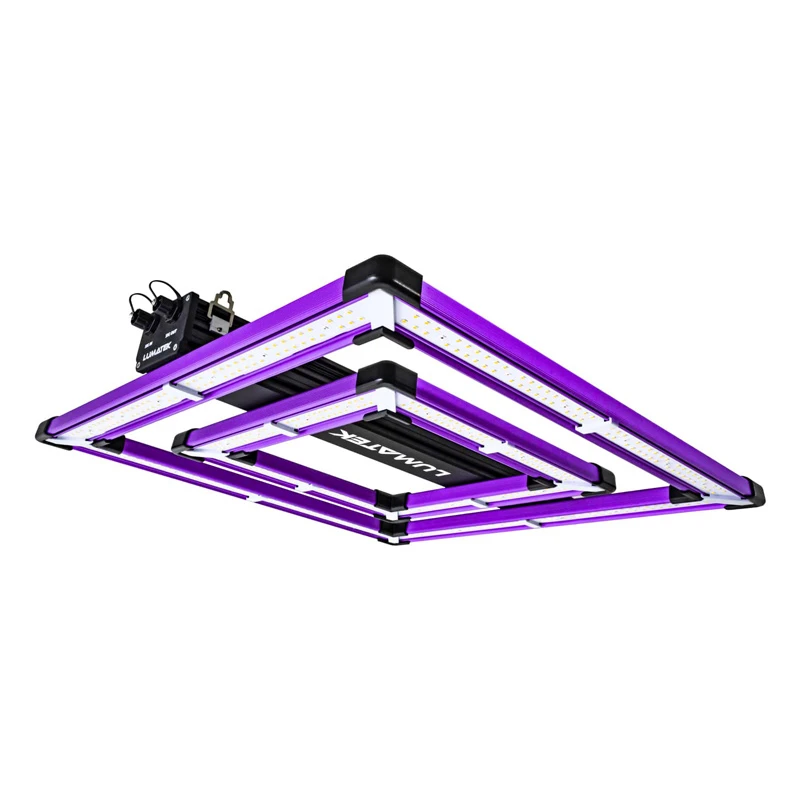

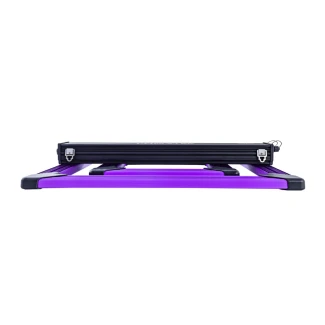

LUMATEK - ATTIS 200W PRO LED

Lumatek presents the perfectLED fixture for confined growing areas, the ATTIS 200W Pro.

The ATS200W is a lightweight fixture that produces high PPF levels of508 umol/s and a photonic efficacy of 2. 5 mmol/J , perfectly covering up to 0.8 × 0.8 m of grow area.

With advances in luminaire technology and performance, high-quality LED lighting forhorticulture is now a credible option offering a significant return on investment to growers.Lumatek ATS Pro full-spectrum horticulture LED solutions balance light quality (spectra) with sufficient light quantity (intensity and duration) to provide unique or supplementary growing illumination for propagation, vegetative growth and flowering periods of indoor crops.

The new ATS Pro range creates an even spread of light a short distance from the crop, allowing good penetration of the canopy without hot spots and excessive heat. The innovative heat sink and use of passive natural convection have eliminated the need for a fan, reducing noise and greatly increasing the luminaire's lifespan as it has no moving parts.For different cultivars, propagation periods and vegetative growth, this agile device can be dimmed without losing efficiency. The high-efficiency, low-power LED configuration reduces the temperature of the LEDs while increasing power and improving light retention.
ATS's new Pro line is built using high-quality Lumatek controllable drivers and the latest generation of high-efficiency white, red and far-red diodes.

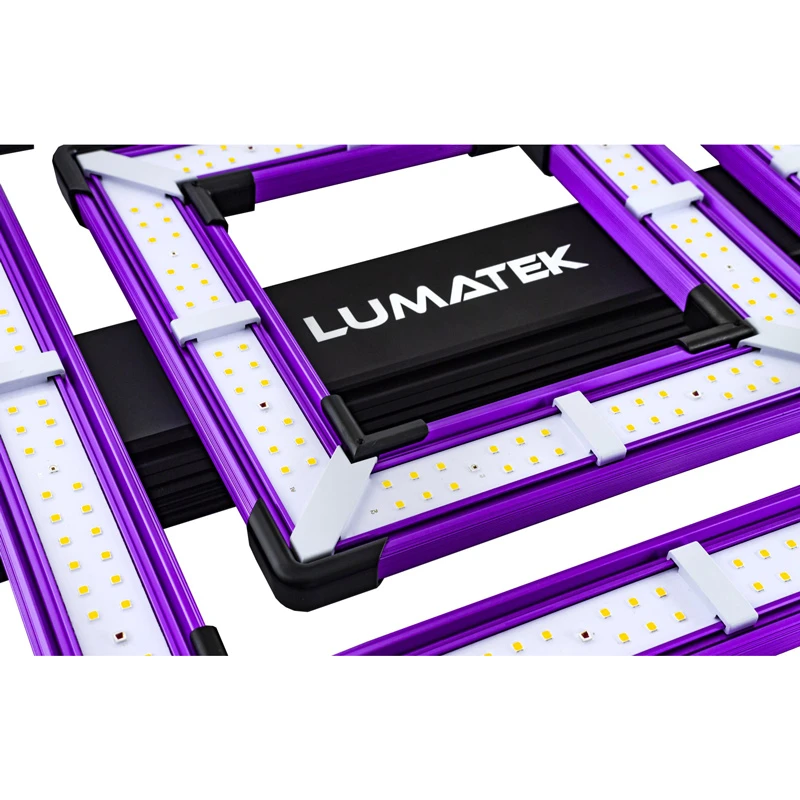

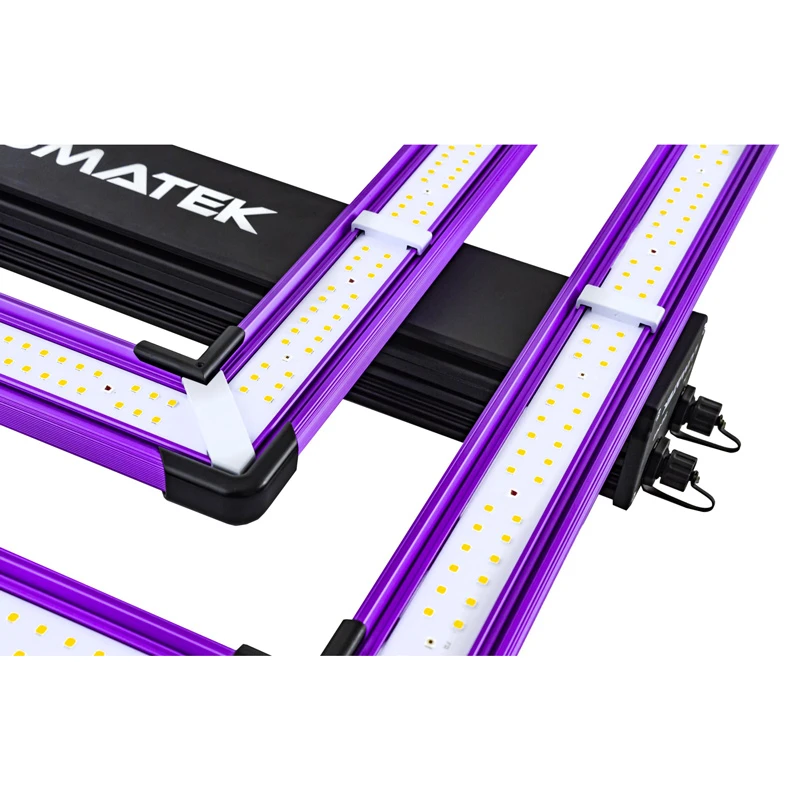

The upgraded diodes are now more evenly distributed along the entire length of the light bars, resulting in a larger and more uniform light spread and footprint.

Other new features of this line include: New IP65 protection rating; Protective cover technology with clear glue on the LED bars, resulting in 99% greater light transmission without light loss, longer diode life and greater corrosion resistance; and new control functionality with the Lumatek Control Panel Plus 2.0.

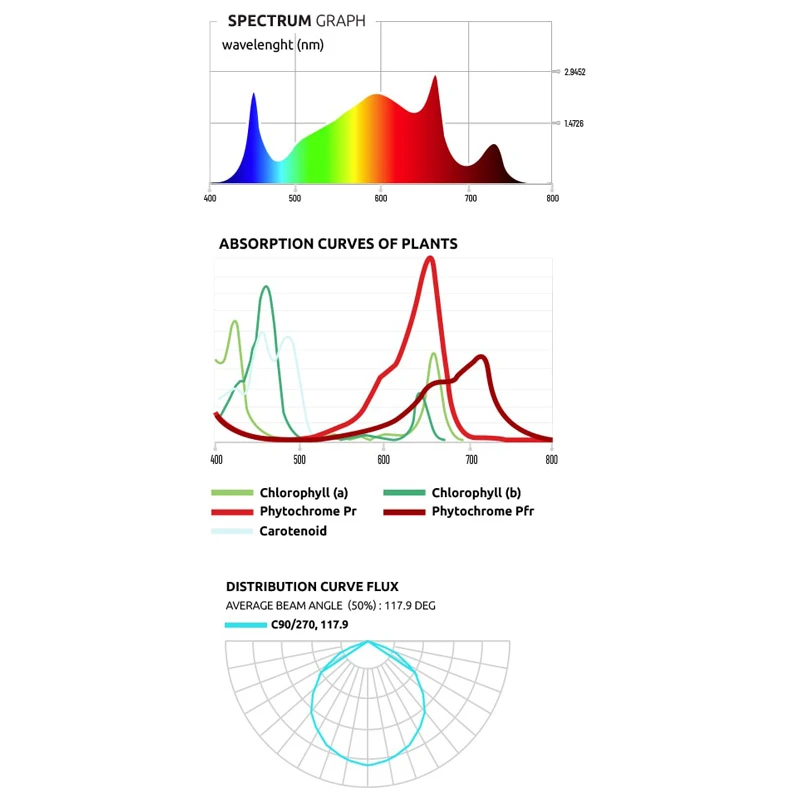

Full Spectrum
Lumatek's LED lighting solutions use a combination of white, deep red and far red LEDs to produce a high-efficiency light source calibrated to provide high intensity, stable and uniform output for optimal light absorption.

Previous generations of LED grow lights used a combination of blue and deep red LEDs to target chlorophyll absorption peaks. Although these solutions worked adequately, they lacked important spectrums for quality plant growth.

Passive cooling
Lumatek's innovative design and the advancement of LED technology have produced a high-power LED grow light with passive convection cooling. This fanless design means no moving parts, so Lumatek LED fixtures are extremely robust with a long lifetime and quiet operation.

External control

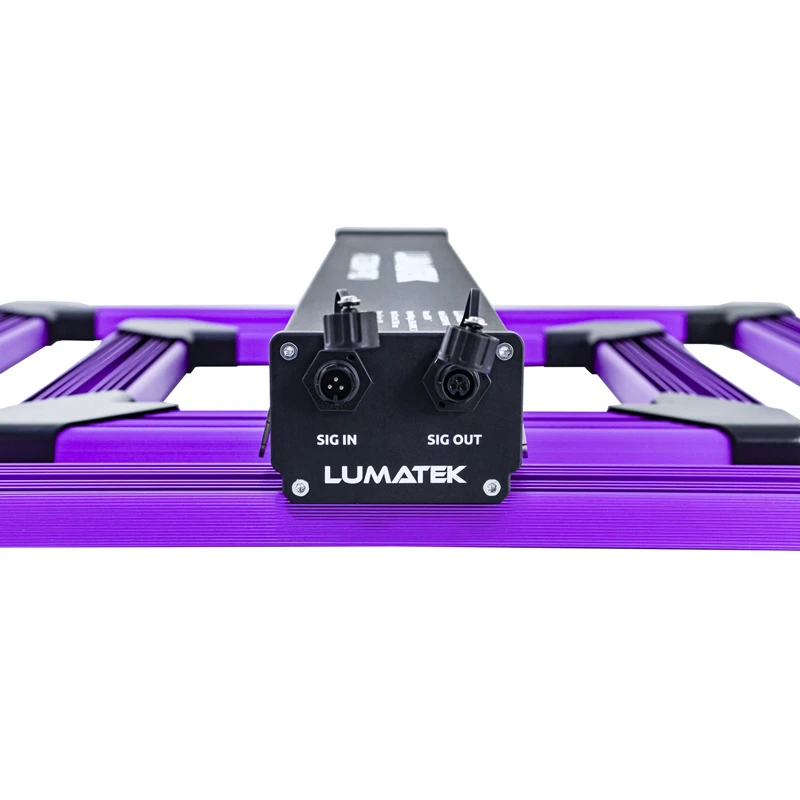

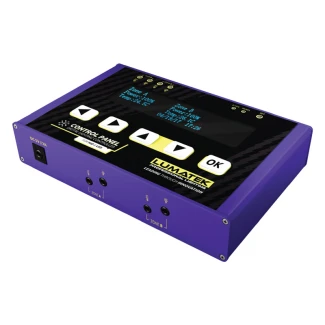

The ATS Pro fixtures can also be externally controlled with a Lumatek digital lighting controller ( Digital Panel Plus 2.0 ) with light timing, automatic dimming (1% increments), safety temperature control, sunrise and sunset mode for up to 100 fixtures per controller.

Technical specifications Attis 200W PRO Lumatek:

• Efficacy: 2.5 µmol / J
• PPF: 508 µmol / s
• Input voltage: 220-240 V
• Power consumption: 205 W
• Footprint: 0.8x0.8 m
• Service life: 60,000 hours
• Light distribution: 120°
• Light source: LUMLED diodes
• Dimmable: OFF-25%-50%-75%-100% with 0-10V light dimmer (included)
• Weight: 4 Kg
• Dimensions: 524.5x524.5x71.6mm
• Spectrum: Full Spectrum +
• BTU: 703 BTU/h

Items included in the package

• 1 x ATS200W Pro LED Fixture with driver
• 1 x 230V power cable
• 1 x 0-10V light dimmer + Velcro

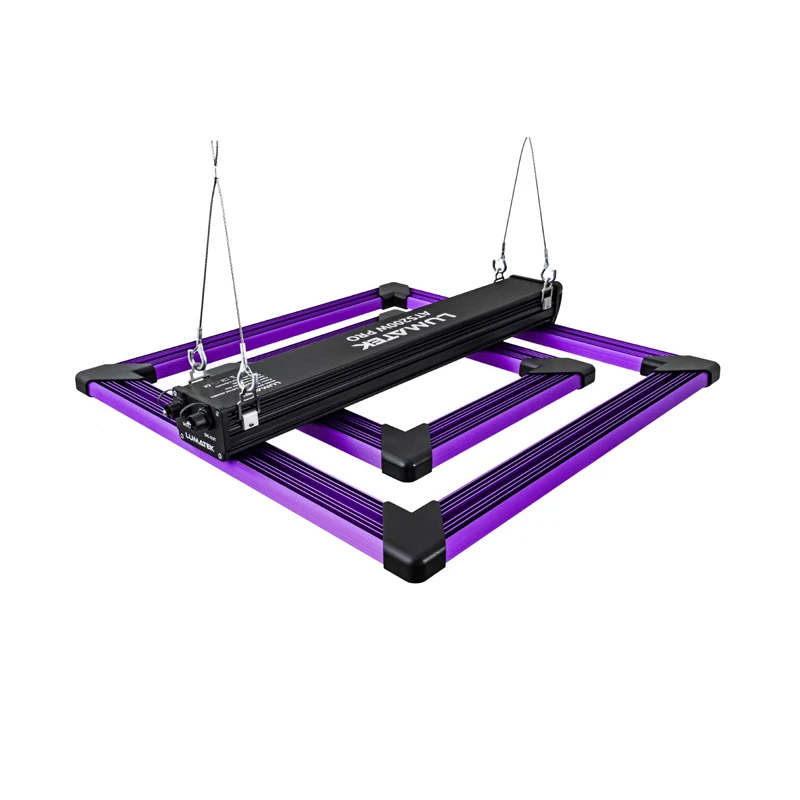

• 2 x Metal cable hook
• 1 x Manual

Key features Attis 200W PRO Lumatek:

• High efficiency 2.5 µmol/J
• High PPF output for 508 µmol/s at high intensity
• High-quality Lumatek LED driver
• New protection cover technology with transparent glue on LED bars
• Upper case LED
• Full balanced spectrum
• Improved light diffusion and uniformity
• External control with Lumatek Control Panel Plus 2.0
• Compact design ideal for a growing area of up to 0.8 mx 0.8 m
• Fully dimmable
• Easy Plug & Play installation
